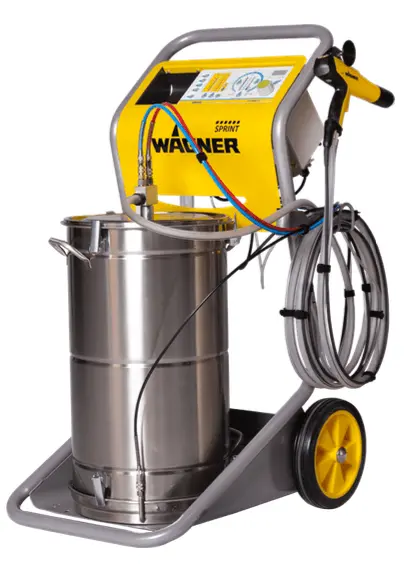

Wagner Prima Sprint Airfluid XE Spray System with Box Feed

Description

Wagner Prima Sprint Airfluid XE – Box Feed

Discontinued, replaced by the Wagner Sprint 2

Manufacturer: Wagner

Part Number: 2355402

Description: Sprint Airfluid XE – Box Feed

• The fixation of the suction tube allows for a quick and easy color change
• By mounting the small wheels, the manual system can be used and positioned in small places
• 50 coating recipes can be saved making it ideal for many color and object changes
• The unique Cascade characteristic line setting and the TRIBO compatibility offer a high level of flexibility for any powder

Parts & Accessories

• 2331976 – Wagner Spare Parts Starter Pkg. X1 Ext.
• 2320488 – Wagner X-1 Powder Gun Wedges
• 2322529 – Wagner Electrode Holder X1F
• 2322493 – Wagner Round Spray Nozzle Retrofit Package
• 264224 – Wagner 25 Liter Hopper for SPRINT Powder Coating Systems
• 264268 – Wagner 60 Liter Hopper
• 265401 – Wagner Sprint Fluid Crown
• 2303279 – Wagner Sprint, Guide Bushing for Injector Bracket
• 2305421 – Wagner Sprint, Injector Bracket, Nut
• 2322761 – Wagner PEM-X1 Hose Connector Assy D10-D12
• 2324123 – Wagner PEM-X1 SP Powder Tube
• 2324341 – Wagner PEM-X1 SP O-Ring Set
• 2307107 – Wagner Piston Vibrator, Complete
• POL-251 – Wagner, 6mm x 4mm Black Tubing  (replaces 9982079 sold by the foot – need 5′. Cut to match 1.3m/4’4″)
• 2334272 – Pressure regulator for Wagner Sprint and Sprint X control units, preset to 6 bar (87 psi)
• 241466 – Outer Nut / Cap Nut
• 2307117 – Injector Holder



INPUT VOLTAGE85 – 250 VINPUT POWER40 WINPUT FREQUENCY50 – 60 HzPROTECTION CLASSIP 64AIR INLET PRESSURE0,6 – 0,8 MPa, 6,0 – 8,0 bar, 87 – 116 PSIAIR INLET CONNECTIONG 1/4‘‘ iEXHAUST AIR FLOW0,05 – 20,0 Nm³/hOPERATING TEMPERATURE5 – 45 °C, 41.0 – 113.0 °FWEIGHT38,0 kg, 83.8 lb

Literature:

• BROCHURE
• POWDER COATING SYSTEMS
• CUT SHEET
• OPERATING MANUAL
