Wagner PEM-X1 R Electric Spray Gun

Description

Wagner PEM-X1 R Spray Gun

Manufacturer: Wagner

Part Number: 2335844

Description: The PEM-X1 manual powder gun combines balance, long service life and easy handling for high-quality surfaces. With only 490g, the PEM-X1 is the lightweight among the powder guns, and at the same time very robust. In combination with its ergonomic design, it enables fatigue-free working.

Feeatures:

• Weight
  At just 490g, the PEM-X1 is a lightweight in the powder spray gun range. Despite its low weight, the gun impresses with its robust design.
• Ergonomic design
  With only 490 g, the PEM-X1 is the lightweight among powder guns and at the same time very robust. In combination with its ergonomic design, it enables fatigue-free work.
• Easy handling
  The integrated remote control allows a quick adjustment of the powder quantity. A double click on the trigger allows a quick change to a special recipe. Even factory-set recipes can be assigned their own parameters.
• Excellent coating results
  The integrated high-power cascade keeps the high voltage stable even at 100 kV, thus enabling high coating performance. With the cascade characteristic curve adjustment, even hard-to-charge powder coatings can be coated efficiently. The integrated cascade cooling ensures a long service life and lasting performance. The replaceable protective wedge in the electrode holder reduces the cost of wearing parts.

OUTPUT VOLTAGE 100,0 kVAIR INLET PRESSURE 0,3 MPa, 3,0 bar, 44 PSIOPERATING TEMPERATURE 5 – 45 °C, 41.0 – 113.0 °FWEIGHT 0,5 kg, 1.1 lb

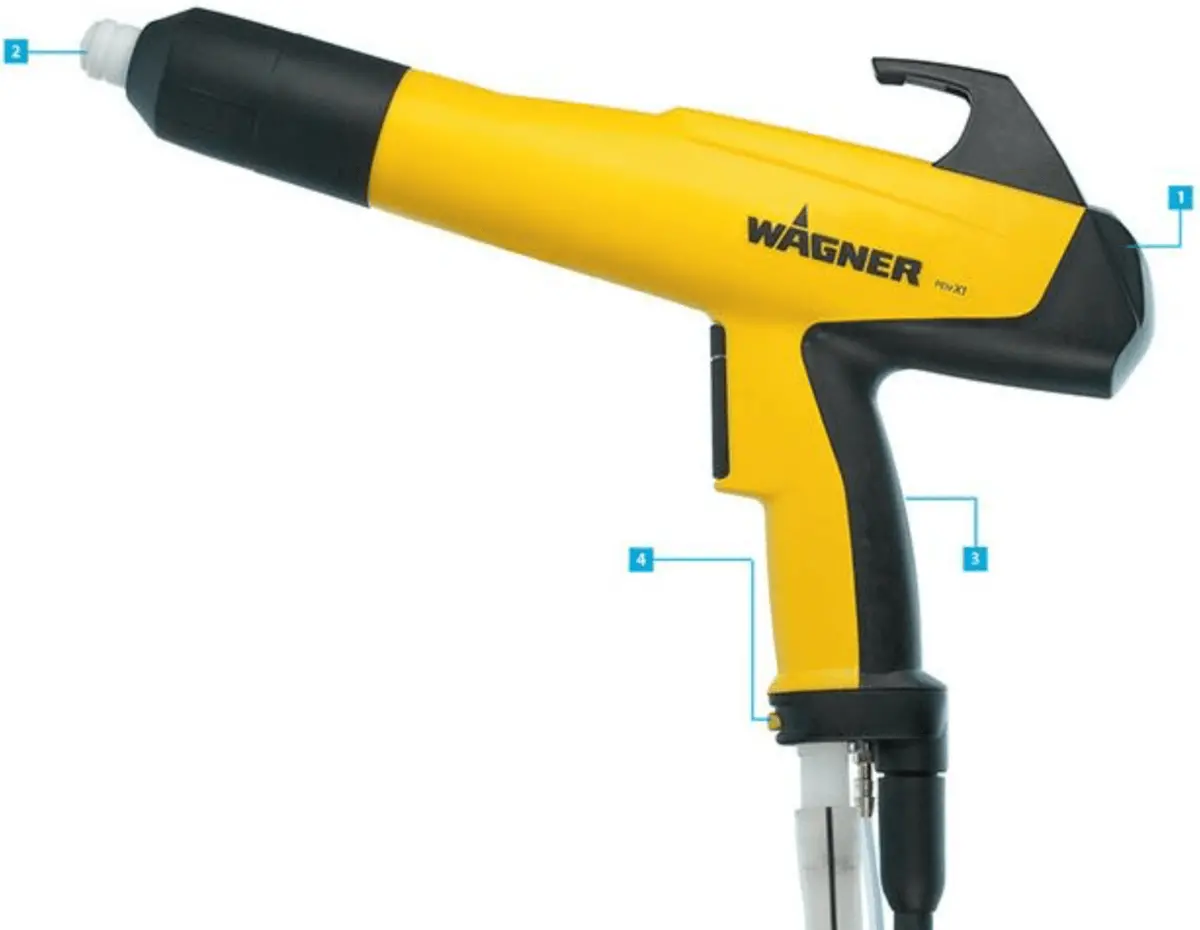

PEM-X1 Parts and Accessories:

Ref. No.	Part No.	Description
1	–	PEM-X1 Manual Powder Spray Gun
2	See Table Below	Hose take-up, complete
3	9971364	O-Ring
4	2320464	Union nut
5	See Table Below	Nozzle
6	See Table Below	Electrode holder
7	2320488	Replacement protective wedge
8	2320330	Gun hook
9	2316896	Screw
10	2324205	Wedge tool

Part No.	Description
2321976	Flat jet nozzle, X1, complete
2321981	Deflector cone, D18, complete
2321980	Deflector cone, D25, complete
2321171	Deflector cone, D34, complete
2322529	Electrode holder, X1 F ET (Flat)
2322490	Electrode holder, X1 R ET (Round)
2387104	Set of flat jet nozzles, X1 F5
2390036	Flat jet nozzle, X1 F5-X
2322761	Hose take-up, D10-D12, complete
2322768	Hose take-up, D8-D10, complete
2322868	CoronaStar, PEM-X1, complete
2324124	Wedge tool, X1 + 20 wedges

Nozzle Extensions:

Part No.	Description
2323366	Nozzle extension, X1 VL 150 (150 mm; 5.91 inches)
2323356	Nozzle extension, X1 VL 300 (300 mm; 11.81 inches)
2323338	Nozzle extension, X1 VL 500 (500 mm; 19.68 inches)
2324147	Flat jet nozzle, X1 VL EXT
2324148	Round jet nozzle, X1 VL EXT



Additional Accessories:

• 2331976 – Spare Parts Starter Pkg. X1 Ext.
• 2322493 – Wagner Round Spray Nozzle Retrofit Package
• 2324123 – Wagner PEM-X1 SP Powder Tube
• 2334341 – Wagner PEM-X1 SP O-Ring Set
• 2423223 – Non-Return Valve Assembly
