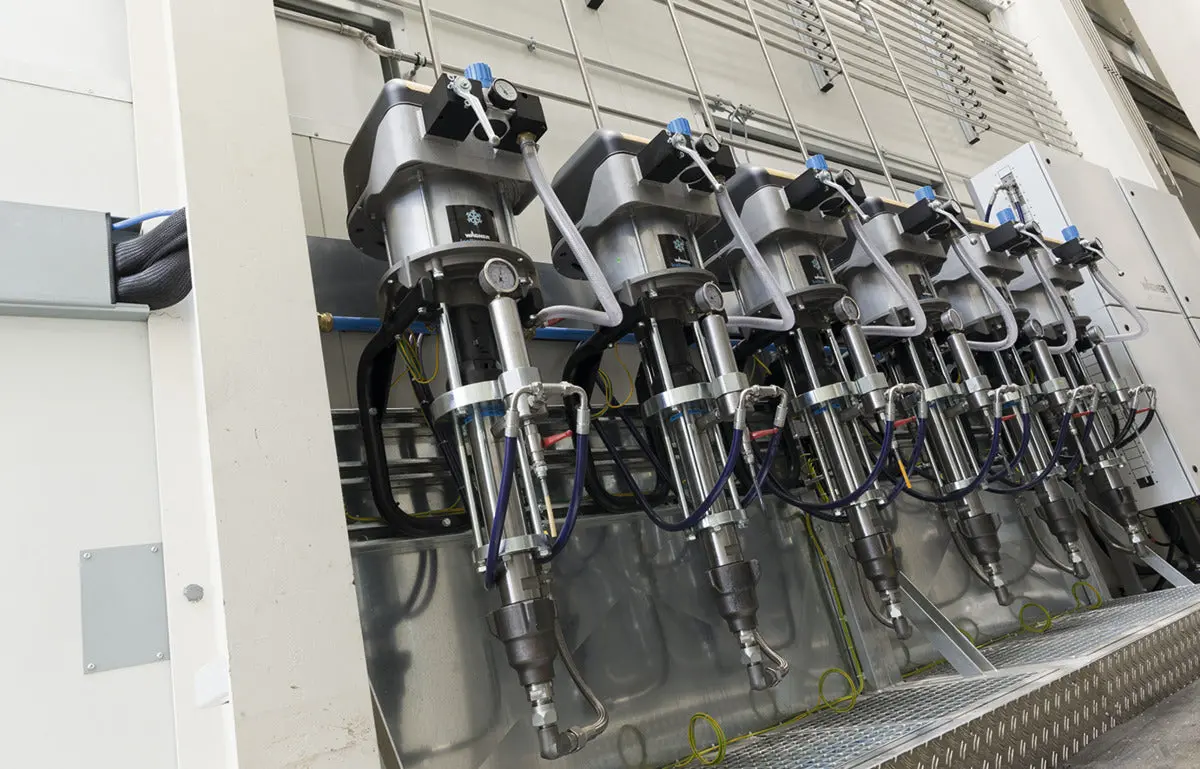

Piston Pump, Leopard, 35-150 PE/TG
Manufacturer: Wagner
Part Number: 2329484
Description: High pressure piston pump, stainless steel, for Airless and AirCoat applications up to 250 bar and 9 L/min. Ideal, for example, for industrial coating in the wood and metals industries and the use of multiple guns.
Features:
- Reliable –
A constantly uniform material flow with particularly low pulsation ensures optimum coating results. The intelligent design of the air motor reliably prevents power losses due to icing. - Easy handling –
All operating elements are ergonomically integrated in the compact maintenance unit. This ensures easy adjustment and operation of the pump. - Easy to maintain –
The easily accessible separating agent chamber, easy-to-replace packs, and the ability to disassemble the paint section for maintenance purposes independently of the air motor significantly reduce maintenance requirements and service times. - Flexible applications –
The paint section is completely made of stainless steel and is suitable for processing both solvent-based and water-based materials.
Specifications:
| Application Technique | Airless, AirCoat |
| Material Pressure (bar) | 0 bar – 250 bar |
| Volumetric Flow per Minute (l/min) | 9 l/min |
| Processable materials | Water-borne, Solvent-borne, Abrasive, sensitive to moisture |
| Air Inlet Pressure Range (bar) | 2.5 bar – 7.7 bar |
| Weight (kg) | 36 kg |
| Material Outlet Thread Type | M24x1,5 |
| Material Outlet Thread Sex | A |
| Application area | Metal coating, Protective Coating, Wood coating, Demolding and separating, Adhesive bonding |
| Material Wetted Parts | Stainless steel, Hard chrome, Carbide, PTFE, PE |
| Amount of guns (manual) | 0 – 8 |
| Compressed Air Connection Thread Type | G 1/2” |
| Compressed Air Connection Thread Sex | I |
| Sound level at 6 bar air pressure (dB(A)) | 78 dB(A) |
| Max. Allowed Inclination (°) | 10 ° |
| Transmission ratio (:1) (:1) | 35 :1 |
| Volumetric flow per double stroke (cm³) | 150 cm³ |
| Max. Stroke Rate (1/min) | 60 1/min |
| Material pH Range (pH) | 3.5 pH – 9 pH |
| Material Temperature Range (°C) | 5 °C – 80 °C |
| Product Type | High pressure piston pump |
| Certification | Complies with ATEX directive, Complies with CE directive |
Parts and Accessories:
| Part No. | Description |
| 2329024 | HP-filter DN10-PN270-SSt IceBreaker |
| 2329025 | HP-filter DN12-PN530-SSt IceBreaker |
| 2331752 | Return pipe DN6-G1/4″-100mm-PA |
| 2328611 | Set AirCoat regulator IceBreaker/Cobra |
| 2325916 | Trolley 6″ assy. |
| 2332145 | Wall holder 6″ assy. |
| 2323239 | Suction pipe assy. DN25 |
| 9984418 | HP-Hose-DN6-PN270-¼”NPS-10,0m-PA |
| 2329046 | Return hose DN6-G1/4″-PA |
| 2331017 | Circulation hose DN6-G1/4″-1.8-PA |
| 2331014 | Circulation hose DN6-G1/4″-2.8-PA |
| 2324116 | Suction hose DN25-SSt assy. |
| 2309706 | AC-Hose-DN4-PN270-1/4″NPS-7,5m-PA-T |
| 2312801 | AC-Hose-DN4-PN270-1/4″NPS-10,0m-PA-T |
| 2309634 | AC-Hose-DN4-PN270-1/4″NPS-15,0m-PA-T |
| 2309635 | AC-Hose-DN4-PN270-1/4″NPS-20,0m-PA-T |
