Sale!
Ultratech Ultra-Drain Guard® - Economy Frame Model 1
Ultratech Ultra-Drain Guard® - Economy Frame Model 2
Ultratech Ultra-Drain Guard® - Economy Frame Model 3
Ultratech Ultra-Drain Guard® - Economy Frame Model 4
Ultratech Ultra-Drain Guard® - Economy Frame Model 5
Ultratech Ultra-Drain Guard® - Economy Frame Model 6

Ultratech Ultra-Drain Guard Economy Frame Version

Price range: $24.00 through $83.00

Quantity
SKU: N/A Category: Brand:

Description

UltraTech Ultra-Drain Guard® – Economy Frame Model

Manufacturer: UltraTech

Part Number: 8935, 8936, 8938, 8920, 8921

Description: There are many different models of Ultra-Drain Guards most of which are held in place by the weight of the grating.

Pinching the fabric of the Ultra-Drain Guard between the grating and the catch basin’s opening is very effective. However, the excess material that is left is not always desirable.

That material can be trimmed but for those who would like a clean/unnoticeable/trim-free installation, the Ultra-Drain Guard, Economy Frame Model is a great solution! Added bonus? It stays put, even when the grating is removed.

Custom sizes available, call for quote.

Product Highlights:

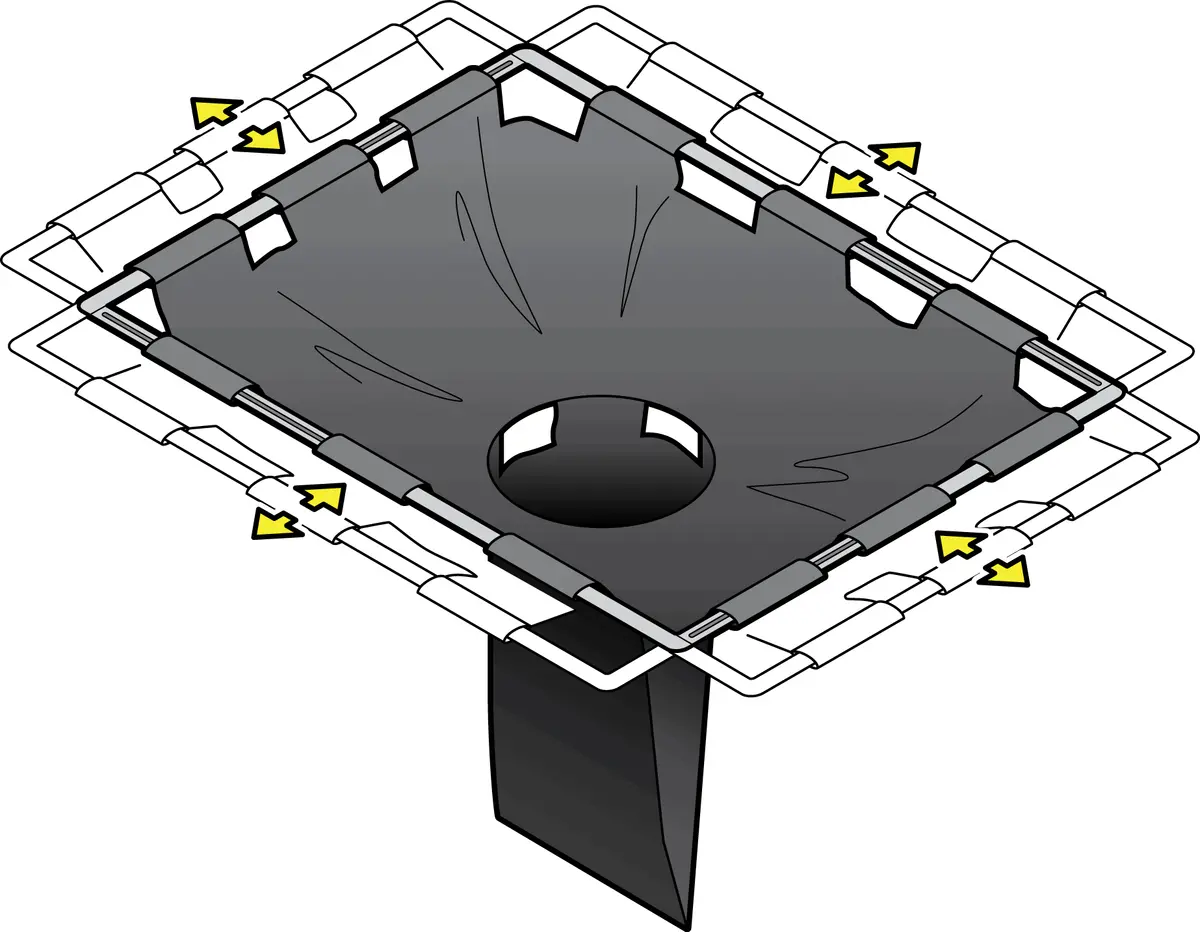

  • Metal frame quickly adjusts to fit most drains – keeps the Ultra-Drain Guard in place, even when grating is removed.
  • Removes up to 0.5 gallons of hydrocarbons as well as dirt, sand, and other contaminants.
  • Adjustable catch basin insert quickly re-sizes to fit almost any storm drain – no trimming of excess fabric required.
  • Quick and clean installation – no measuring or trimming required.
  • Available with or without overflow port.
Part No. Model Quantity Dimensions in. Weight Capacity UDL lbs. Containment Capacity gal. Weight lbs.
Square/Rectangle Models
8935 With Overflow Port 1 Min.: 16 x 20 x 18
Max: 28 x 36 x 18 		 Up to 40 lbs. of Sediment Up to 0.5 gal of Oil 2.6
8936 With Overflow Port 10 Min.: 16 x 20 x 18
Max: 28 x 36 x 18		 Up to 40 lbs. of Sediment Up to 0.5 gal of Oil 26
8938 Without Overflow Port 10 Min.: 16 x 20 x 18
Max: 28 x 36 x 18		 Up to 40 lbs. of Sediment Up to 0.5 gal of Oil 26
Round Models
8920 Economy Frame 1 Min: 22 x 22 x 14
Max: 25 x 25 x 14		 Up to 40 lbs. of Sediment Up to 0.5 gal of Oil 1
8921 Economy Frame 1 Min: 25 x 25 x 14
Max: 29 x 29 x 14		 Up to 40 lbs. of Sediment Up to 0.5 gal of Oil 2

Literature:

  • Info:
    • Installation and Maintenance
    • Specifications
    • Flyer

  • DOT Approvals:

    • Washington Dept. of Transportation – Letter
    • Idaho Transportation Department – Letter
    • Oregon Dept. of Transportation – Letter
    • Utah Dept. of Transportation – Letter
