Description

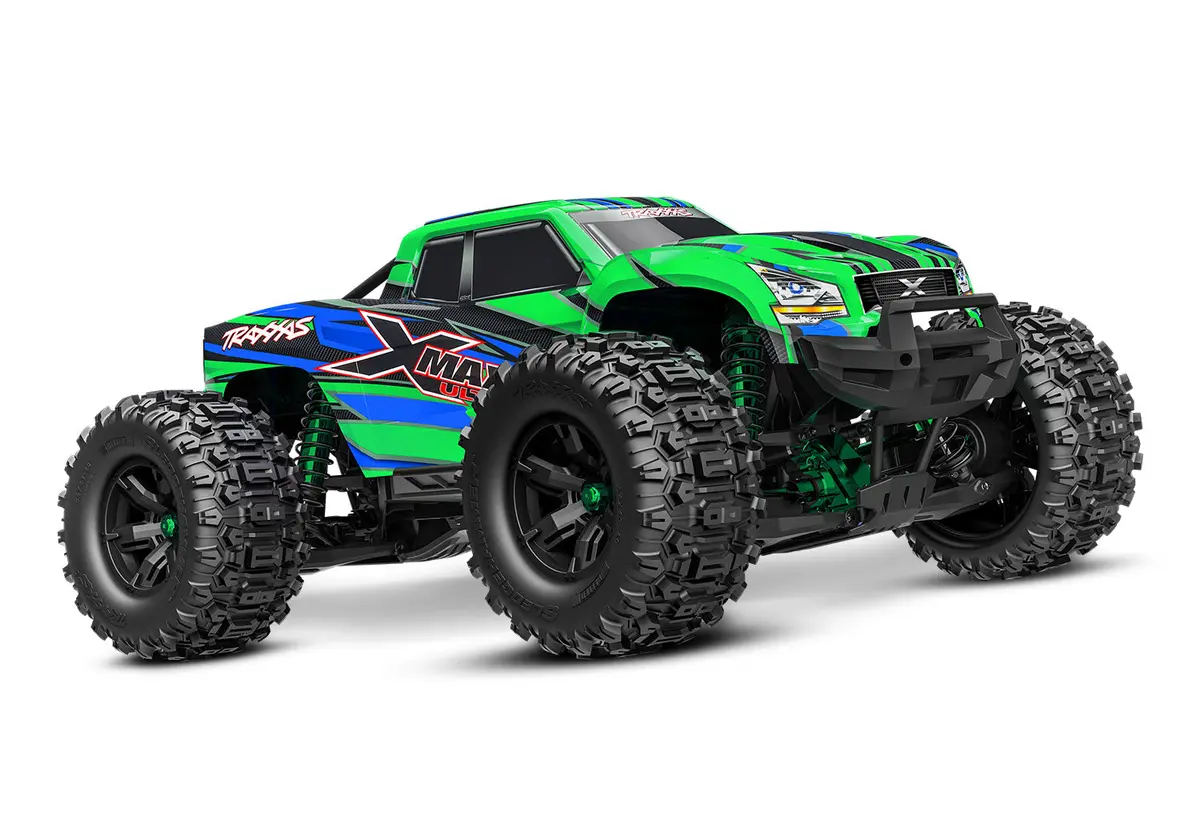

X-Maxx Ultimate

MODEL SPECS

Model Name:	X-Maxx Ultimate
Model Type:	Monster Truck
Top Speed:	50+ mph with two 4s LiPo batteries and optional speed gear (sold separately)
Skill Level:	6
Scale:	X-Truck®
Weight:	22.20 pounds (9.5 kg)
Length:	30.67 inches (779 mm)
Width:	21.3 inches (540 mm)
Track:	21.3 inches (540 mm)
Height:	13.99 inches (355 mm)

Wheelbase:	18.92 inches (480 mm)
Center Ground Clearance:	4.2 inches (107 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Ratio (Internal):	8.11 (stock, out-of-box)
Gear Pitch:	1.0 metric pitch (Mod 1)
Steering Servo:	2085RL metal gear ultra-high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with wireless module
Battery Compartment Specs:	197 mm X 52 mm X 44 mm

MOTOR SPECS

Motor Name:	Velineon® 1200XL
Motor Type:	1275 Kv sensorless brushless
Motor Weight:	23.44 ounces (665 g)
Motor Length:	4.32 inches (110 mm)
Motor Diameter:	1.88 inches (48 mm)
Motor Shaft Size:	5 mm
Motor Connector Type:	6.5 mm bullet connectors

ESC SPECS

ESC Name:	Velineon® VXL-8s™
ESC Type:	Brushless
ESC Case Size:	2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight:	7.60 ounces (215.5 g)
Motor Connectors:	6.5 mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors
ESC Power Wire:	10 gauge Maxx® Cable

• High Performance Aluminum Upgrades
• 6061-T6 aluminum C-hubs
• 6061-T6 aluminum steering blocks
• 6061-T6 aluminum rear hub carriers
• 6061-T6 aluminum differential housings
• 6061-T6 aluminum motor mounts
• VXL-8s™ Waterproof Electronic Speed Control
• 8s LiPo compatible
• Built-in cooling fan
• Machined heat sinks
• 10-gauge silicone wire
• Integrated protection circuits
• LED status lights
• Velineon^® 1200XL Brushless Motor
• 4-pole 1275 Kv
• 5 mm output shaft
• Aluminum slip-on heat sink
• Dual motor cooling fans
• 50+ MPH with Two 4s LiPo Batteries and Optional Gearing (sold separately)
• Traxxas Stability Management^® (TSM)
• Helps prevents spinouts and loss of control
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4 GHz 2-Channel Radio System with Wireless Module
• Factory-installed telemetry sensors
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Clipless Body Mount System
• Quick one-handed installation and removal
• Uses pivoting rear latch mechanism
• Eliminates body posts and clips
• Reinforced for extra protection

• 8s Drivetrain
• Machined, hardened steel pinion and spur gear
• Full-time shaft-driven 4-wheel drive
• Heavy-duty steel CV driveshafts with laser etching
• Beefed-up steel differential output cups
• Splined aluminum center driveshaft
• Machined aluminum stub axles
• Torque-Biasing Center Drive™ absorbs shocks and distributes power
• 24 mm splined wheel hexes
• Sealed, silicone fluid-filled diffs with large module ring and pinion gears
• Fixed Motor Mounting System
• Rigid aluminum motor mounts
• Preset gear mesh adjustments
• No manual adjustments required
• Motor retention separate from gear mesh
• Heavy-Duty Modular Composite Chassis
• Interlocking front and rear bulkheads
• Motor mounts to rear bulkhead to eliminate gear crunching flex
• Easy to service and access components
• Driveline is sealed in the chassis to keep out dirt and grit
• Snap-Lock Battery Retention System
• No body clips or hook and loop straps
• Battery hold-downs pivot for easy access
• Adjustable for battery size
• More secure than conventional retention systems
• Integrated into chassis top brace for improved battery tray and chassis stiffness
• Bumpers
• Front energy absorbing rubber impact bumper
• Lower front and rear skids for impact and abrasion resistance
• Integrated nerf bars for side impact resistance

• Steering
• 6061-T6 aluminum steering bellcranks
• 2085RL high-output metal-gear steering servo
• 650 oz-in torque at 6.0 volts
• 0.13 sec/60° at 6.0 volts
• Double-shear aluminum servo horn
• Heavy-duty servo saver spring

Suspension

• TUBES 7075-T6 Aluminum front toe links
• All critical suspension points have double shear strength
• High strength steel suspension pins used throughout
• Suspension pins retainers won’t come loose or “back-out”
• C-hub and steering block geometry maximizes steering angle
• Adjustable roll center
• Steel upper and lower tie bars
• Full contact sealed bearings used in exposed locations

Aluminum GTX™ Shocks

• Machined aluminum threaded body
• Extra-large bore and capacity
• Ultra-smooth TiN-coated 5.2 mm damper shafts
• Lower seal cartridge includes integrated wiper seal combination
• Adjustable aluminum upper spring retainer
• Aluminum shock caps with pivot balls
• Fixed shock locations
• Lower spring perches bolted on

Wheels/Tires

• Massive 8.4″ Sledgehammer^® belted tires
• Virtually eliminates ballooning at high speeds
• Open tread block design
• 2-piece foam insert
• High-strength glue and bead design
• Large, dual-diameter wheels

MODEL 77097-4: X-Maxx^® Ultimate: fully assembled, Ready-To-Race^®, with TQi™ 2.4 GHz radio system, VXL-8s™ brushless power system, and ProGraphix^® clipless body.

What’s In The Box:

• X-Maxx Ultimate, Ready-To-Race model with Traxxas Big Block™ brushless motor
• VXL-8s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi 2.4 GHz radio system with factory-installed wireless module
• High quality maintenance tools

What You’ll Need:

• Batteries

  Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4s Completer Pack (part 2997).

• Charger

  4s LiPo Balance Charger with iD^®

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.
