Description

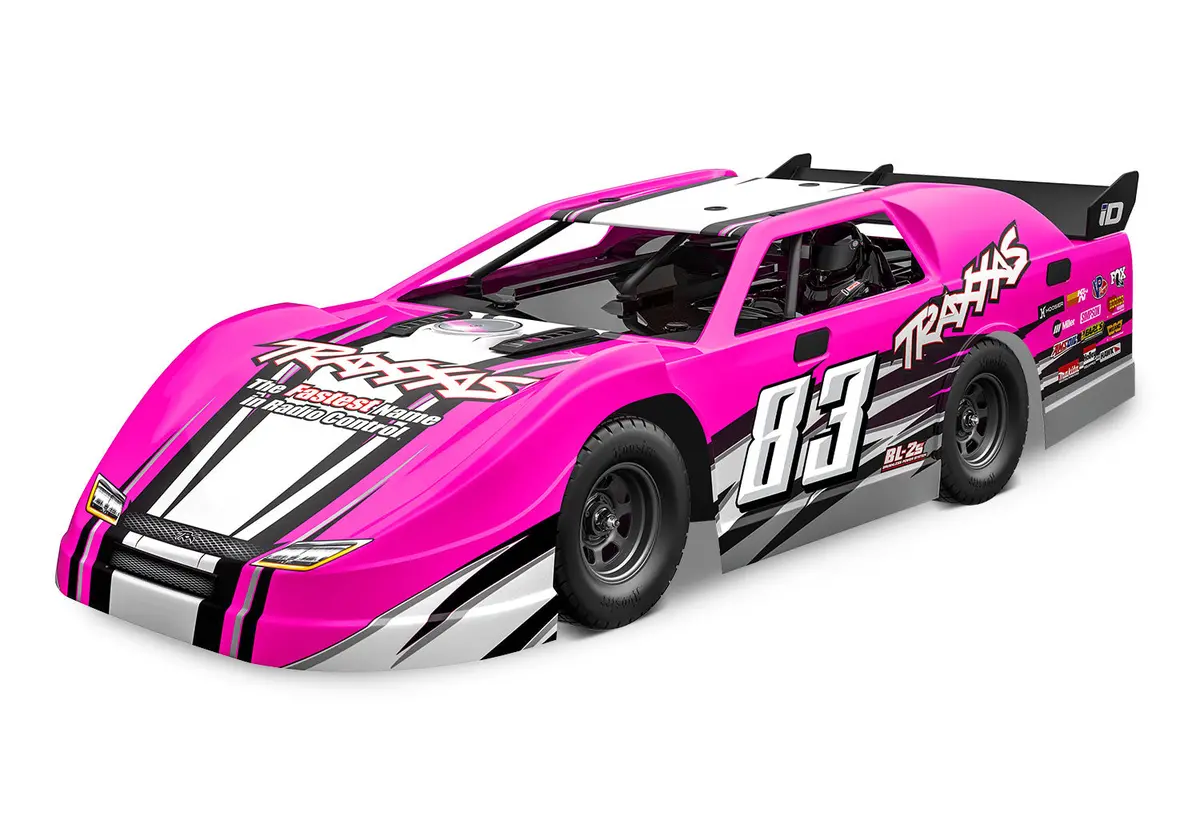

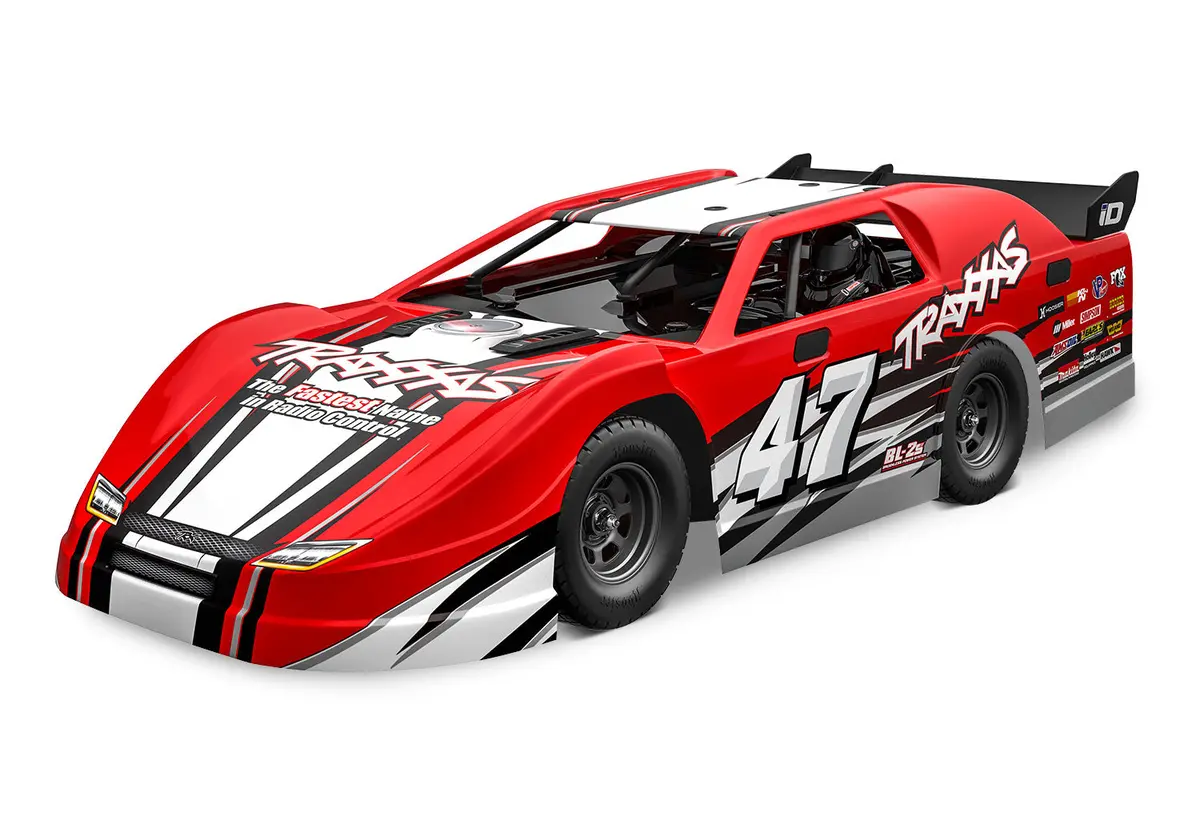

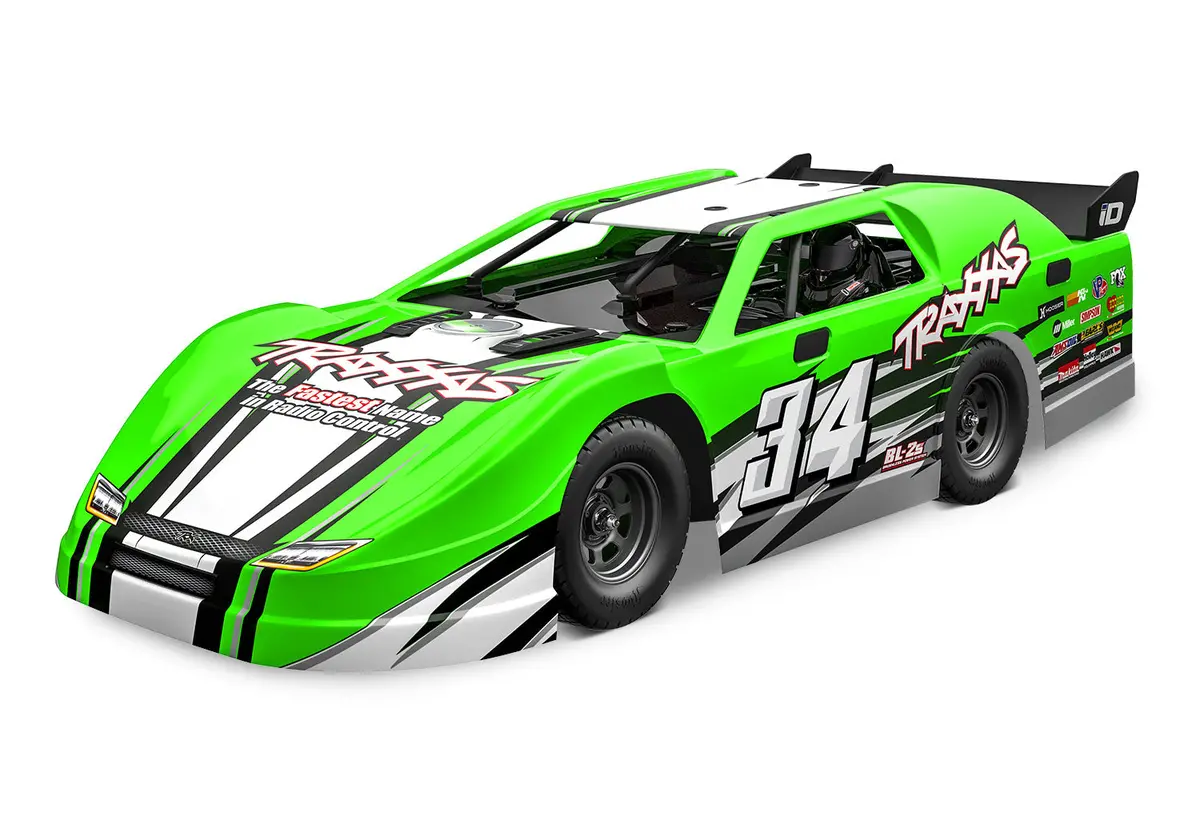

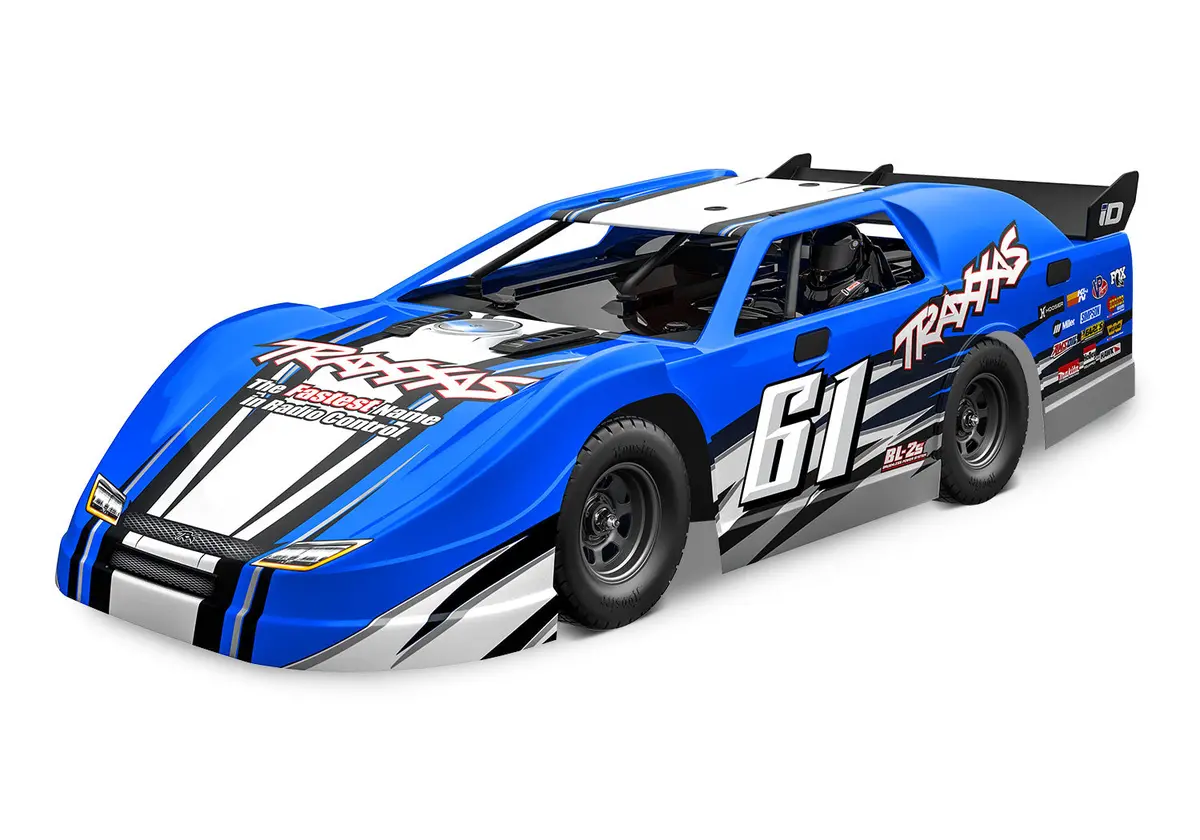

Slash Late Model BL-2s

MODEL SPECS

Model Name:	Slash Late Model BL-2s
Model Type:	Short Course Trucks
Model Speed:	35+
Model Skill Level:	1
Scale:	1/10
Weight:	5.62 pounds (2.55 kg)
Length:	25.8 inches (656 mm)
Width:	12.3 inches (313 mm)
Front Track:	12.3 inches (313 mm)
Rear Track:	12.3 inches (313 mm)
Height:	8.52 inches (216 mm)

Wheelbase:	12.3 inches (333 mm)
Center Ground Clearance:	1.38 inches (35 mm)
Drivetrain:	2WD
Transmission:	Magnum 272R™
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Ratio (Internal):	9.10:1
Gear Pitch:	48 pitch
Servo(s):	2075 digital high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs:	165 mm X 50 mm X 23 mm, 25 mm

MOTOR SPECS

Motor Name:	BL-2s 3300 Kv
Motor Type:	Sensorless brushless
Motor Weight:	7.51 ounces (213 g)
Motor Length:	3.15 inches (80 mm)
Motor Diameter:	1.42 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Traxxas Quick Connect Motor Plug

ESC SPECS

ESC Name:	BL-2s Electronic Speed Control
ESC Type:	Brushless
ESC Case Size:	1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
ESC Weight:	3.07 ounces (87 g)
Motor Connectors:	Traxxas Quick Connect Motor Plug
Battery Connectors:	Traxxas High-Current Connector

• Clipless Late Model Race Body
• Tough front and rear tube-style bumpers
• Body reinforcements to prevent pull-through damage
• Roll cage with molded driver figure
• Holds tight for intense action
• Quick and easy removal
• Smooth appearance with no body posts or clips
• Full-width molded rear wing
• Extreme Heavy Duty Upgrade Parts Installed
• Strengthened C-hubs, axle carriers, and steering blocks
• Extreme heavy duty driveshafts
• BL-2s™ Waterproof Electronic Speed Control
• Heat sink accepts accessory cooling fan
• Three programmable drive profiles
• Sport Mode – forward / brake / reverse
• Race Mode – forward / brake
• Training Mode™ – 50% forward / brake / 50% reverse (patented)
• Traxxas EZ-Set^® one-button setup
• LiPo and NiMH compatible with two-stage low-voltage detection
• NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
• LiPo battery packs: 2 cells (7.4 volts)

• 3300 Kv Brushless Motor
• Integrated cooling fan
• Low-maintenance design
• Efficient ball bearings
• 3300 Kv
• TQ™ 2.4 GHz 2-Channel radio system
• Ergonomic transmitter with internal antenna
• Traxxas 6519 3-channel micro receiver with fail-safe security
• Magnum 272R™ Transmission
• Heavy-duty low-CG case
• Thick 3.2 mm aluminum motor plate
• Case supported bearings
• Fixed gear mesh
• High-strength steel gears
• Sealed bevel-gear differential
• Easy differential access
• Steering
• Chassis-mounted 2075 servo
• Dual bellcrank design with integrated servo saver

• Low-CG Chassis
• Modular composite tub design
• Secure battery hold-down latch
• Side nerf bars for impact resistance
• Suspension
• Heavy duty suspension arms
• 4 mm adjustable steel turnbuckles
• Captured links won’t pop off
• Aluminum PTFE-coated GTR Shocks
• Titanium nitride coated shafts
• 70% more oil capacity than standard Ultra Shocks
• Threaded bodies with adjustable spring collars
• Drivetrain
• Torque Control™ slipper clutch
• Wheels and Tires
• Graphite gray “steelie” dirt oval wheels
• 2.2″ outer diameter, 3″ inner diameter
• Licensed Hoosier^® Angle Block racing tires
• Wide tread blocks for consistent and predictable performance
• Rubber Sealed Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

MODEL 104354-74: Slash Late Model: 1/10 2WD dirt oval race car, fully-assembled, waterproof electronics, Ready-To-Race^®, with TQ™ 2.4 GHz 2-channel radio system, BL-2s™ brushless power system, and clipless painted body.

What’s In The Box:

• Slash Late Model with BL-2s ESC and 3300 Kv motor
• Quick Start Guide
• TQ™ 2.4 GHz radio system
• High quality maintenance tools
• Decal sheets with livery numbers

What You’ll Need:

• Batteries

  Slash Late Model requires a single NiMH or LiPo battery.

• Charger

  Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance.

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.
