Description

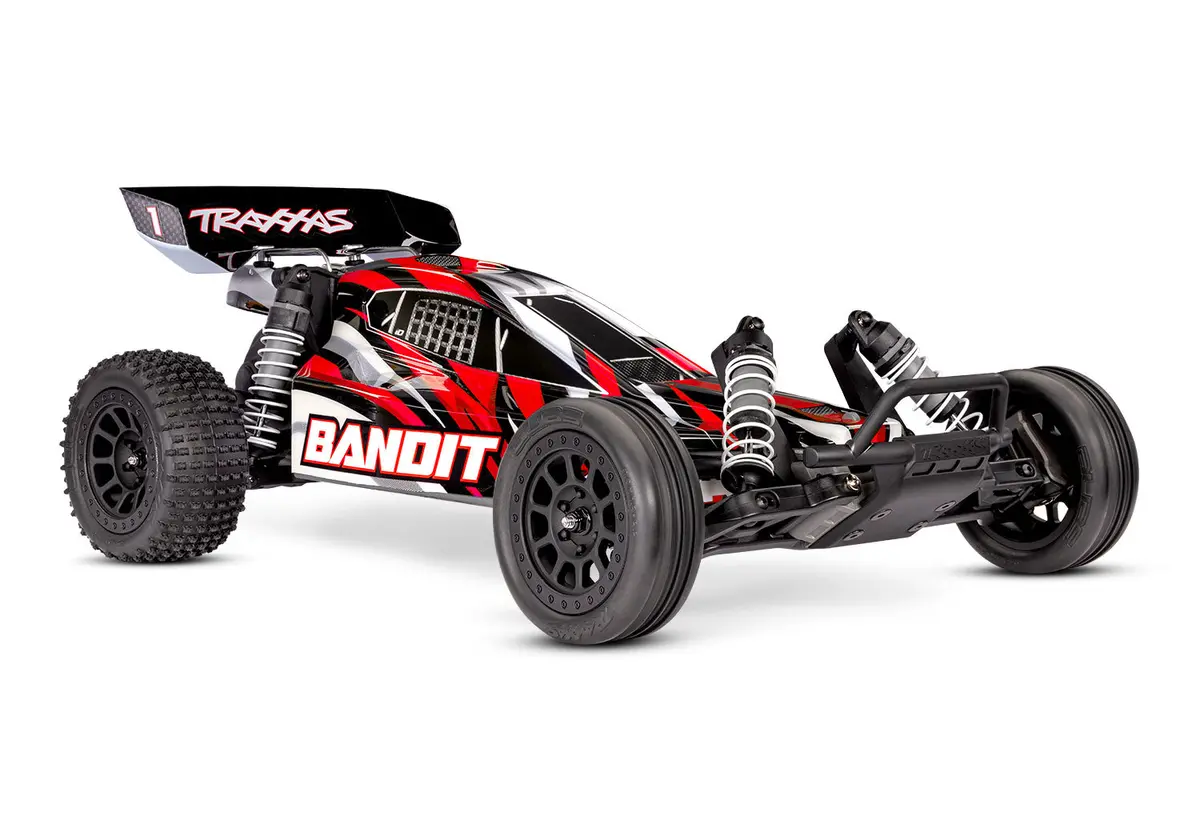

Bandit XL-5 with Battery
MODEL SPECS
| Name: | Bandit HD w/USB-C |
|---|---|
| Type: | Buggy |
| Speed: | 35+ mph with 7-cell battery |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 3 pounds (1.36 kg) |
| Length: | 16.25 inches (413 mm) |
| Width: | 9.84 inches (250 mm) |
| Front Track: | 9.84 inches (250 mm) |
| Rear Track: | 9.84 inches (250 mm) |
| Height: | 7 inches (178 mm) |
| Wheelbase: | 11.25 inches (286 mm) |
|---|---|
| Driveline: | 2WD |
| Transmission: | Magnum 272™ |
| Differential Type: | Planetary steel gear |
| Gear Ratio (Internal): | 2.72 (final drive: 12.34) |
| Gear Pitch: | 48 pitch |
| Steering Servo: | 2056 high-torque waterproof |
| Radio System: | TQ™ 2.4 GHz 2-channel radio |
| Battery Compartment Specs: | 164 mm X 46 mm X 26 mm |
MOTOR SPECS
| Name: | Titan® 12T 550 |
|---|---|
| Type: | High-speed brushed motor |
| Weight: | 8.47 ounces (240 g) |
| Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |
ESC SPECS
| Name: | Waterproof XL-5 ESC with low-voltage detection |
|---|---|
| Type: | Brushed |
| Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm) |
| Weight: | 2.44 ounces (69 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 14 gauge |
