Tank-Style Regenerative Desiccant Dryers

Description

Pure Regenerative Dryers – Tank Dryers

Manufacturer: Tsunami

Part Number:  21999-1105-T, 21999-1105-T-MM, 21999-0955, 21999-0955-220, 21999-0955-PP

The newest line to Tsunami Compressed Air Solutions, Pure Series Regenerative Dryers provides the same high-quality air as the Ultra Dryer line at a reduced cost. The Pure 5 and Pure 10 systems utilize a simple control system and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer. The Pure 5 and Pure 10 both perform to achieve dew points down to -80°F and relative humidity down to .01% RH.

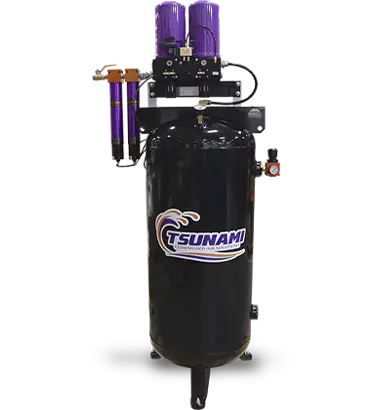

The Pure Series Tank-Mounted dryers come as a complete package with tank attachments to support air flow. The Pure-5T comes with a 1-gallon tank to maximize laminar airflow and the Pure-10T sits atop a 60-gallon storage tank to increase shop capacity

Pure-5T: The Pure-5 Series Regenerative Dryer is rated for 15 CFM airflow, and fitted for 5 Hp compressors. The Pure-5 system uses a Solenoid Timer Valve to control the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.

Pure-10T: The Pure-10 Series Regenerative Dryer is rated for 40 CFM airflow, and fitted for 10 Hp compressors. The Pure-10 system uses a Solenoid Timer Valve to control the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.

Key features

• 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
• Molecular Sieve Desiccant
• Solenoid Valve Timer
• Automatic Drains
• Purge Exhaust Mufflers
• Wall Mounting Brackets
• Outlet Regulator
• Heater pads available for cold temp applications

Key Benefits

• Low relative humidity – down to .01% RH
• Dew points down to -80°F
• Easy. low-cost maintenance – under $100/ year average

Part Number	21999-1105-T	21999-1105-T-MM	21999-0955	21999-0905-220	21999-0905-PP
Horsepower	5	5	10	10	10
Max CFM:	17	17	40	40	40
Port Size (NPT):	1/4″ Inlet 1/2″ Outlet	1/4″ Inlet 1/2″ Outlet	1/2 NPT	1/2 NPT	1/2 NPT
Drain:	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Max PSI:	175 PSI	175 PSI	175 PSI	175 PSI	175 PSI
Max Temp:	150 Degrees F	150 Degrees F	150 Degrees F	150 Degrees F	150 Degrees F
Dimensions:	26″ X 18″ X 12″	26″ X 18″ X 12″	26″ X 18″ X 12″	26″ X 18″ X 12″	26″ X 18″ X 12″

Site Navigation –

Tank-Mounted Dryers

Mobile/Portable Dryers

Literature –

Spare Parts –

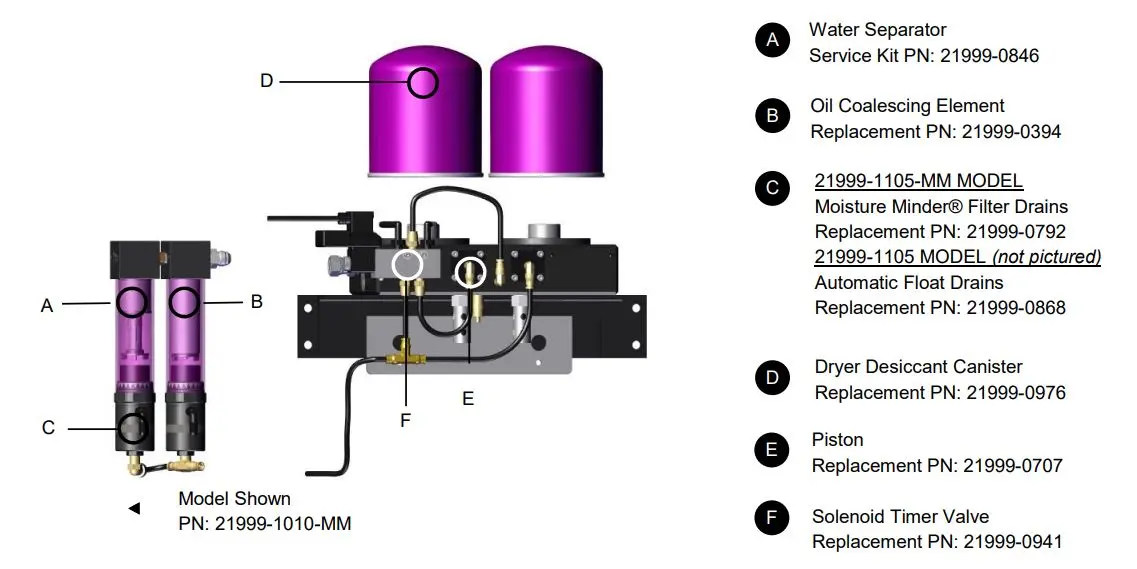

Part	Part Number	Description
A	21999-0707	Piston Replacement Kit for Regenerative Dryers
B	21999-0976	Tsunami Tower Replacement Pure 1, 3, 5
B	21999-0976-BK	Tsunami Tower Replacement Pure 1, 3, 5 – Black
B	21999-0349	Tsunami Tower Replacement Pure 7, 10, 20, 30 & Ultra Dryers
B	21999-0349-BK	Tsunami Tower Replacement Pure 7, 10, 20, 30 & Ultra Dryers Black
C	21999-0672-10	PLC Controller -10 HP Regenerative Dryer
C	21999-0672	PLC Controller -15 HP+ Tsunami Regenerative Dryer
C	21999-0672-BK	Custom Dryer PLC – No Drains
	21999-0951	Pneumatic Timer Control – Two Outputs
	21999-0714	PLC Power Supply for Tsunami Regenerative Dryer
	21999-0941	Tsunami Timer Valve Assembly
	21999-0797	Tsunami Air Valve Replacement
	21999-0504	12v DC Timer / Coil Assembly
	21999-1012-24	24v DC Timer / Coil Assembly
	610928-01	110v AC Timer / Coil Assembly
	610934-01	220v / 230v AC Timer / Coil Assembly
	21999-0650	Tower Mounting Stud / Dryer Regen. Valve – Pure 7, 10, and Ultra Series Dryers
	21999-1108	Tower Mounting Stud / Dryer Regen. Valve – Pure 1, 3, & 5 Series Dryers
	940825	Muffler Replacement – Pure 1, 3, 5, 7, Only
	21999-0700	Muffler Replacement – Pure 10 and Ultra Series
	21999-1046	Muffler Core Replacement (10pc Minimum Order Quantity – Pure-10 & Ultra Dryers Only)
	21999-1042	Tsunami Dryer Heater 110/120v AC, 700W
	21999-0890	Tsunami Dryer Heater 12v DC, 120W
	21999-0937	Tsunami Dryer Heater 24v DC, 120W
	21999-0712	Energy Saver Kit (Ultra dryer accessory only)
	21999-1038	Modular Dryer Subassembly Replacement – Ultra / Pure-10-20-30
