Description

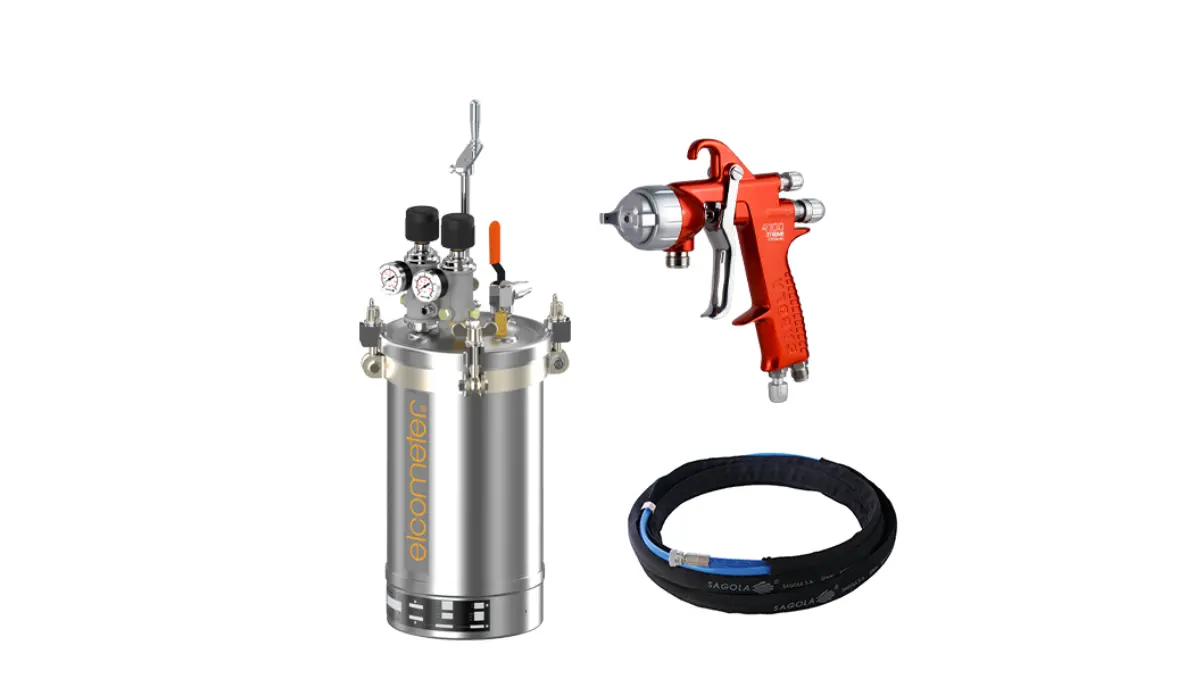

P10T Stainless Steel Pressure Pot with Manual Agitator; 10L (2.64 US Gal)
Manufacturer: Sagola
Part Number: PP10T-MA
Description: The Sagola P10T Pressure Tank has a 10 Litre (2.64 US Gal) tank capacity and is suitable for solvent and water-based paints. The dual air regulator with discharge valve, regulates spray gun and pot pressure independently. All P10T Pressure Pots are supplied complete with: Manual Agitator & 5m (16.4 ft) Combined Anti-Static Air & Nylon Product Hose with Protective Cover for Air Spray (Low Pressure) Systems.
- Suitable for solvent and water-based paints.
- Safety compliant to International Standards.
- Body and lid in stainless Steel.
- Top outlet connection.
- Dual air regulator with discharge valve, to regulate spray gun and pot pressure independently.
- Ideal for use with two spray guns.
- Optional stainless steel reusable pressure pot liner.
- Manual mixer.
- Optional single use disposable liners available for 10L (2.64 US Gal) Pressure Pots. In packs of 10.
| Specifications: |
| Tank Capacity | 10l (2.64 US Gal) |
| Agitator Type | None |
| Product Outlet Position | Top |
| Construction Material | Stainless Steel Body & Lid |
| Working Pressure (Max) | 4bar (58psi) |
| Air Inlet Connection | 6.35mm (1/4”) BSP Male |
| Product Outlet Connection | 9.52mm (3/8”) Male BSP |
| Air Pressure Gauge | 0 – 4bar (0 – 58psi) |
| Product Pressure Gauge | 0 – 8bar (0 – 116psi) |
| Operating Temperature | 0 – 50°C (32 – 122°F) |
| Dimensions (up to lid) | 208 x 208 x 375mm (8.19 x 8.19 x 14.76”) |
| Weight (Empty) | 10.0kg (22.04 lbs) |
| Packing List | Elcometer P10TS Pressure Tank; 10 Litre (2.64 US Gal) & 5m (16.4ft) Combined Anti-Static Air & Product Hose2 |
| Suitable for | Solvent & waterbased products |
1. Maximum air inlet/fluid outlet pressure
2. Supplied as standard. Other lengths of hose are available.
| Package Selector |
| P10T Stainless Steel Pressure Pot with Manual Agitator; 10L (2.64 US Gal) (PP10T-MA) Supplied complete with the following options in the table below. Sagola X 4100 Pressure Spray Gun Product Tube, Product Filter Holder and Swivel Fitting Kit is not supplied as standard and must be purchased separately if required. |
 |
1. Combined Anti-Static Air & Product Hose with Protective Cover for Air Spray (Low Pressure) Systems. Air Hose (Blue): Anti-Static, EDPM with textile reinforcement, ID: 8mm x OD: 15mm with 1/4″ Female Connection. Product Hose (White): Nylon (Polyamide PA12), ID: 6mm x OD: 8mm with 3/8″ Female Adaptor Protective Cover (Black): Polyester.
| Parts and Accessories |
| Part No. | Description |
| PT56418671 | Spray Gun Product Tube, Product Filter Holder and Swivel Fitting Kit |
| PT52411607 | 10L (2.64 US Gal) Stainless Steel Interchangeable Tank |
| 52411616 | 10L (2.64 US Gal) Single Use Disposable Liner (x10) |
Literature:
- Data Sheets
- Instruction Manual
