Ransburg RansFlex RFXi Electrostatic Gun
Manufacturer: Carlisle Ransburg
Part Number: 81465-011106, 81465-011117, 81465-011123, 81465-011128, 81465-012106, 81465-021117, 81465-111105, 81465-111106, 81465-111107, 81465-111112, 81465-121117, 81465-211117, 81465-321112, 81465-321102, 81465-421106
All Guns Come with STD Fluid Inlet Tube
High-Performance Electrostatic Manual Gun
The all-new RansFlex RFXi 65kV spray gun delivers features and benefits that surpass all other electrostatic applicators. RFXi is a low-pressure air atomizing electrostatic spray gun powered by an inbuilt turbine generator. Designed with the operator in mind, the handle incorporates many fit and feel improvements with better-balanced weight to reduce operator fatigue.
The RFXi uses indirect electrostatic charging technology, which means there is no longer any need to isolate the waterborne paint feed containers or paint pumps with expensive isolation cages or tanks, saving users significant expense and floor space.
Devilbiss’s world-renowned air cap atomization technology is coupled with Ransburg electrostatic power to provide superior atomization, transfer efficiency, and performance—all backed by a 5-year limited warranty.
Universal Water-Based Paint Compatibility
Sprays straight from your regular paint pumps or pressure feed tanks without the need for expensive isolation tables or enclosures
World Renowned DeVilbiss Atomization Technology
For superior atomization and finish quality
Ergonomic FitFeel With Easy To Use Controls
The curved gun handle required less “grip-force” with a softer trigger pull, which means users experience less joint or muscle strain, reducing the risk of RSI and operator fatigue—On/Off voltage switch is on the gun
Triple Turbine Protection
Three phases of turbine protection include a divorced turbine air supply cartridge, sealed nozzle/atomization passages, and the strategic turbine location provides a long, trouble-free working life
Specifications
|
Material: |
Water Base |
|
Weight w/o Hoses: |
620g (22oz) |
|
Height: |
190.5mm (7.5”) |
|
Width Max: |
41.2mm (1 5/8”) |
|
Length: |
273mm (10 3/4”) |
|
Operating Voltage: |
65 kV DC (-) max |
|
Max Current: |
120 microamperes |
|
Wetted Parts |
Stainless, Polyethylene, Nylon, Acetal Polymer |
|
Operating Pressure (Air Spray) |
|
|
—Fluid: |
0–6.9 bar (0–100 psi) |
|
—Air: |
0–6.9 bar (0–100 psi) |
|
—Trigger: |
5.5–6.9 bar (80–100 psi) |
|
Ambient Temperature: |
40° C to 5° C (104° F to 41° F) |
|
Consumption (with Voltage): |
438 SLPM (15.4 SCFM) @ 2.8 bar (40 psig) @ Handle Inlet |
|
Sound Level: |
92 dB (A) @ 2.8 bar (40 psig) Inlet, 1m from the applicator |
|
Fluid Flow Capacity: |
1,000 mL/min |
Atomization Table
|
“A” Dash No. |
“A” Description |
“1” |
“2” |
“3”/Color” |
|
0 |
T SERIES 1.2mm |
80383-00 |
80239-12 |
74963-05/BLACK |
|
1 |
T SERIES 1.2mm |
80383-00 |
80239-14 |
74963-05/BLACK |
|
2 |
T SERIES 1.2mm |
80383-00 |
80239-18 |
74963-05/BLACK |
|
3 |
T SERIES 1.2mm |
80383-00 |
80239-10 |
74963-05/BLACK |
|
4 |
T SERIES 1.2mm |
80383-00 |
80239-07 |
74963-05/BLACK |
Fluid Control Table
|
“B” Dash No. |
“B” Description |
“4” |
|
1 |
ADJUSTABLE FLUID |
80775-00 |
|
2 |
NON-ADJUSTABLE FLUID |
80775-01 |
Trigger Table
|
“C” Dash No. |
“C” Description |
“5” |
|
1 |
2 FINGER TRIGGER |
80211-00 |
|
2 |
4 FINGER TRIGGER |
80386-00 |
|
3 |
2 FINGER SMALL PROFILE |
80566-00 |
Fluid Inlet Table
|
“D” Dash No. |
“D” Description |
“6” |
|
1 |
STD FLUID INLET TUBE |
80269-65 |
Fluid Hose Table
|
“E” Dash No. |
“E” Description |
“7” |
|
0 |
NO FLUID HOSE |
— |
|
1 |
FLUID HOSE, 10m |
80303-10 |
|
2 |
FLUID HOSE, 15m |
80303-15 |
|
3 |
FLUID HOSE, 20m |
80303-20 |
|
4 |
FLUID HOSE, 30m |
80303-30 |
Air Hose Table
|
“F” Dash No. |
“F” Description |
“8” |
“9” |
|
0 |
NO AIR HOSE, STANDARD |
80868-00 |
— |
|
1 |
STANDARD AIR HOSE, 5m |
80868-00 |
80558-05 |
|
2 |
STANDARD AIR HOSE,10m |
80868-00 |
80558-10 |
|
3 |
STANDARD AIR HOSE, 15m |
80868-00 |
80558-15 |
|
4 |
STANDARD AIR HOSE, 20 |
80868-00 |
80558-20 |
|
5 |
NO AIR HOSE, QD |
80869-00 |
— |
|
6 |
QD AIR HOSE, 5m |
80869-00 |
80558-06 |
|
7 |
QD AIR HOSE, 10m |
80869-00 |
80558-11 |
|
8 |
QD AIR HOSE, 15m |
80869-00 |
80558-16 |
|
9 |
QD AIR HOSE, 20m |
80869-00 |
80558-21 |
Retaining Ring Parts
|
Part No. |
Description |
Quantity |
Item No. |
|
80531-00* |
NUT, RETAINING |
1 |
1 |
|
LSOR0005-17 |
O-RING, ENCAPSULATED |
1 |
2 |
Needle Shaft Parts
|
Part No. |
Description |
Quantity |
Item No. |
|
70430-01 |
ASSEMBLY ELECTRODE, HIGH WEAR |
1 |
1 |
|
80677-00 |
ADAPTER, MALE |
1 |
2 |
|
14323-00 |
SEAL, CHEVRON, 3/8 DIA. |
4 |
3 |
|
14323-00-K4 |
SEAL, CHEVRON (KIT OF 4) |
1 |
|
|
18821-00 |
ADAPTER-FEMALE-CHEVRON |
1 |
4 |
|
80257-65 |
TUBE, PACKING |
1 |
5 |
|
80225-65 |
NEEDLE SHAFT ASSEMBLY |
1 |
6 |
|
79001-06 |
O-RING, SOLVENT-PROOF |
1 |
7 |
|
78629-00 |
RETAINER, NEEDLE SEAL, REAR |
1 |
8 |
|
10051-05 |
CUP SEAL, SPRING-LOADED |
1 |
9 |
|
78630-00 |
SPACER, SEAL |
1 |
10 |
|
17390-04 |
WASHER, SPRING, BELVILLE |
6 |
11 |
|
17390-04-K6 |
WASHER, SPRING, BEVILLE (KIT OF 6) |
1 |
|
|
78631-00 |
NUT, PACKING |
1 |
12 |
Barrel Parts
|
Part No. |
Description |
Quantity |
Item No. |
|
80724-00 |
ASSEMBLY, BARREL & O-RING |
1 |
1 |
|
80263-65 |
ASSEMBLY, NEEDLE SHAFT |
1 |
2 |
|
80242-00 |
NUT, REAR JAM |
1 |
3 |
|
80243-00 |
NUT, FRONT JAM |
1 |
4 |
|
80258-00 |
SPRING, FLUID RETURN |
1 |
5 |
|
80250-65 |
ASSEMBLY, CASCADE (65 kV) |
1 |
6 |
Barrel & O-Ring Parts
|
Part No. |
Description |
Quantity |
Item No. |
|
80724-00 |
BARREL 65kV |
1 |
1 |
|
79001-07 |
O-RING, SOLVENT-PROOF |
1 |
2 |

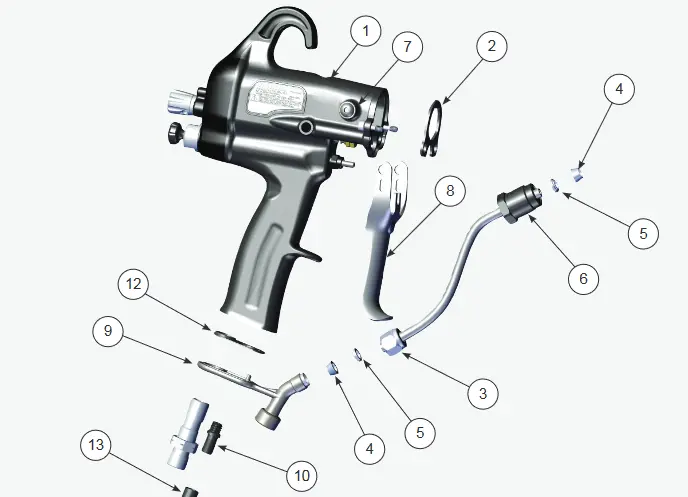

Handle Component Parts
|
Part No. |
Description |
Quantity |
Item No. |
|
80775-00 80775-01 |
INCLUDES HANDLE (80870-00) AND REAR COVER WITH MOTOR INCLUDES HANDLE (80870-00) AND REAR COVER WITH MOTOR |
1 |
1 |
|
80745-00 |
GASKET, BARREL |
1 |
2 |
|
EMF-201-04 |
NUT, HEX, NYLON |
1 |
3 |
|
EMF-203-04 |
FERRULE, FRONT 1/4” |
2 |
4 |
|
EMF-202-04 |
FERRULE, BACK 1/4” |
2 |
5 |
|
80346-00 |
NUT, CONNECTOR, HOSE |
1 |
6 |
|
80268-00 |
SCREW, TRIGGER |
2 |
7 |
|
80211-00 |
ASSEMBLY, TRIGGER |
1 |
8 |
|
80212-00 |
BRACKET, FLUID |
1 |
9 |
|
80221-00 |
FITTING, EXHAUST |
1 |
10 |
|
80236-00 |
FITTING, AIR INLET |
1 |
11 |
|
80684-00 |
GASKET, EXHAUST, AND COMBINED |
1 |
12 |
|
79861-00 |
TUBING, EXHAUST |
1 |
13 |

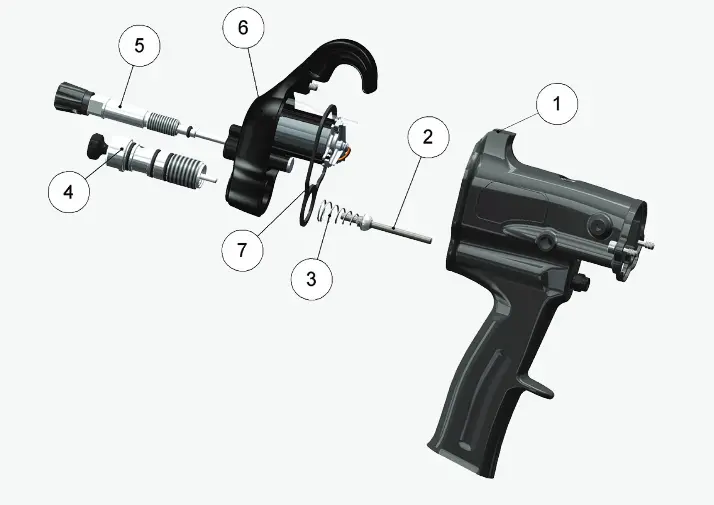

Handle With Rear Cover & Motor Parts
|
Part No. |
Description |
Quantity |
Item No. |
|
80870-00 |
ASSEMBLY, HANDLE |
1 |
1 |
|
80244-00 |
ASSEMBLY, VALVE, AIR |
1 |
2 |
|
80533-00 |
SPRING, AIR VALVE |
1 |
3 |
|
80262-00 |
ASSEMBLY, VALVE, ADJUSTABLE FLUID CONTROL |
1 |
4 |
|
80262-01 |
ASSEMBLY, VALVE, NON-ADJUSTABLE FLUID CONTROL |
1 |
|
|
80273-00 |
ASSEMBLY, VALVE FAN AIR |
1 |
5 |
|
80378-00 |
REAR COVER AND MOTOR ASSEMBLY |
1 |
6 |
|
80732-00 |
GASKET, REAR |
1 |
7 |
Handle Assembly Parts
|
Parts No. |
Description |
Quantity |
Item No. |
|
80870-00 |
ASSEMBLY, HANDLE INCLUDES ALL PARTS BELOW, |
1 |
1 |
|
80274-00 |
SCREW, BARREL-HANDLE |
2 |
2 |
|
80229-00 |
NUT, RETAINING, AIR VALVE |
1 |
3 |
|
10051-05 |
CUP SEAL, SPRING-LOADED |
1 |
4 |
Rear Cartridge Assembly Parts
|
Part No. |
Description |
Quantity |
Item No. |
|
80262-00 |
ASSEMBLY, FLUID CARTRIDGE |
1 |
1 |
|
80262-01 |
ASSEMBLY, FLUID CARTRIDGE (NON-ADJUSTABLE) |
1 |
1 |
|
79001-08 |
O-RING, SOLVENT-PROOF |
3 |
2 |
Fan Air Cartridge Parts
|
Part No. |
Description |
Quantity |
Item No. |
|
80273-00 |
ASS’Y., FAN VALVE (INCLUDES ALL PARTS BELOW) |
1 |
1 |
|
79001-16 |
O-RING, SOLVENT-PROOF |
1 |
2 |

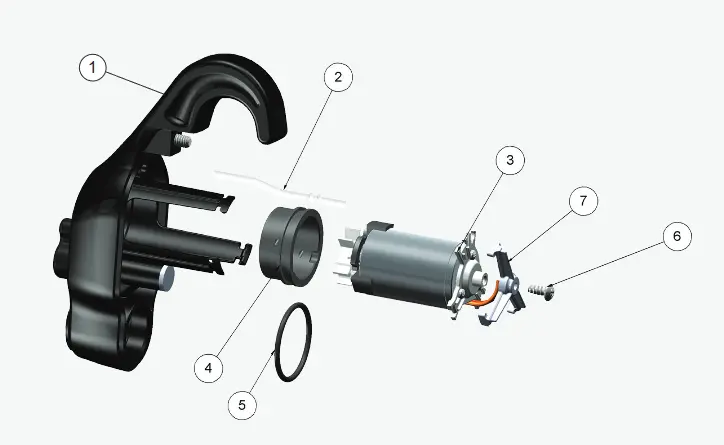

Rear Cover With Motor Assembly Parts
|
Part No. |
Description |
Quantity |
Item No. |
|
80378-00 |
COVER, REAR ASSEMBLY |
1 |
1 |
|
80213-00 |
PIPE, LIGHT |
1 |
2 |
|
80255-00 |
ASSEMBLY, MOTOR |
1 |
3 |
|
79775-00 |
BLOCK, PORTING |
1 |
4 |
|
7554-61 |
O-RING, SOLVENT RESISTANT |
1 |
5 |
|
80275-00 |
SCREW |
1 |
6 |
|
80219-00 |
BRACKET, LOCKING |
1 |
7 |
Motor Assembly Parts
|
Part No. |
Description |
Quantity |
Item No. |
|
80255-00 |
ASSEMBLY, MOTOR |
1 |
1 |
|
80217-00 |
COVER SUPPORT, MOTOR |
1 |
2 |
|
79796-00 |
SCREW, MOTOR |
3 |
3 |
Rear Cover Assembly Parts
|
Part No. |
Description |
Quantity |
Item No. |
|
80254-00 |
COVER, REAR |
1 |
1 |
|
80274-00 |
M4 X .7 SHCS |
1 |
2 |
