Description
Ransburg No. 2 Process Gun
On-Site Finishing System
Manufacturer: Carlisle Ransburg
Part Number: 19372-XXX
Description:
The No. 2 Gun’s unique design provides transfer efficiency of 95% or greater,
depending on coating.
The Ransburg No. 2 Gun is the most efficient applicator for on-site finishing. The Gun’s high transfer efficiency provides improved productivity, reduced operator fatigue and higher quality finishes. Reduced labor and material costs, as well as reduced clean up are just a few of the money saving benefits.

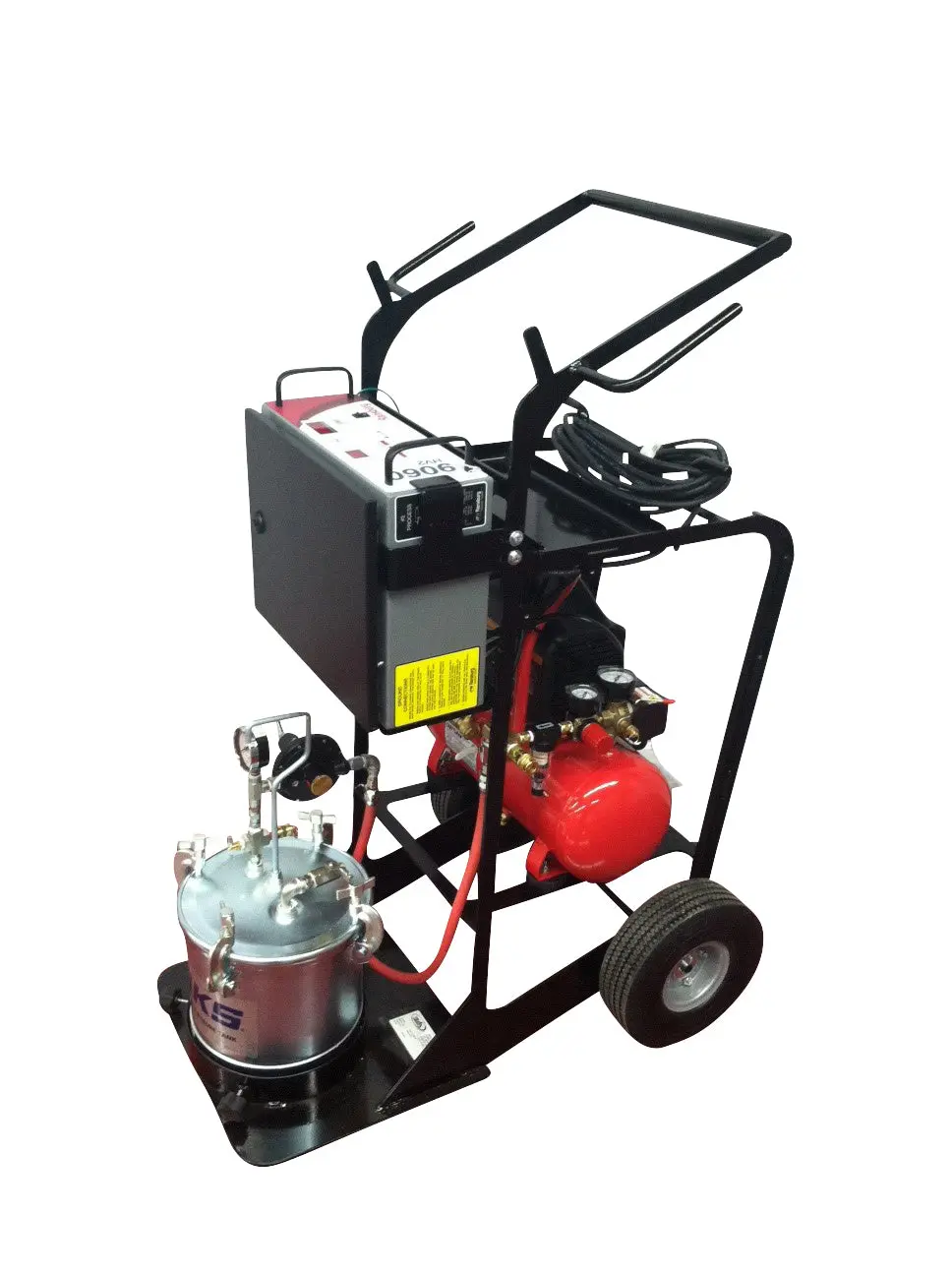

The portable Deuce Unit, utilizing the No. 2 Gun, power supply, cart and accessories, makes it well suited for a wide variety of applications. It goes where you need to go. Its portability makes it perfect for independent contractors, schools, hospitals and maintenance departments. Typical uses include metal furniture, lockers, fences, railings, tubing and file cabinets. The Deuce provides the most complete, on-site finishing unit.
Features
-
Improved Atomization:
Gives a higher quality finishes
-
Enhanced Spray Pattern Control:
Delivers maximum flexibility from a small center outlet design
-
No High Fluid Pressure Required:
Provides the user greater application control
-
Trouble-Free Assembly:
The straightforward design makes the unit easy for one person to handle
-
Accessible Pressure Pot:
Simplifies use and maintenance
-
Lightweight Design:
Allows user-friendly mobility and transportability
Markets
-
Wrought Iron Furniture & Metal Products
-
Fences, Gates, Railings & Many Other Intricate Metal Parts
-
On-Site Office Furniture Refurbishment
-
Wire & Screen Products
-
Chain-Link Fencing
-
Security Doors, Fixtures & Fittings
-
Government Maintenance Departments
-
Recreational Park Fences & Playgrounds
Complete Units
Complete units include:
(1) 11488-00 4” Bell
(1) 3700-00-K3 Feed Tube
(1) 80102-211 Power Supply
(1) 20868- Circuit Tester
(1) 5170-00 Solvent Safety Can
(1) 7244-00 Swivel Adaptor (3/8” x 9/16” L)
(1) 8340-AA Fluid Hose (Designated by length of high voltage cable)
(1) 19370-AA Cable Assembly
No. 2 Gun & Cable Sets Only
Gun and cable sets include:
(1) 11488-00 4” Bell
(1) 3700-00-K3 Feed Tube
(1) 19372-XX No. 2 Gun
(1) 19370-AA Cable Assembly
Coating Capabilities
|
Standard Bell Size |
4” |
|
Approximate Max Delivery Rate |
120cm/min. |
|
Application Rate |
10–12 sq. ft./min. |
|
Optional Bell Sizes |
2 3/4” |
6” |
|
Approximate Max Delivery Rate |
75 cc/min. |
180 cc/min. |
|
Application Rate |
5–7 sq. ft./min. |
15–18 sq. ft./min. |
|
Electrostatic Gun Specifications |
|
|
Operating Voltage |
100kV |
|
Input Voltage |
115/230V, 50/60 |
|
Power Consumption |
75 Watts (max) |
|
Tip Voltage |
100kV (max) |
|
Short Circuit Voltage |
80–100 microamperes DC (measured at the bell atomizer) |
|
Gun Length |
20” (50.8cm) |
|
Gun Weight |
56oz (1,588 grams) |
|
Cable Length |
25, 36, 50, 75 ft. (82, 118, 164, 246 m) |
|
Fluid Pressure Tank Specifications |
|
|
Capacity |
2.8 gallon |
|
Regulators |
One (1) regulator—no agitator |
|
Maximum Fluid Pressure |
50psi (3.4 bar) |
|
Compressor Specifications |
|
|
Unit |
Oil-lubricated compressor single stage |
|
Electrical |
120v, 1Ph, 60Hz |
|
Air Tank |
(One) 2 gallon air tank |
Spare Parts
Cable/Motor Parts List
|
Part Number |
Description |
Item Number |
|
4359-01 |
Spring Pin |
1 |
|
8491-00 |
Spring |
2 |
|
75757-00 |
Adapter, Drive |
3 |
|
3639-00 |
Assembly, Electric Motor No. 2 |
4 |
|
3968-00 |
Gasket, No. 2 Handgun |
5 |
|
8301-16C |
SHCS #8 Screw (4) Required |
6 |
|
19371-25/19370-25 19371-36/19370-36 19371-50/19370-50 |
Assembly, Cable No. 2 Electric Motor 7.6 m (25’) length 11 m (36’) length 15.2 m (50’) length |
7 |
|
4125-00 |
Switch |
8 |
|
9157-24F |
Screw, Flat HD. #10 |
9 |
Handle Parts List
|
Part Number |
Description |
Item Number |
|
7234-00 |
Machined No. 2 Handle |
1 |
|
3655-00 |
Needle Assembly |
2 |
|
3649-00 |
Trigger No. 2 Machined |
3 |
|
2594-08 |
Roll Pin |
4 |
|
7135-00 |
Hose Retainer |
5 |
|
2845-00 |
Packing |
6 |
|
3653-00 |
Sleeve, Elastomer |
7 |
|
3654-00 |
Seat, Needle |
8 |
|
6803-02 |
Bushing |
9 |
|
6803-01 |
Bushing |
10 |
|
17356-00 |
Hose Connector Assembly |
11 |
|
3978-00 |
Bushing Spacer |
12 |
|
7747-020C |
#6 Round Head Screw |
13 |
|
3979-00 |
Trigger Latch |
14 |
|
3977-00 |
Spring, Latch, Trigger |
15 |
|
5008-00 |
Washer, Thrust |
16 |
Needle Valve Assembly Parts List
|
Product Number |
Description |
Item Number |
|
3659-00 |
Housing, Spring |
1 |
|
3657-00 |
Needle, No.2 Hand Gun |
2 |
|
3688-01 |
External Retaining Ring |
3 |
|
3803-01 |
Eyelet, #5 |
4 |
|
3658-00 |
Retainer, Spring |
5 |
|
3441-00 |
Nut, Lock |
6 |
|
5008-00 |
Washer, Plastic Thrust |
7 |
|
2846-00 |
Spring, Compression |
8 |
Barrel Parts List
|
Part Number |
Description |
Item Number |
|
7554-20 |
O-Ring |
1 |
|
7554-08 |
O-Ring |
2 |
|
7554-13 |
O-Ring |
3 |
|
7554-06 |
O-Ring |
4 |
|
14003-00 |
Spring |
5 |
|
4175-01 |
Resistor, 10 Gig Ohm |
6 |
|
6714-00 |
Collar |
7 |
|
8488-12F |
Flat Point Set Screw |
8 |
|
6710-00 |
Seal, Outer |
9 |
|
6713-00 |
Nut, Machined |
10 |
|
6711-00 |
Seal, Inner |
11 |
|
7225-00 |
Shaft Sub-Assembly |
12 |
|
2842-01 |
Resistor, 525 Meg Ohm |
13 |
|
7486-06 |
Washer |
14 |
|
7747-12C |
Screw, Rd Hd. #6 |
15 |
|
3959-00 |
Seal Resistor, Machined |
16 |
|
3700-00-K3 |
Tube Feed, 4” |
17 |
|
8489-00 |
Assembly, Barrel Housing And Bushing |
18 |
8340-XX Fluid Hose Parts & Assemblies
|
Part Number |
Description |
Item Number |
|
77031-XX |
Hose, Fluid |
1 |
|
7617-00 |
Fitting, Hose Ferrule (2) Required |
2 |
|
7623-00 |
Stem, Union (2) Required |
3 |
|
6503-00 |
Nut, LH (2) Required |
4 |
|
Fluid Hose Assemblies |
||
|
8340-25 |
25 (7.6 m) |
|
|
8340-36 |
36 (11 m) |
|
|
8340-50 |
50 (15.2 m) |
Feed Tube Parts List
|
Part Number |
Description |
Item Number |
|
6335-00 |
Feed Tube For 2 3/4” Bell |
1 |
|
3700-00-K3 |
Feed Tube For 4” Bell |
|
|
4076-00 |
Feed Tube For 6” Bell |
|
|
7554-05 |
O-Ring |
2 |
Brush Assembly Parts
|
Part Number |
Description |
Item Number |
|
3695-00-K3 |
Brush Assembly |
1 |
|
7554-06 |
O-Ring |
2 |
Fluid Filter Parts List
|
Part Number |
Description |
Item Number |
|
76941-00* |
Rear Housing, Paint Filter |
1 |
|
76940-00* |
Front Housing, Paint Filter |
2 |
|
76939-00* |
Adapter, Stem |
3 |
|
6503-00 |
Fitting, Nut Lh |
4 |
|
7720-01 |
Filter, Paint (100 Mesh, Fine) |
5 |
|
7720-02 |
Filter, Paint (60 Mesh, Coarse) |
|
|
76938-01 |
Filter Assembly (Fine Mesh) |
|
|
76938-02 |
Filter Assembly (Coarse Mesh) Std. |
Bell Spare Parts & Assemblies
|
Part Number |
Description |
Item Number |
|
9777-00* |
Hub And Probe Assembly 2 3/4” |
1 |
|
4628-00 |
Hub And Probe Assembly 4” |
|
|
8488-08C |
Set Screw |
2 |
|
9772-00* |
Rim 2 3/4” |
3 |
|
4627-00 |
Rim 4” |
|
|
6126-00 |
Spring, Contact |
4 |
|
11491-00 |
2 3/4″ Bell Assembly |
|
|
11488-00 |
4“ Bell Assembly Std. With Unit |
|
|
11492-00 |
6” Bell Assembly |
9060 Power Supply Spare Parts List
|
Part Number |
Description |
Item Number |
|
79428-00 |
Power Supply, 24 V |
1 |
|
80116-28 |
Main Pc Baord, 90 Kv Classic |
2 |
|
79412-00 |
Ac Line Filter |
3 |
|
14762-02* |
Washer, Conduit |
4 |
|
5307-04* |
Nut, Conduit |
5 |
|
79350-03 |
Hv Multiplier Assembly, No. 2 |
6 |
|
70539-00 |
Grounding Assembly |
7 |
|
76434-01 |
AC Power Switch |
8 |
|
5627-00 |
Rubber Foot |
9 |
|
72771-06 |
Fuses For All Unit Styles |
No. 2 Process Gun Recommended Spare Parts
|
Part Number |
Description |
|
72771-06 |
Fuse |
|
3657-00 |
Needle |
|
3688-01 |
Snap Ring |
|
3803-01 |
Eyelet |
|
3654-00 |
Needle Seat |
|
3653-00 |
Sleeve (2 Required) |
|
2845-00 |
Packing |
|
3695-00-K3 |
Brush Assembly |
|
7969-031 |
Loctite |
|
7969-031 |
O-Ring (6 Required) |
|
7554-05 |
O-Ring (6 Required) |
|
7554-06 |
O-Ring (2 Required) |
|
7554-07 |
O-Ring (2 Required) |
|
7554-08 |
O-Ring (12 Required) |
|
7554-13 |
O-Ring (6 Required) |
|
8488-12F |
Set Screw (2 Required) |
|
6710-00 |
Seal, Outer, Ceramic |
|
6711-00 |
Seal, Inner, PTFE |
|
LSCH0009 |
Grease, 1 oz |
|
72558-02-K5 |
Gun Covers (Kit of 5)* |
9060-00 Kit For Repair Of No. 2 Gun
|
Part Number |
Description |
Quantity |
|
72771-06 |
Fuse (1 AMP, 11C-120 VAC Input) |
2 |
|
72771-01 |
Fuse (0.5 AMP, 220-240 VAC Input) |
2 |
|
3657-00 |
Needle |
1 |
|
3688-00 |
Snapring |
1 |
|
3803-01 |
Eyelet |
1 |
|
3654-00 |
Needle Seat |
1 |
|
3653-00 |
Sleeve |
2 |
|
2845-00 |
Packing |
1 |
|
3695-00-K3 |
Brush Assembly |
1 |
|
8488-12F |
10-32 x 3/8 PLSTC Slot. Set SCR |
2 |
|
7969-031 |
Loctite |
1 |
|
15640-02 |
Zip Lip Bag |
1 |
|
15640-04 |
ZipLip Bag |
16 |
|
6710-00 |
Outer Seal (Ceramic) |
1 |
|
6711-00 |
Inner Seal (Phenolic) |
1 |
|
7554-05 |
“O”-Ring, Feed Tube |
6 |
|
7554-06 |
“O”-Ring, Brush & Resistor Seal |
2 |
|
7554-07 |
“O”-Ring, Paint Tube (Handle) |
2 |
|
7554-08 |
“O”-Ring, Stub Shaft |
12 |
|
7554-13 |
“O”-Ring, Inner Seal Preload |
6 |
|
7554-20 |
“O”-Ring, Outer Seal |
6 |
|
15640-07 |
Zip Lip Bag |
2 |
|
LSCH0009 |
Grease 1 oz. |
1 |
Literature:
- Ransburg No. 2 Process Gun On-Site Finishing System
- Quick Start Guide
- 9060 Series Power Supply
- Safety Bulletin
- Technical Manual
- Service Instruction NO. 2 Handgun Bell
- Service Instruction 9060 Power Supply Faults
