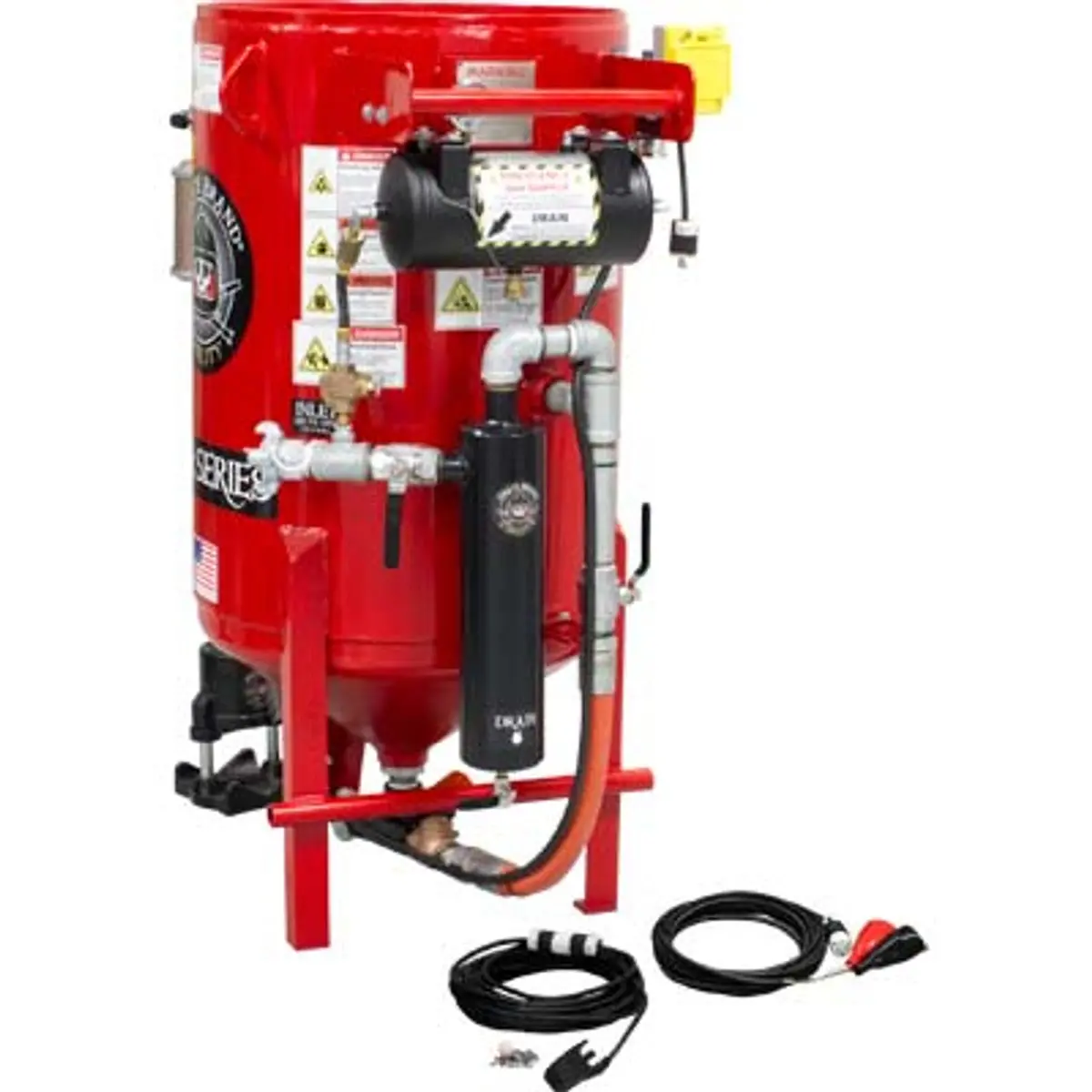

Pirate K-Series 3.5 Cu Ft Stationary Blast Pot – Pressure-Hold System with 12VDC Electric Controls and MPV Metering Valve

Description

Pirate Brand, K-Series, 3.5 cu ft., Blast Pot, STATIONARY, Pressure HOLD System, 12VDC Electric Controls w/ MPV Metering Valve

Manufacturer: Pirate Brand

Part Number: 40-350-MPV

Description: BLAST POT, STATIONARY, K-SERIES, 3.5 CU FT, ELECTRIC 12VDC, MPV METERING VALVE/#400 PINCH VALVE, 1-1/4″ PIPING W/MOISTURE SEPARATOR

Includes:

• KPH Stationary Blaster w/ Electric Controls & MPV Metering Valve
• 55’ Electric Control Cord w/ Connectors
• Electric #2 Control Handle

Product Highlights:

A. 3.5 CU. FT. CAPACITY (100 LITERS)
1. 150 PSI VESSEL (10.3 BAR)
2. A.S.M.E. SECTION VIII DIVISION 1
3. CRN FOR ALL PROVINCES
B. PRESSURE HOLD SYSTEM
1. VESSEL REMAINS PRESSURIZED WHEN THE CONTROL HANDLE IS RELEASED
2. SMOOTHER STARTS AND STOPS COMPARED TO A PRESSURE RELEASE SYSTEM
C. EMERGENCY AIR TANK – A CONSTANT SOURCE OF COMPRESSED AIR IS REQUIRED TO KEEP THE PINCH VALVE CLOSED. TO PROTECT USERS IN THE EVENT A COMPRESSOR FAILS OR RUNS OUT OF FUEL, ALL KPH SERIES BLASTERS FEATURE AN EMERGENCY AIR TANK THAT ACTS AS A RESERVE TO KEEP THE PINCH VALVE CLOSED.  IMPROVEMENT OVER LEGACY DESIGN.
D. HEAVY DUTY MOISTURE SEPARATOR
E. 1″ GALVANIZED PIPING FOR CORROSION RESISTANCE
F. HEAVY DUTY FULL PORT BALL VALVES
G. EXTENDED LIFE SCHEDULE 80 HEAVY DUTY NIPPLE
1. WITHSTANDS ABRASIVE WEAR FOR LONGER LIFE
H. PUSHER LINE INCLUDES JIC FITTINGS ELIMINATING GASKET PROBLEMS
I. MPV METERING VALVE / #400 PINCH VALVE
1. MANUAL PLUNGER VALVE (MPV) IS A SIMPLE RELIABLE DESIGN THAT PROVIDES A WIDE RANGE OF ADJUSTMENT OF ABRASIVE FLOW TO THE NOZZLE
2. THE #400 PINCH VALVE IS RESPONSIBLE FOR STARTING & STOPPING THE FLOW OF AIR AND ABRASIVE.

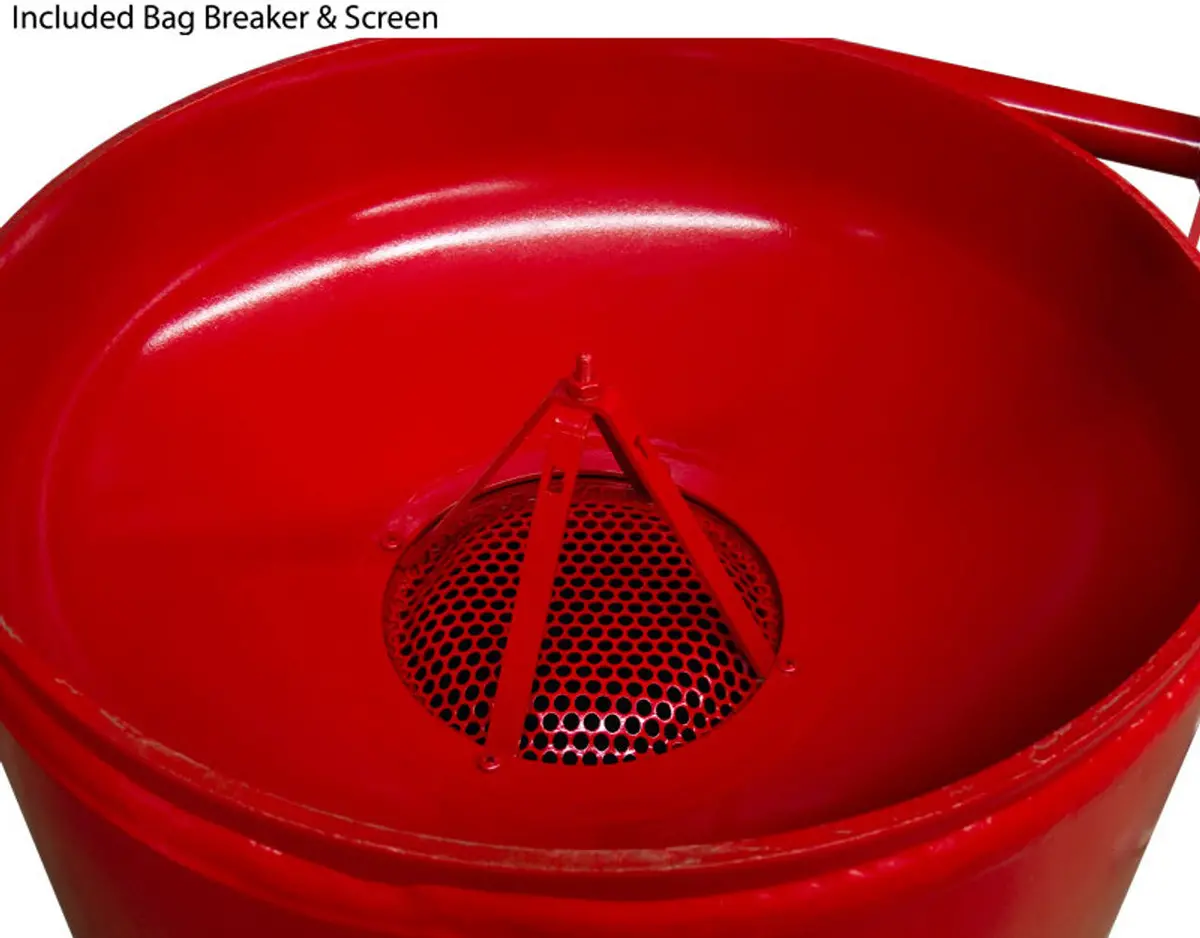

J. BAG-BREAKER AND SCREEN INCLUDED STANDARD OVER THE POP-UP
K. BLOW-DOWN MUFFLER INCLUDED TO REDUCE NOISE DURING DEPRESSURIZATION
L. IMPROVED ELECTRIC CONNECTION
1. WEATHER-PROOF LOCK OUT/TAG OUT CONNECTION BOX
2. RUBBER BOOT THAT SEALS AROUND THE CONTROL HANDLE PLUG
3. SOLVES THE PROBLEM WITH INSECTS NESTING IN THE CONNECTION
M. 6″ FAST-FILL POPUP FOR QUICKER ABRASIVE FILLING

Literature:

• Brochure
• Manual
• How It Works
• Warranty
