Pirate C-Series 3-cu-ft stationary blast pot featuring a precision AMV II™ metering valve, integrated pressure-release system, and 12V DC electric controls

Description

Pirate Brand, C-SERIES, 3 cu ft., Blast Pot, STATIONARY, Pressure RELEASE System, 12VDC ELECTRIC Controls w/AMV II™ Metering Valve

Manufacturer: Pirate Brand

Part Number: 221-0630-EDC

Description: BLAST POT, STATIONARY W/4″ UMBRELLA, 3.0 CU FT (85 LITERS), PRESSURE RELEASE SYSTEM, 12VDC ELECTRIC, INCL: AMV II/1″ INLET & 1″ DIAPHRAGM OUTLET VALVE, 1″ PIPING, 55′ CONTROL CORD, CONTROL HANDLE & 25′ POWER CORD (5 YEAR / 10 YEAR WARRANTY*)

Includes:

• 25′ Power Cord w/ Battery Clamps
• 55′ Control Cord
• Electric Control Handle
• AMV II™ Metering Valve

Product Highlights:

A. 3.0 CU. FT. CAPACITY (85 LITERS)
1. 150 PSI VESSEL (10.3 BAR)
2. A.S.M.E. SECTION VIII DIVISION 1
3. CRN FOR ALL PROVINCES
B. PRESSURE RELEASE SYSTEM
1. AUTOMATICALLY BLOWS DOWN THE VESSEL WHEN CONTROL HANDLE IS RELEASED
2. 1″ INLET VALVE
3. 1″ DIAPHRAGM OUTLET VALVE

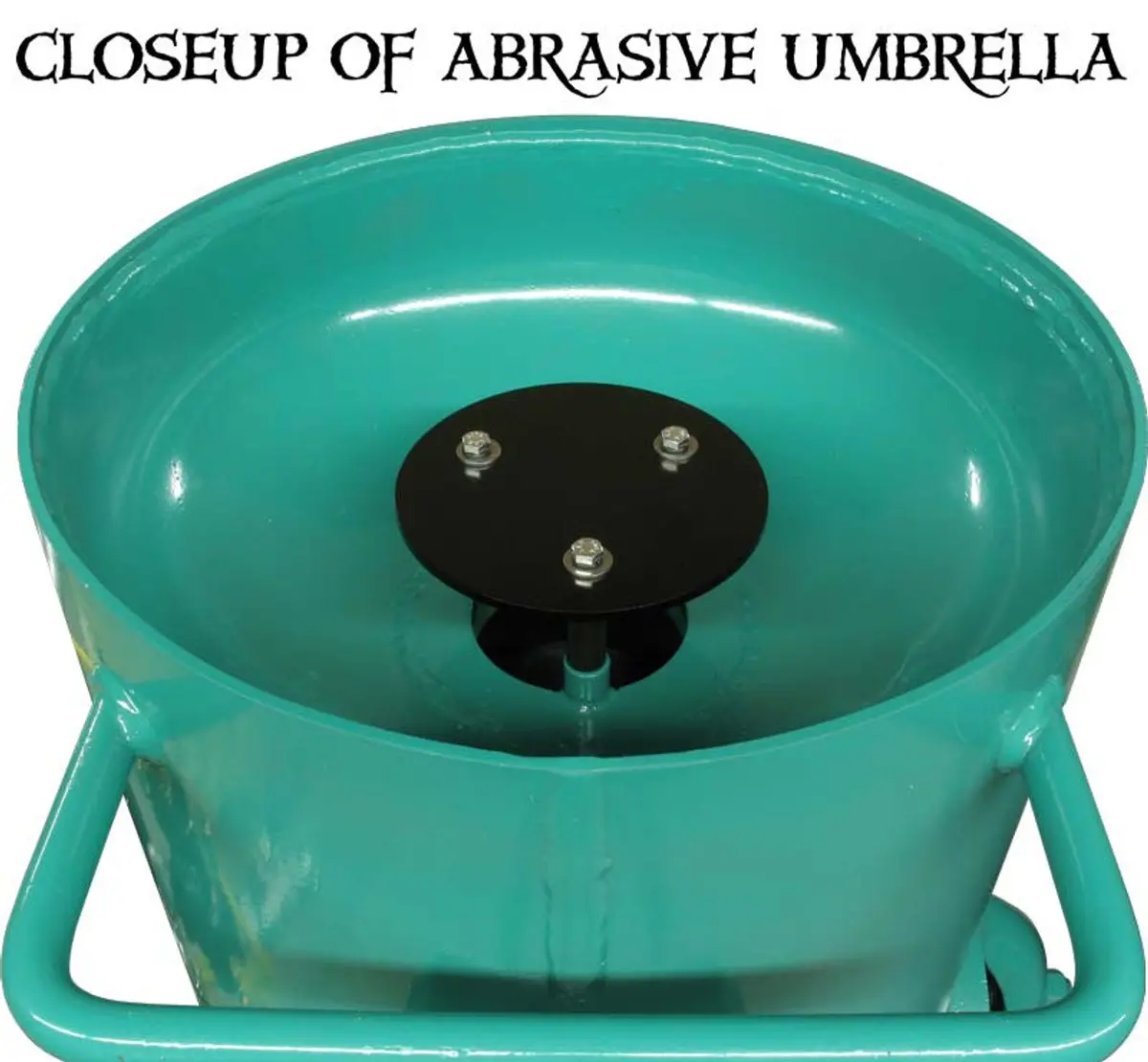

C. 4″ UMBRELLA
1. ELIMINATES EXCESSIVE WEIGHT ON THE POP-UP WHEN HOPPER FEEDING ABRASIVE
D. 12VDC ELECTRIC CONTROLS
1. FASTER STARTS & STOPS FOR BLAST HOSE LENGTHS OVER 100 FT
2. REDUCES FREEZING PROBLEMS IN COLD WEATHER
3. HEAVY DUTY FILTERED CONTROL VALVE
E. 1″ GALVANIZED PIPING FOR CORROSION RESISTANCE
F. HEAVY DUTY FULL PORT BALL VALVES
G. EXTENDED LIFE SCHEDULE 80 HEAVY DUTY NIPPLE
1. WITHSTANDS ABRASIVE WEAR FOR LONGER LIFE
H. PUSHER LINE INCLUDES JIC FITTINGS ELIMINATING GASKET PROBLEMS
I. AMVII(TM) X-TREME DUTY METERING VALVE
1. STAINLESS STEEL METERING PLATE
2. ROBUST IRON HOUSING
3. THIS ONE WORKS WITH STEEL GRIT
4. NYLON WIPER SEALS ON BOTH SIDES OF METERING PLATE (PREVENTS ABRASIVE FROM ENTERING HOUSING AND CAUSING JAMS)
5. LARGE CLEAN-OUT/INSPECTION PORT & DRAIN PORT ARE PROVIDED FOR GREATLY IMPROVED SERVICING & MAINTENANCE
6. PURGE PORT ALLOWS A COMPRESSED AIR SUPPLY TO BE CONNECTED TO ASSIST IN FLUSHING OUT ANY BLOCKAGES THROUGH THE DRAIN PORT
7. IMPROVED HANDLE DESIGN – HEAVY DUTY
8. IMPROVED SEALING OF THE METERING PLATE STEM USING A COMBINATION OF LIP SEALS AND O-RINGS

Compatible with the following OEM manufacturers –

OEM Manufacturer	Part No.
CLEMCO INDUSTRIES / AEROLYTE SYSTEMS / ZERO PRODUCTS	21063

TFS is not affiliated with nor is it endorsed by the above manufacturer(s). The product depicted above is not produced or authorized by the above manufacturer(s), with the exception of Forecast Sales/Pirate Brand.

Literature:

• Brochure
• Manual
• How It Works
• Warranty
