Description

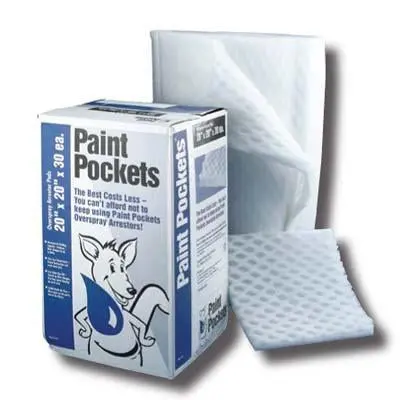

Paint Pockets Green Blanket
Manufacturer: Paint Pockets
Part #: PPG-03X-060-001
Description: The best performing, single-stage overspray arrestor, bar none. Paint Pockets excels in arresting both liquid and powder coating overspray generated in industrial, automotive, and aerospace applications. Compliant with EPA 6H law.
Paint Pockets Green:
Offers many of the same great attributes of standard Paint Pockets at a more affordable price. Compliant with EPA 6H law.
- 1″ white & green, multi-layer polyester media with unique diamond pocket design.
- 99.43% efficient with a holding capacity of 6.4 pounds in 20×20 pad.
Specifications:
| Overall Arrestance Efficiency: | 99.43% |
| Fractional Arrestance Efficiency | |
| 20 microns | 100.0% |
| 10 microns | 99.8% |
| 5 microns | 84.5% |
| 2.5 microns | 4.2% |
| Holding Capacity | Up to 6 lbs/sq ft |
| Maximum Tested Air Velocity | 700 FPM |
| Initial Pressure Drop (@100 FPM) | 0.06 in W.C. |
| Maximum Pressure Drop | 1.00 in W.C. |
| Flammability Rating | UL Class II |
| Filter Construction | High Loft, Multi-Ply, Non-woven Polyester |
Freight Cost is $120.00 per Roll.
**For Quantities of 3 or More, Please Contact Us for Special Freight Pricing**
Paint Arrestance Filter Test Report
Filters are custom/cut to order and are not returnable.
