Description

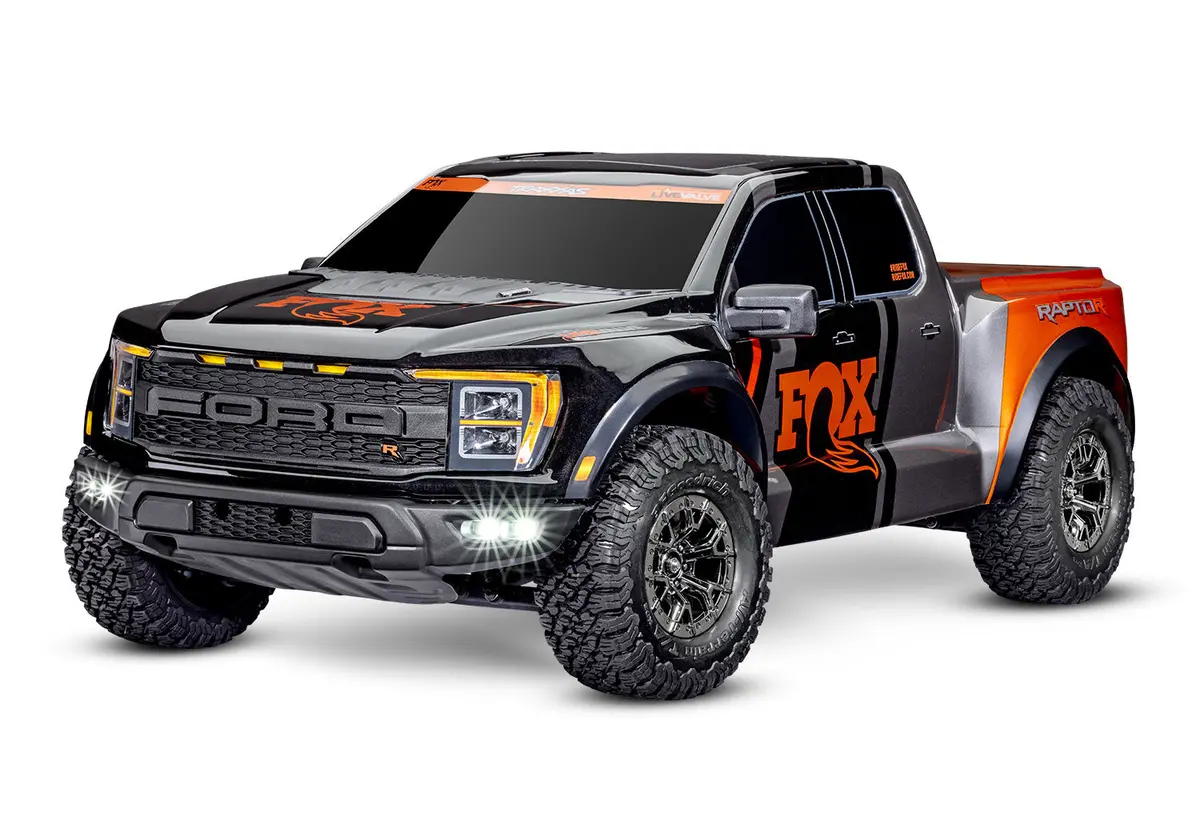

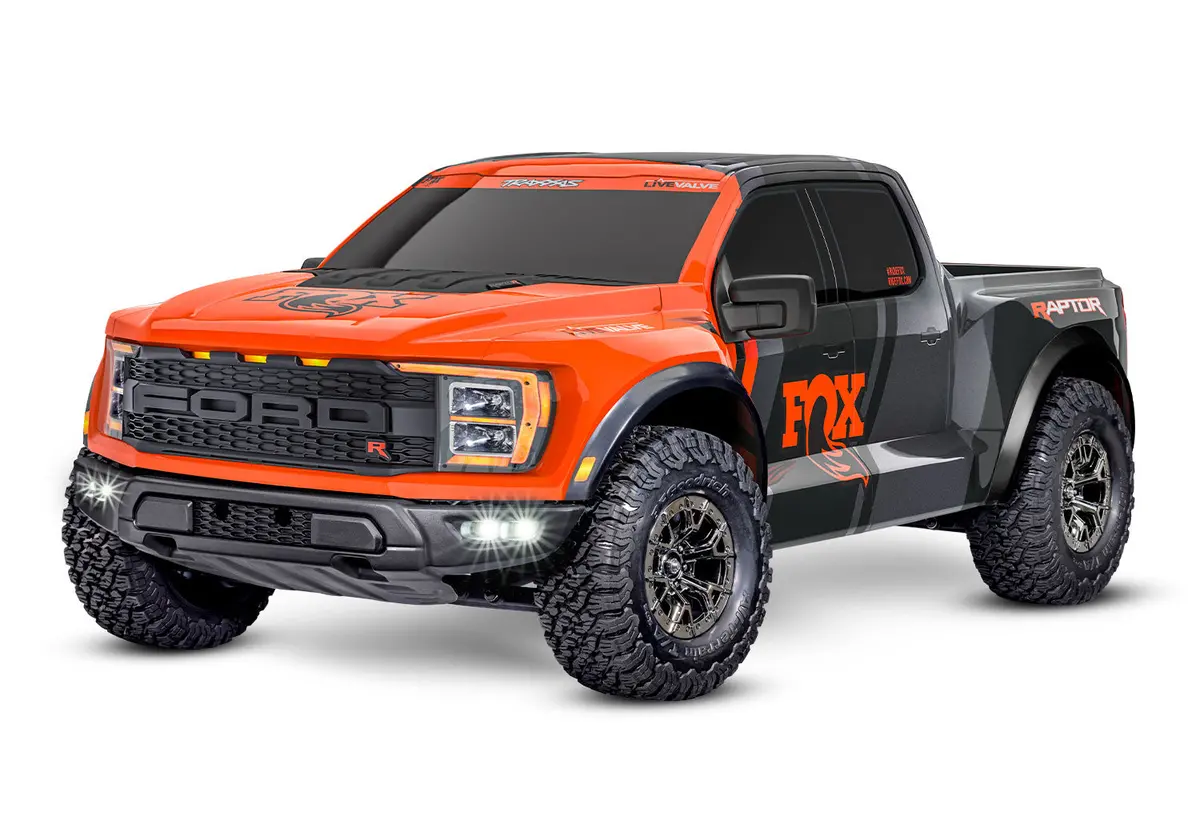

Ford Raptor R 4X4 Ultimate

Model Name:	Ford Raptor R 4X4 Ultimate
Model Type:	Short Course Truck
Model Speed:	60+ mph with 4s LiPo (sold separately)
Model Skill Level:	2
Scale:	1/10
Weight:	6.62 pounds (3.00 kg)
Length:	24.98 inches (637 mm)
Width:	11.63 inches (289 mm)
Front Track:	11.63 inches (289 mm)
Height:	8.91 inches (226 mm)
Rear Track:	11.63 inches (289 mm)

Wheelbase:	15.11 inches (384 mm)
Center Ground Clearance:	2.05 inches (52 mm)
Drive System:	Shaft-driven 4WD w/ Torque-Biasing Center Drive
Differentials:	Hardened steel bevel, sealed, limited slip
Gear Pitch:	32 pitch
Servo:	2275 high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel radio with wireless module
Battery Compartment Specs:	165 mm X 50 mm X 23/26 mm

MOTOR SPECS

Motor Type:	540XL 2400 Kv sensorless brushless
Weight:	11.18 ounces (317 g)
Length:	3.58 inches (91 mm)
Diameter:	1.41 inches (36 mm)
Shaft Size:	5 mm
Connector Type:	Traxxas 6.5 mm bullet connectors

ESC SPECS

Input Voltage (cells):	2s-4s LiPo (7.4 V – 16.8 V)
Case Size:	2.40″ (61 mm) x 2.09″ (53 mm) x 1.42″ (36 mm)
Weight:	4.20 ounces (119 g)
BEC Voltage:	Selectable 6.0 or 7.4 volts
Motor Connectors:	Traxxas 6.5 mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors
Thermal Protection:	Two-stage thermal shutdown
Ports:	RX input, auxiliary fan connector

• Officially Licensed Ford^® F-150^® Raptor R™ Clipless Pro Scale^® Body
• Molded scale details: bumpers, grille, tailgate, side mirrors, and hood vent
• LED lighting in front and rear bumpers
• Body reinforcements to prevent pull-through damage
• Clipless Body Mounting
• Holds tight for intense action
• Quick and easy removal
• Smooth appearance with no body posts or clips
• Color-Matched Aluminum Suspension Parts
• 6061-T6 aluminum C-hubs
• 6061-T6 aluminum steering blocks
• 6061-T6 aluminum rear hub carriers
• VXL-4s™ Waterproof Electronic Speed Control
• 2s–4s LiPo compatible
• Real-time telemetry via Traxxas Link™
• Selectable 7.4-volt high-voltage BEC
• Large Heat sink accepts accessory cooling fan (3340)
• Three Programmable Drive Profiles
• Sport Mode – Forward / Brake / Reverse
• Race Mode – Forward / Brake
• Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set^® one-button setup
• Integrated protection circuits
• LED status lights

• Velineon^® 540XL Brushless Motor
• Long format brushless motor
• 4-pole 2400 Kv
• 5 mm output shaft
• Low-maintenance design
• TQi™ 2.4 GHz Radio System with Wireless Module
• Factory-installed telemetry sensors
• TQi 2-channel high-power transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• 5-channel micro receiver (6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug
• Traxxas Stability Management (TSM)^®
• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter
• Suspension
• Heavy-duty suspension arms
• Adjustable 4 mm steel toe and camber links
• Aluminum oil-filled GTR shocks
• 70% more oil capacity than standard Ultra Shocks™
• Threaded bodies with adjustable spring collars
• TiN-coated shock shafts to reduce friction

• Chassis
• Extended modular composite tub design
• Heavy-duty front & rear shock towers
• Secure battery hold-down latch
• Side nerf bars for impact resistance
• Steering
• 2275 waterproof metal-gear servo
• 347 oz-in torque @ 6.0 volts
• Aluminum center case w/ full bearings
• Dual bellcrank design with integrated servo saver
• Drivetrain
• Full-time shaft-driven 4-wheel drive
• Center differential with 20-million weight oil
• Oil-filled, steel gear front and rear differentials
• Steel 32-pitch spur gear
• Anodized-aluminum center driveshaft
• Maxx-duty driveshafts
• Oversize diameter
• 6 mm axles
• Wheels and Tires
• Licensed Ford^® replica option wheels
• 2″ outer diameter, 3″ inner diameter
• Licensed BFGoodrich^® All-Terrain T/A^® KO2 tires
• Large 114 mm diameter
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

MODEL 101177-4: Ford^® Raptor R™ 4X4 Ultimate: 1/10 scale 4X4 short course truck, fully assembled, waterproof electronics, Ready-To-Race^®, with TQi™ 2.4 GHz 2-channel radio system w/ wireless module, Traxxas Stability Management (TSM)^®, VXL-4s™ speed control, Velineon 540XL brushless motor, and clipless painted Pro Scale^® body.

What’s In The Box:

• Raptor R with Velineon VXL-4s ESC and 2400 Kv motor
• Quick Start Guide
• TQi 2.4 GHz radio system w/ wireless module
• High quality maintenance tools

What You’ll Need:

• Batteries

  Raptor R requires a single 2s, 3s, or 4s LiPo battery with iD^®.

• Charger

  Traxxas EZ-Peak^® Live charger (2971) is recommended for easy and fast charging performance.

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.
