Elcometer 456 Straight Ferrous Substrate Thickness Gauge – Scale 1 Probe

Description

Straight Ferrous Substrate Probe | Scale 1 | Elcometer 456

Manufacturer: Elcometer

Part #: T456CF1S

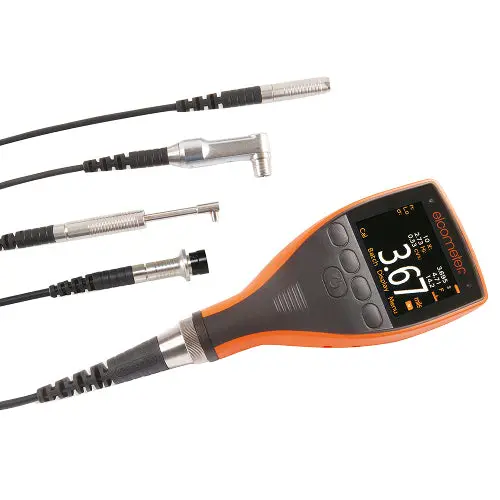

Description: Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.
This straight probe is specifically designed to measure the coating on both flat and curved surfaces.
All Elcometer probes are supplied with a Test Certificate and a set of calibration foils appropriate to the scale range of the probe.
Specifications:

• Range: 0-60 mils (0-1500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-60 mils (0.1µm: 0-100µm; 1µm: 100-1500µm)
• Minimum convex surface radius 4mm (0.16″)
• Minimum concave surface radius 25mm (0.98″)
• Minimum headroom 85mm (3.35″)
• Minimum sample diameter 4mm (0.16″)

Data Sheet
