Description

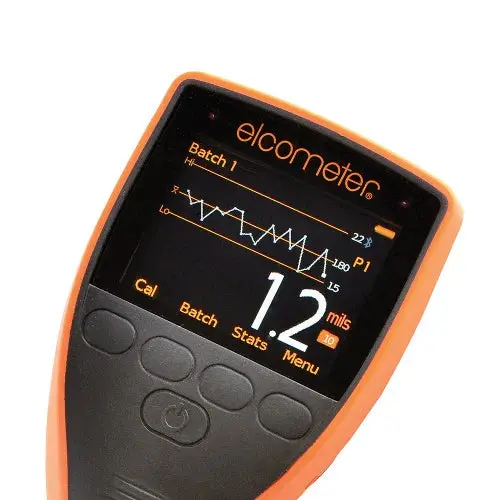

Elcometer 224 Integral Digital Surface Profile Gauge
Manufacturer: Elcometer
Part #: E224C-XI
Literature:
- Data Sheet
- Manual
Description: The Elcometer 224 profile gauge with integral probe provides the very latest in surface profile measuring technology for measuring profiles on flat surfaces. Fast, accurate and very user friendly, the Elcometer 224 is available with or without memory and Bluetooth®. Integral gauges are ideal for single handed operation as the wide footprint of the internal probe provides greater stability during surface profile analysis – allowing for consistent, repeatable and accurate results.
- The Elcometer 224 Gauge is also available in a separate model that has an extended probe, available HERE
Available in two different models, model B and model T, each gauge provides the user with increasing functionality – from the entry level Elcometer 224 Model B, to the top of the range Elcometer 224 Model T, with memory, alpha-numeric batching and Bluetooth® communication.
Specifications:
| Accuracy* | ±5% or ±0.2 mil (±5µm) |
| Resolution | 0.1 mil (1µm) |
| Display information | 2.4″ (6cm) QVGA colour TFT display, 320 x 240 pixels |
| Battery type | 2 x AA dry cell or rechargeable batteries |
| Battery life** | ~24 hours of continuous use at 1 reading per second |
| Gauge dimensions | 168 x 73 x 37mm (5.61 x 2.87 x 1.46″) |
| Gauge weight | 218g (7.69oz) including supplied batteries |
| Operating temperature | -10 to 50°C (14 to 122°F) |
* Whichever is the greater.
**Using default settings & lithium batteries supplied, alkaline or rechargeable batteries may differ.
Parts and Accessories:
- (T22420053) – Replacement Probe Tips; Pack of 2 with Fixing Tool
- (T22420095) – Replacement Probe Tips; Pack of 5
- (T22419793) – Elcometer 224 Probe Tip Protection Cap
- (T22421882C) – Elcometer 224 Surface Profile Gauge – Certified Calibration Test Kit
- (T22420072) – Elcometer 224 Glass Zero Tile with Wallet
- (T99921325) – USB Cable
- (T99920130-1) – USB Bluetooth® Adaptor – for PC’s without Bluetooth®
- (T99922341) – Self Adhesive Screen Protected (Pkg/10)
- (T45622494) – Bench Top Stand
