Description

Exhaust Stack with Cleanout Door

An exhaust duct comes with a straight, 3-foot-long section, with one end corrugated for easy installation. All sizes are constructed from galvanized steel and require some assembly.

You will need a Connector Ring if attaching to the booth fan

Paint Spray Booth Exhaust stack components are fabricated from galvanized steel: 20 gauge for under 30″ diameter; 18 gauge for 30″ diameter and above. Available stack sizes are 12″, 18″, 24″, 30″, 34″, and 42″ diameters. Duct design meets Uniform Fire Code NFPA 91, latest edition.

3 feet long x Choose Diameter

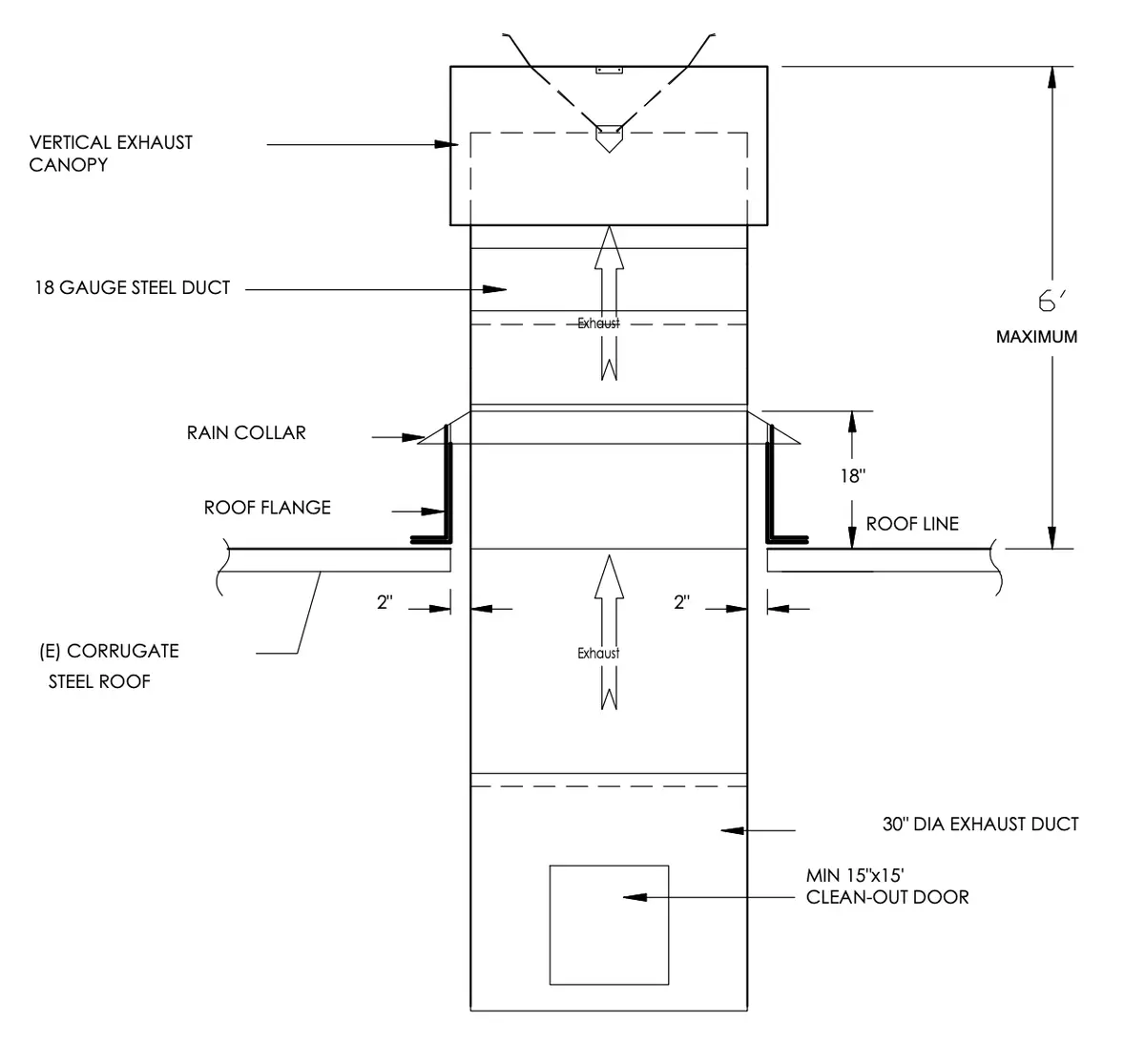

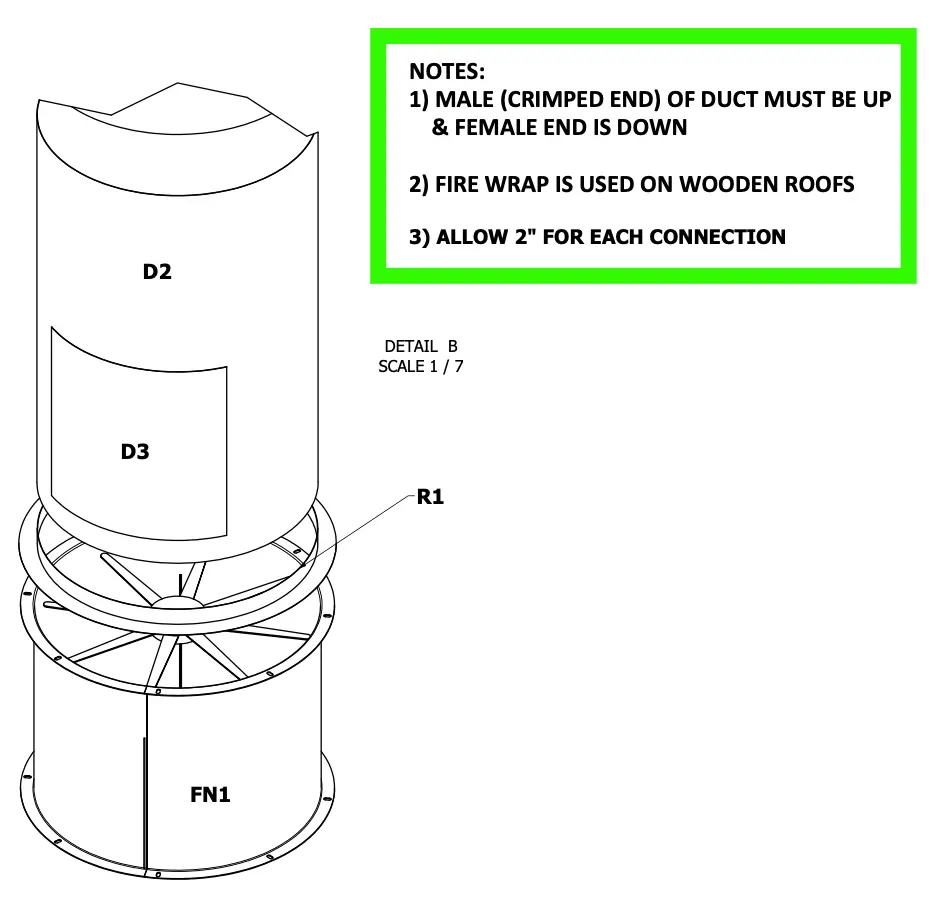

NFPA33 Code Requires that all spray booth Exhaust stacks contain at least one cleanout door.

FOB – You will be contacted with a freight quote or you can arrange your own freight.

Booth duct and accessories are custom made. They are non-returnable/sales are final once shipping is confirmed
