Description

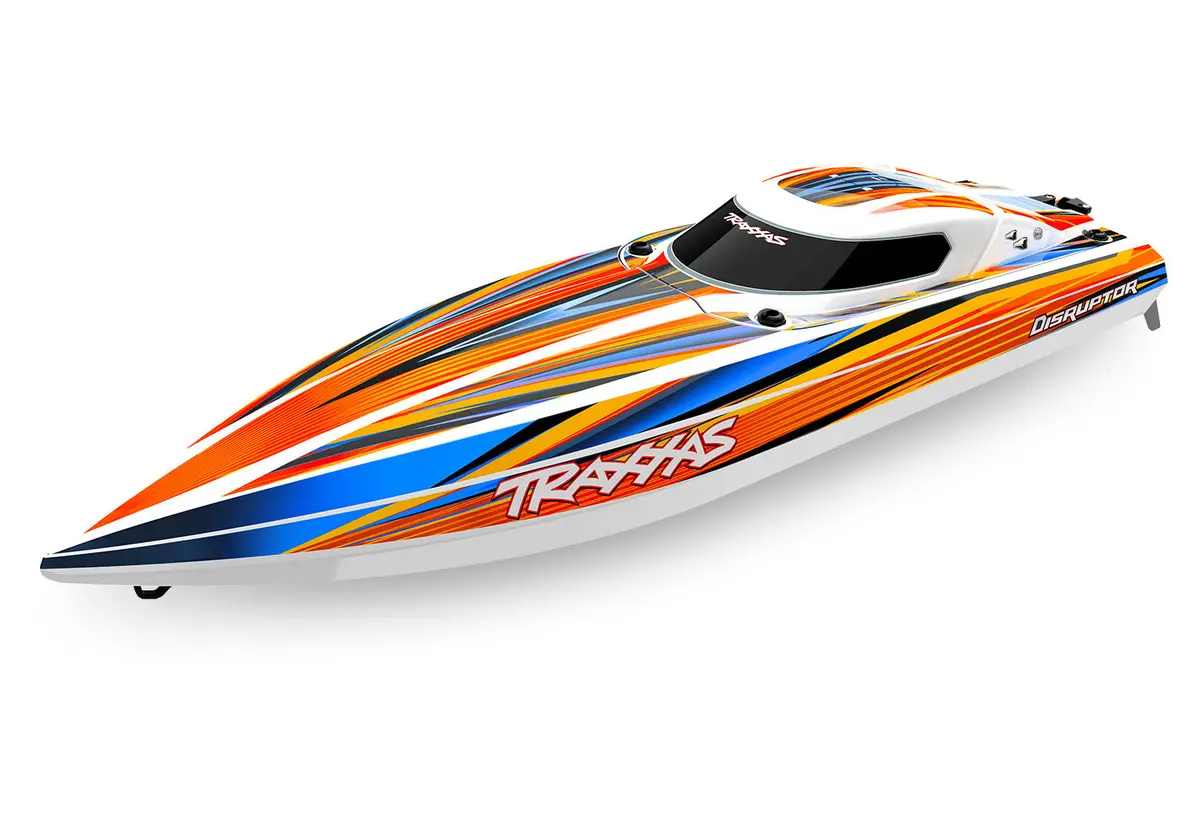

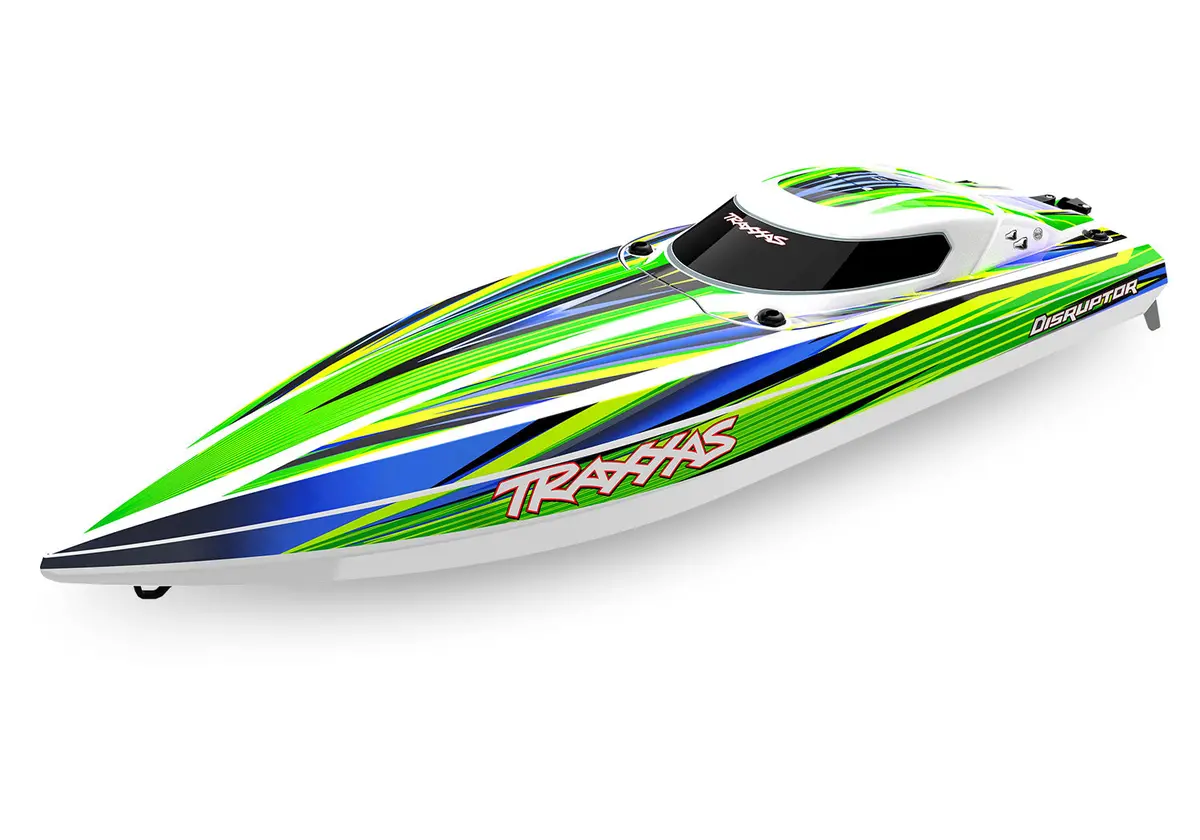

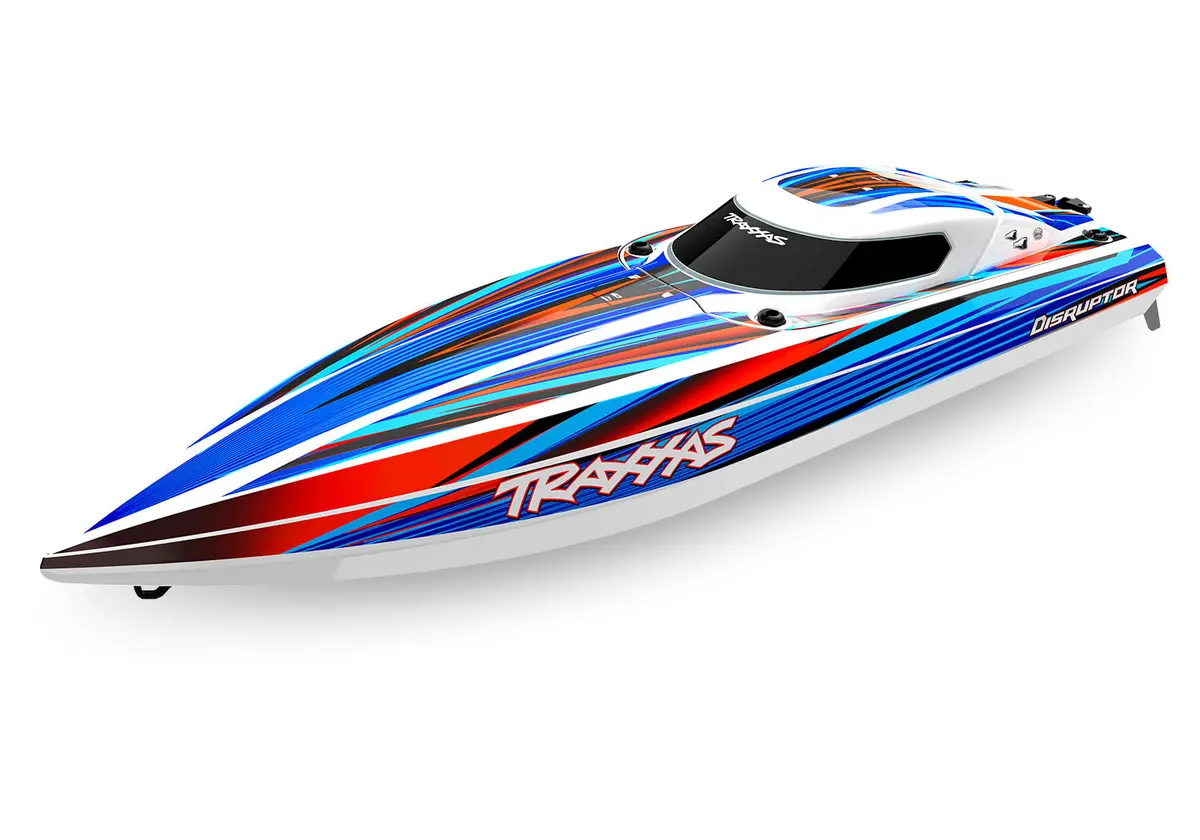

Disruptor 4s Boat

The all-new 4s Disruptor^® is the one boat that holds nothing back. The fun begins when you pin the throttle and Disruptor launches hard on its way to 40+MPH on a single 4s LiPo battery. At 26″ long, Disruptor is perfectly sized to be quick and agile on small ponds and stable in open water. Disruptor is purpose-built by Traxxas for the wildest stunts and unstoppable fun—all with Rapid Right^™ self-righting security.

~ Battery and Charger Sold Separately ~

Disruptor^®: 26″ brushless 4s boat with Rapid Right^™,
TQ^™ 2.4 GHz radio system, VXL-4s^™ Marine ESC, brushless outrunner motor, and factory-applied graphics.

What’s In The Box:

• Spartan SR with VXL-6s Marine ESC and 1850 kV motor
• Quick Start Guide
• TQi 2.4 GHz radio system
• Boat stand
• Hatch nut tool
• Optional wingnuts

What You’ll Need:

• Batteries

  Spartan SR requires dual 7-cell NiMH or dual 2s or 3s LiPo batteries. See full list of batteries.

• Charger

  Traxxas EZ-Peak^® Dual 3s (2972) is recommended for easy and fast charging performance.

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.

• 36″ Reinforced Deep-V Hull
  • Made from lightweight vacuum-formed ABS
  • Self-righting flood chamber
  • Pre-applied graphics
  • Quick-release electronics tray
• Rigid Injection-Molded Clipless Hatch
  • Four quick-release hatch nuts with tool
  • Foam seal keeps water out
  • Includes optional tool-free wingnuts
• Up to 50 MPH with Dual 3s LiPo Batteries
• VXL-6s™ Marine Electronic Speed Control
  • Water-cooled case
  • Three drive profiles
    • Sport Mode – forward / brake / reverse
    • Race Mode – forward / brake
    • Training Mode™ – 50% forward / brake / 50% reverse (patented)
  • Built-in two-stage low-voltage detection for LiPo batteries
  • NiMH battery packs: 14 cells (16.8 volts)
  • LiPo battery packs: 4-6 cells (14.8 to 22.2 volts)

• Velineon^® 540XL Brushless Motor
  • Ultra high-temperature sintered Neodymium magnets
  • Efficient, high-speed ball bearings
  • 1800 kV
  • 5 mm output shaft
  • Water-cooled jacket
• Traxxas Stability Management^® (TSM)
  • Improves straight line acceleration
  • Never dulls throttle or slows the vehicle
  • Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4 GHz Radio System
  • 2-channel transmitter
  • 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Programmable multi-function knob
  • Patented waterproof receiver box

• Extra-Long 218 mm Battery Tray
  • Centralizes battery weight
  • Allows fore and aft battery positioning
  • Accommodates multiple battery configurations
  • Secure hook and loop straps
• Driveline
  • Heavy duty 4.7 mm diameter flex shaft
  • Quick-release motor collet
  • Blue-anodized aluminum drive strut
  • Low-maintenance bushings
  • High performance prop
• Steering
  • Waterproof digital 2056 servo
  • Blue-anodized aluminum rudder with water pickup
• Precision-Cut Stainless Steel Trim Tabs and Turn Fins
• Stainless Steel Hex Hardware Used Throughout

• MODEL SPECS



  Model Name:	Spartan SR Race Boat
  Model Type:	Boats
  Model Speed:	50+ mph with two 3-cell LiPo batteries
  Model Skill Level:	2
  Scale:	1/10
  Weight:	5.29 pounds (2.39 kg)
  Length:	40.8 inches (1037 mm)
  Width:	9.5 inches (243 mm)
  Height:	7.2 inches (183 mm)
  Drive System:	Direct drive, 4.7 mm flex cable

  Outdrive:	Adjustable aluminum
  Hull Length:	36.5 inches (927 mm)
  Dead Rise Angle:	26 degrees
  Length:	40.8 inches (1037 mm)
  Height:	7.2 inches (183 mm)
  Beam (Width):	9.5 inches (243 mm)
  Hull Type:	Composite Deep-V
  Servo(s):	2056 high-torque waterproof
  Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver

  MOTOR SPECS



  Motor Name:	Velineon® 540XL Marine
  Motor Type:	Sensorless brushless
  Motor Weight:	13.62 ounces (386 g)
  Motor Length:	4.07 inches (103 mm) overall length, 3.25 inches (82 mm) can length
  Motor Diameter:	1.42 inches (36 mm)
  Motor Shaft Size:	5 mm
  Motor Connector Type:	Traxxas 5.5 mm bullet connectors

  ESC SPECS



  ESC Name:	Velineon® VXL-6s Marine
  ESC Type:	Brushless
  ESC Case Size:	2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
  ESC Weight:	7.30 ounces (207 g)
  Motor Connectors:	Traxxas 5.5 mm bullet connectors
  Battery Connectors:	Traxxas High Current Connector
