Description
Back Pressure Fluid Regulator
Manufacturer: DeVilbiss
Part #s: HGBR-609 and HGBR-609-B
Description: Back Pressure Regulator Valve
• In « circulating » system as a back pressure valve to maintain system and maintain material fluid flow when no material is being used.
• As by-pass valve to protect against excessive line pressure, the result of either material flow exceeding valve capacity or the result of a restriction in the line beyond the by pass valve.)
Specifications:

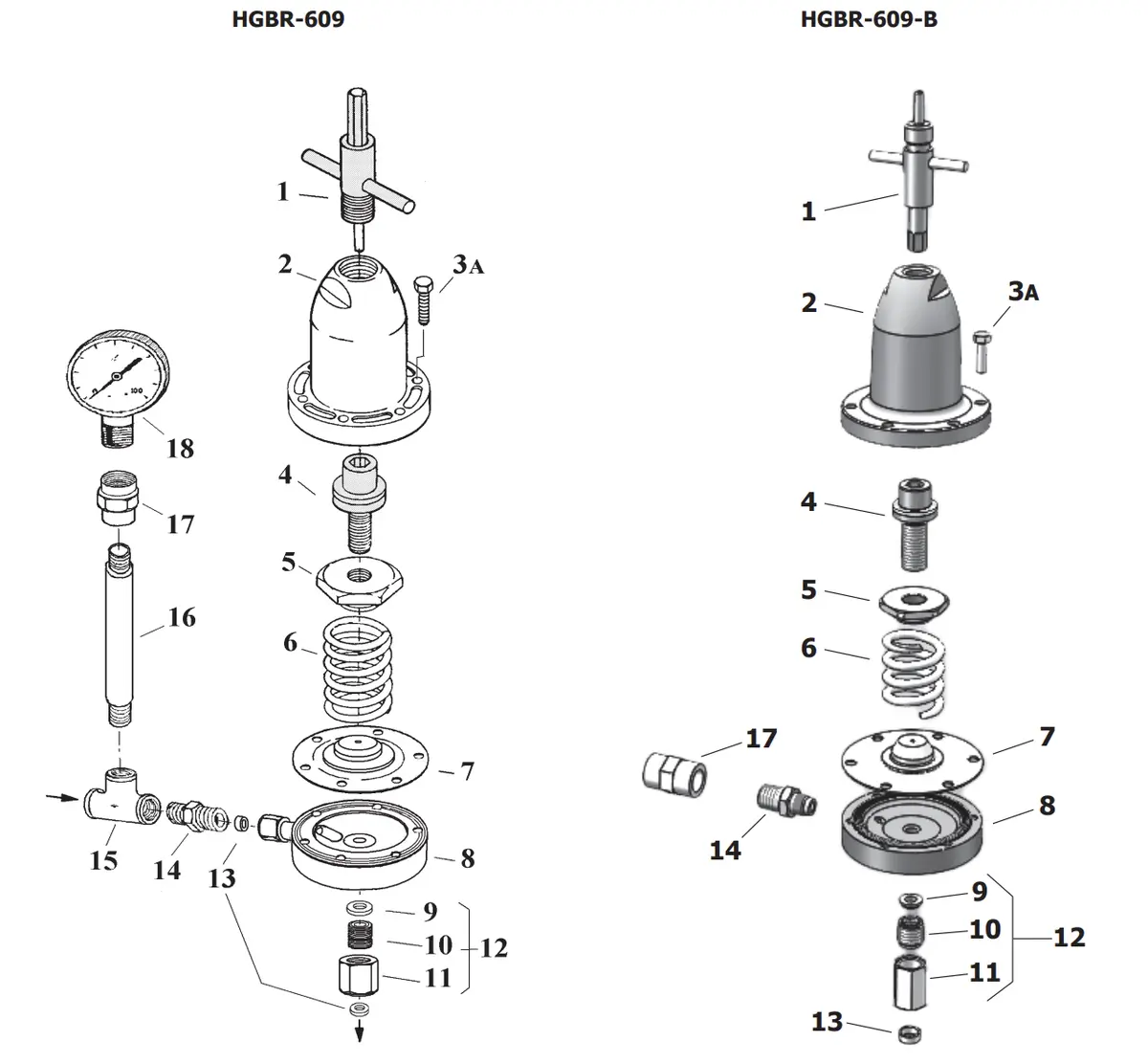

Parts and Accessories:
| Item No. | Part No. | Description | Qty |
| 1 | HGB-404-1 | Adjusting key | 1 |
| 2 | HGB-28 | Cover | 1 |
| 3A | S-1309-H | Screw M5 * 16mm for HGBR 609 | 6 |
| 4 | HGB-408-H | Adjusting screw assembly | 1 |
| 5 | HGB-7 | Adjusting nut | 1 |
| 6 | HGB-43 | Spring for diaphragm for HGBR | 1 |
| 7 | HGBR-422 | Fluid diaphragm assy. for HGBR | 1 |
| 8 | Regulator body | 1 | |
| 9 | Washer | 1 | |
| 10 | Valve support | 1 | |
| 11 | Fluid outlet connector F1/4″ BSP | 1 | |
| 12 | HGBR-426 | Kit of Fluid inlet F1/4″ BSP | 1 |
| 13 | HGB-62 | PTFE Gasket | 2 |
| 14 | HGB-82 | Coupling Stainless Steel 1/4‘’ BSP male x 7/16‘’ male |
1 |
| 15 | S-3006 | Tee Stainless Steel 1/4‘’ BSP – 3 Female |
1 |
| 16 | S-3007 | Riser tube Stainless Steel 1/4‘’ BSP – male/male |
1 |
| 17 | S-3008 | Adapter Stainless Steel 1/4‘’ BSP female/female |
1 |
| 18 | GA-288 | Gauge 11 BAR [160 PSI] | 1 |
Literature:
- Manual
Binks, which DeVilbiss is a part of, charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
