Devilbiss Camair Dad-Pro Professional Air Compressor System

Description

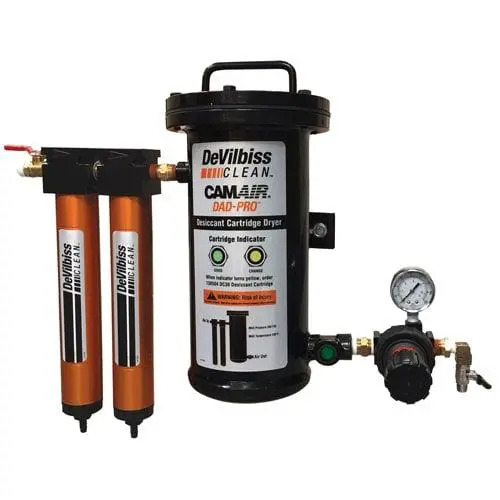

DeVilbiss CamAir® DAD-PRO™ System

Manufacturer: Carlisle DeVilbiss

Part #: 130546

Description: The CamAir® DAD-PRO™ Desiccant Air Drying System provides worry free air filtration for top-quality paint jobs. Air enters the 2-stage filtration package where it is purged of water, oil and oil aerosols. Once cleaned, the air enters the desiccant tank to further remove any remaining water vapor.

• First stage filter removes oil, water and dirt down to 5 microns.
• Second stage coalescer removes oil vapors and dirt particles down to .01 microns.
• Desiccant tank removes water vapor and humidity down to a dew point of -40° F.
• Bagged desiccant for ease of maintenance

Specifications:

• Air Inlet: 1/2″ NPT (Female)
• Air Outlet: 1/4″ NPT (Male)
• Air Flow Capacity: 30 CFM
• Max. Operating Pressure: 175 PSI (12 Bar)
• Max. Temperature: 150˚F (65.6˚C)
• Humidity Indicator: Green- OK, Yellow- Replace Desiccant
• Water Vapor Removal: -40˚F Dew point
• Partical Removal: .01 micron
• Manual Drain: Included

Parts and Accessories:

• 130504 Replacement Desiccant Cartridge
• 130538 Replacement Water Separator Element
• 130539 Replacement Oil Coalescing Element
