Devilbiss AG361 Low-Pressure Air Cap – Compatible with Automatic Spray Guns

Description

Low Pressure Automatic Gun Air Caps

Manufacturer: DeVilbiss

Part #’s: See Below

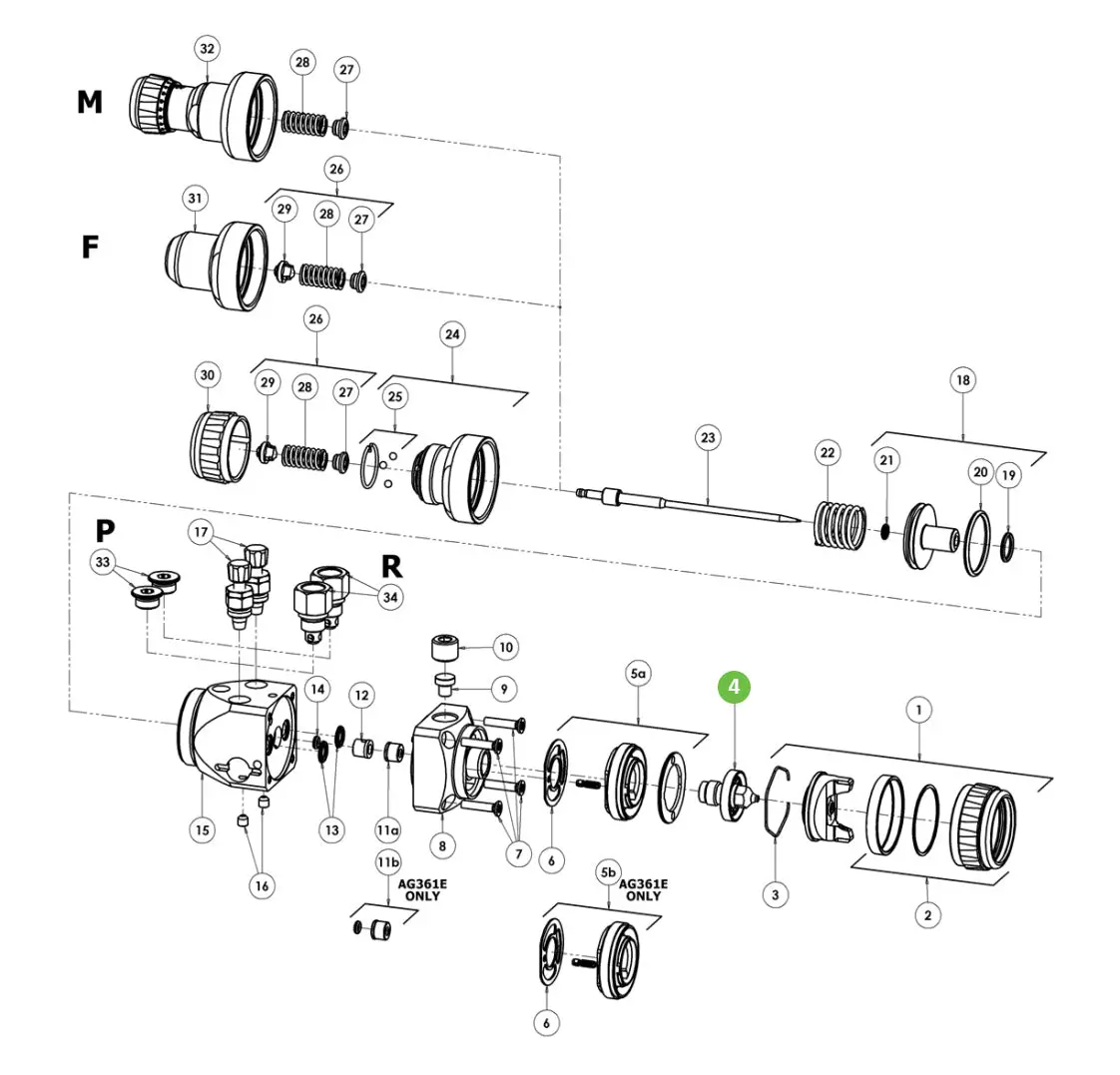

Description: Air Cap & Retaining Ring. See reference 1.

Conventional

• Part # PROC-120-C1-K = Type – Conventional, Air Consumption – 300 L/min [10.7 cfm], Recommended Air Inlet Pressure – 3 Bar [45 psi], Typical Fluid Flow* – 150-250 ml/min, Typical Fan Pattern Size** – 270mm
• Part # PROC-120-C2-K = Type – Conventional, Air Consumption – 290 L/min [10.3 cfm], Recommended Air Inlet Pressure – 3 Bar [45 psi], Typical Fluid Flow* – 100-350 ml/min, Typical Fan Pattern Size** – 270mm
• Part # PROC-120-TE10-K = Type – Conventional, Air Consumption – 440 L/min [15.7 cfm], Recommended Air Inlet Pressure – 3 Bar [45 psi], Typical Fluid Flow* – 250-600 ml/min, Typical Fan Pattern Size** – 360mm

Trans-Tech

• Part # PRO-100-TE10-K = Type – Trans-Tech/Compliant, Air Consumption – 255 L/min [9.1 cfm], Recommended Air Inlet Pressure – 2 Bar [30 psi], Typical Fluid Flow* – 150-200 ml/min, Typical Fan Pattern Size** – 300mm
• Part # PRO-100-TE20-K = Type – Trans-Tech/Compliant, Air Consumption – 325 L/min [11.6 cfm], Recommended Air Inlet Pressure – 2 Bar [30 psi], Typical Fluid Flow* – 150-200 ml/min, Typical Fan Pattern Size** – 290mm
• Part # PRO-100-TE30-K = Type – Trans-Tech/Compliant, Air Consumption – 375 L/min [13.3 cfm], Recommended Air Inlet Pressure – 2 Bar [30 psi], Typical Fluid Flow* – 200-300 ml/min, Typical Fan Pattern Size** – 300mm
• Part # PRO-100-TE40-K = Type – Trans-Tech/Compliant, Air Consumption – 355 L/min [12.6 cfm], Recommended Air Inlet Pressure – 2 Bar [30 psi], Typical Fluid Flow* – 250-400 ml/min, Typical Fan Pattern Size** – 380mm
• Part # PRO-100-TE50-K = Type – Trans-Tech/Compliant, Air Consumption – 425 L/min [15.1 cfm], Recommended Air Inlet Pressure – 2 Bar [30 psi], Typical Fluid Flow* – 250-400 ml/min, Typical Fan Pattern Size** – 300mm

HVLP

• *** Part # PRO-100-HV30-K = Type – Trans-Tech/Compliant, Air Consumption – 450 L/min [16.0 cfm], Recommended Air Inlet Pressure – 1.75 Bar [26 psi], Typical Fluid Flow* – 160-200 ml/min, Typical Fan Pattern Size** – 315mm

Air Cap / Fluid Tip Combinations

Literature:

• Manual

Binks, which DeVilbiss is a part of, charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.

Contact: 503-545-3176
