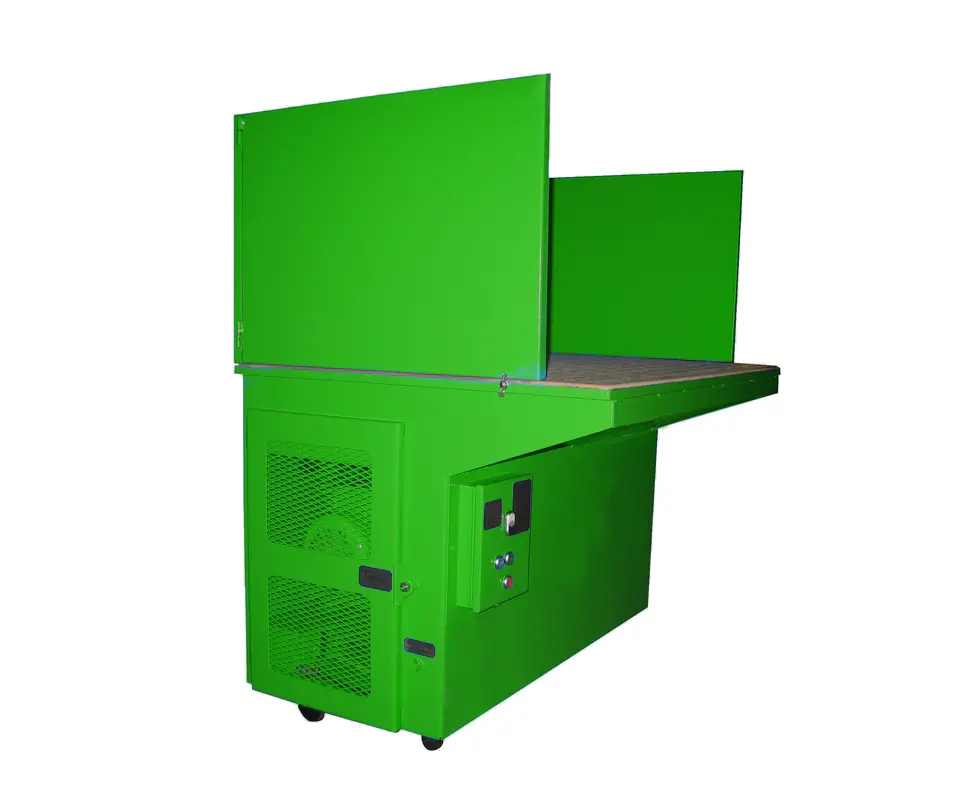

Denray 3648SD Downdraft Cartridge Filtration System

Description

DENRAY DOWNDRAFT CARTRIDGE FILTER SYSTEMS

Manufacturer: Denray

Part #: 3648SD

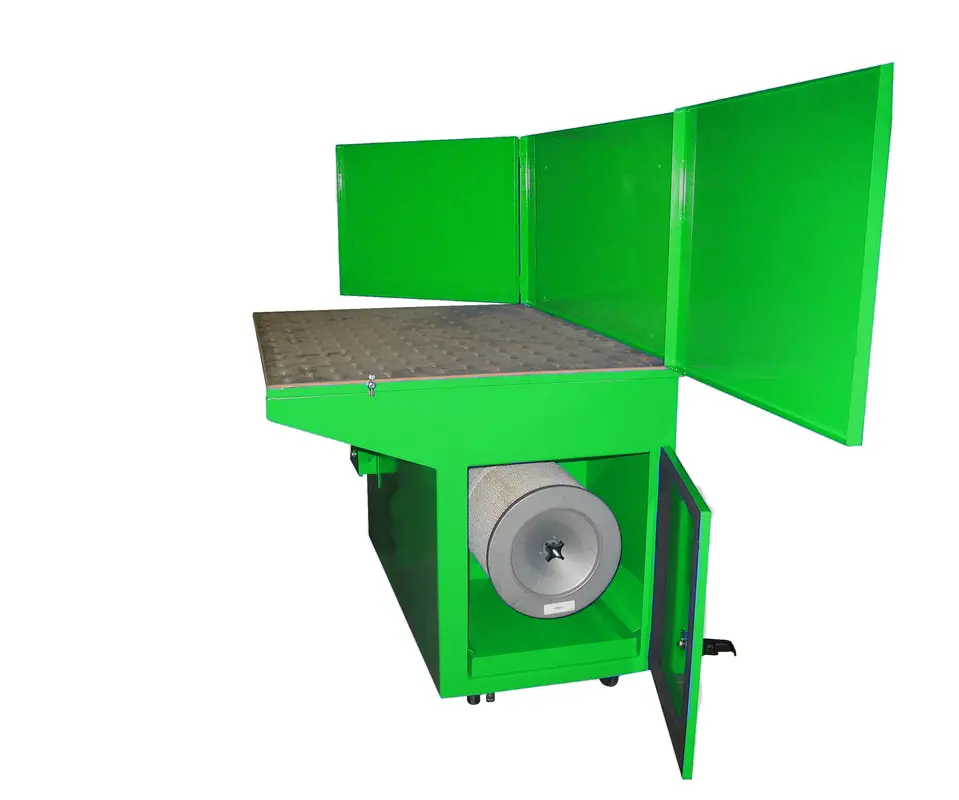

Description: This model is perfect for small shops, accommodating situations where sitting is preferred. Complete with Denray “Jet Pulse” push-button cleaning, the 3648SD comes with an 80/20 cartridge filter that cleans at 99.95% capture rate at .5 micron efficiency. This model comes standard with casters, a rubber-coated top, and three-sided 20″ safety shield.

• 36″ x 48″
• 34″ HEIGHT
• 1.5 HP MOTOR
• 2400 CFM
• 65 DECIBELS SOUND LEVEL

SINGLE-PHASE

• 115 VOLTAGE (14 AMPS)
• 220 VOLTAGE (7 AMPS)

THREE-PHASE

• 230 VOLTAGE (4.4 AMPS)
• 460 VOLTAGE (2.2 AMPS)
• 575 VOLTAGE (1.9 AMPS)

Additional Options:

• Explosion Proof Motor (3 Phase only)
• Light Bar
• Casters
• Auto-timer
• Muffler (reduces sound level 10-12 dbs.)
• 100% Spunbond Polyester Filters
• Carbon Filter Bank (odor only)
• HEPA Filter bank
• Three-sided Hinged Safety Shield
• Magnehelic Gauge
• HDPE Plastic Tabletop
• Hydraulic Height Adjustment
• Larger Motor/Fan Upgrade

Parts and Accessories:

• Automated Cartridge Filter Cleaner

Literature – Height Options
FOB Mount Vernon, Missouri – You will be contacted with a freight quote or you can arrange your own freight.  Forklift required at the time of delivery.
