Defelsko PosiTest Coating Thickness Measurement Device

Description

PosiTest®

Manufacturer: DeFelsko

Part #: F, FM, G, GM

Description: Magnetic Coating Thickness Gages for Non-Magnetic Coatings on Steel

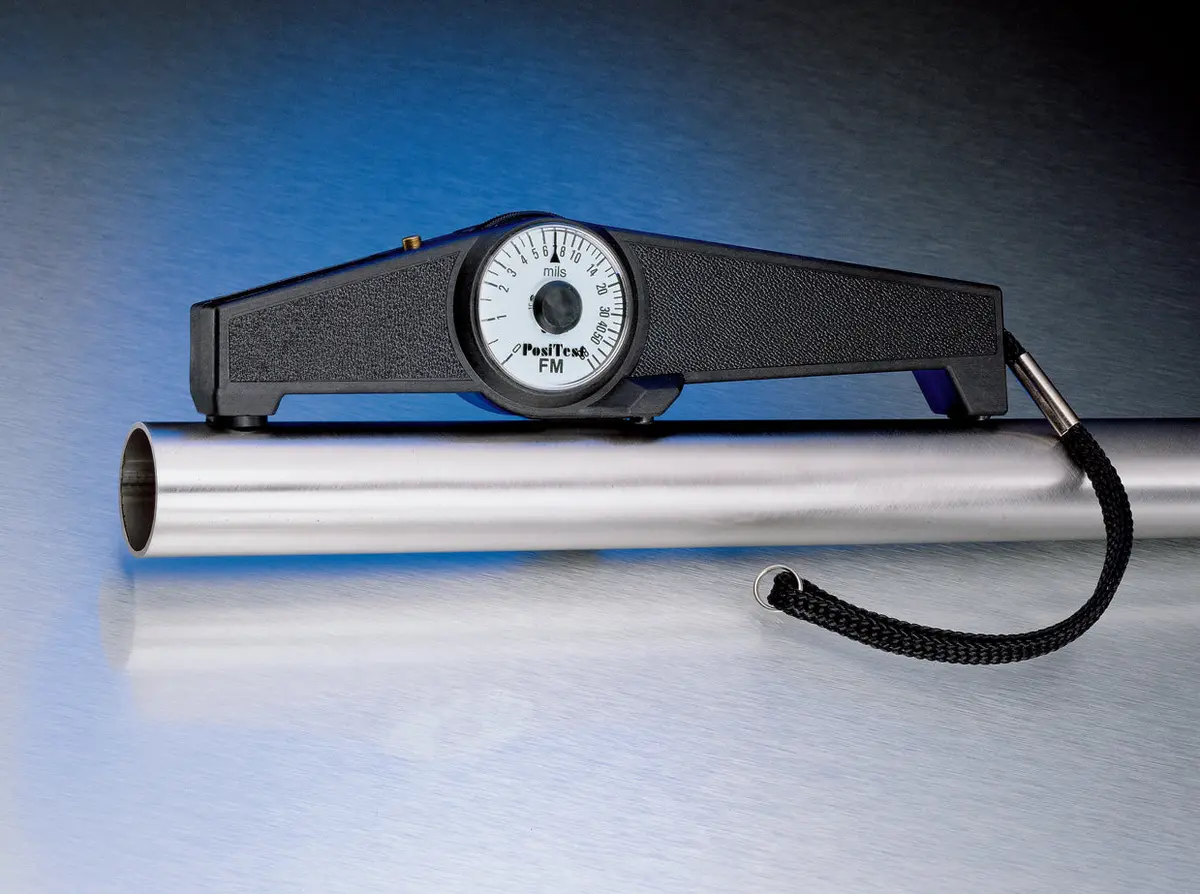

PosiTest magnetic pull-off thickness gage (banana gauge) for the non-destructive measurement of non-magnetic coatings (paint, enamel, galvanizing, metalizing, plating, etc.) on steel.

4 Models Available:

• PosiTest FM – Scale: FM, 0-80 mils. For hot dip galvanizing, hard chrome metalizing, paint, enamel, plastic coatings on steel.
• PosiTest F – Scale: F, 0-2000 µm. For hot dip galvanizing, hard chrome metalizing, paint, enamel, plastic coatings on steel.
• PosiTest GM – Scale: GM, 0-8 mils. For electroplating, thin paint films, phosphating on steel.
• PosiTest G – Scale: G, 0-200 µm. For electroplating, thin paint films, phosphating on steel.

Features:

• Highly wear resistant Carbide Probe for longest life and continuous accuracy
• Extra rugged housing, not affected by mechanical shock, water, acid or solvents
• Unique overall design, fully supported, positive positioning, no pivoting tendencies during measurement
• Positive visual and audible indicators to designate when thickness reading is established
• “V” grooves in probe housing and gage base allow correct positioning on cylindrical objects
• Certificate of Calibration showing traceability to PTB included (Long Form)
• Made in USA flag with black text below
• Conforms to ASTM D7091/B499, ISO 2808 and others

Accurate

• Certificate of Calibration showing traceability to PTB included with every gage
• Matching Calibration Standards and Procedures available for every model
• Highly wear resistant Carbide Probe for longest life and continuous accuracy
• Remove center of dial cover for easy calibration adjustment
• Conforms to national and international standards

Durable

• Extra rugged housing, not affected by mechanical shock, water, acid or solvents
• Unique overall design, fully supported, positive positioning, no pivoting tendencies during measurement
• Can be used fully supported or with only the front probe area contacting the surface
• Functions on a permanent rare-earth cobalt magnet
• No batteries/electronics
• 2 year warranty

Simple

• Positive visual and audible indicators to designate when thickness reading is established
• “V” grooves in probe housing and Gage base allow correct positioning on cylindrical objects
• Compact, lightweight, precisely balanced, independent of gravity – can be used in any position
• GO/NO-GO button can be pre-set for rapid measurement
• Probe contact and dial rotation all in a one-finger operation
• Furnished with wrist strap and instructions in a high quality leather case with belt loops for your convenience

Literature:

• Manual
• PDF
