Binks Trophy Series AA 1600
Air Assisted Airless Spray Guns
Manufacturer: Binks
Product Number: Varies
Description:
The new Binks Trophy AA combines industry experience, design, and technology in our all-new Air Assisted Airless spray gun. Designed to handle the toughest of applications, the Trophy AA is purpose built to maximize spray quality, increase efficiency, reduce downtime, and be environmentally responsible, while providing the light-weight, ergonomically sculpted fit and feel that operators demand.
A new range of AA10+ Air Caps, as well as an innovative replaceable tip seal, places the Binks Trophy AA firmly at the fore-front of Air Assisted Airless spray gun design. Having a low trigger force enhances control while significantly reducing operator fatigue and the chances of RSI.
Suitable On These Materials:
-
Solvent OR Waterborne Coatings
-
Stains, Varnishes, & Lacquers
-
Inks & Dyes
-
Sealers & Undercoats
-
Synthetic & Enamel Paints
-
. . . Plus many others
Features:
-
Light weight gun with ergonomic handle reduces
operator stress and fatigue -
Light trigger-pull design for less operator strain & RSI
-
Easy to remove “IN-LINE” needle reduces repair time
-
One tool trigger removal speeds up maintenance and
downtime -
Adjustable packing can be tightened without
disassembly -
Anodized aluminum air caps guard against corrosion
-
HVLP and LVMP Technologies provide a wider choice of
spray options -
l Unique Twist Tip option quickly & easily removes clogs
Two Pressure Models Available
Trophy AA 1600 (1600 psi/110 bar)
-
With PEEK fluid seat— Ideal For Wood, Metal, Commercial Vehicles, And Aerospace Applications
Trophy AA 4400 (4400 psi/303 bar)
-
With Tungsten Carbide seat—For High Viscosity Fluids And Heavy Industrial Applications
Literature:
- Manual
Specifications
|
Trophy AA 1600 |
Trophy AA 4400 |
|
|
Maximum Fluid Pressure: |
1,600 psi (110 bar) |
4,400 psi (303 bar) |
|
Maximum Air Inlet Pressure: |
105 psi (7 bar) |
105 psi (7 bar) |
|
Gun Body Material: |
Forged Aluminum |
Forged Aluminum |
|
Fluid Path Material: |
Stainless Steel |
Stainless Steel |
|
Fluid Seat Material: |
PEEK |
Tungsten Carbide |
|
Fluid Inlet Connection: |
¼” NPS (m) |
¼” NPS (m) |
|
Air Inlet Connection: |
¼” BSP/NPS (m) |
¼” BSP/NPS (m) |
Trophy AA 1600 Gun Assemblies
|
Package #1 Includes: |
The Binks Trophy AA 1600 psi Spray Gun |
|
An AA10+ Air Cap |
|
|
No Tip |
|
|
And PEEK Seat Material |
____________________________________________________
|
Package #2 Includes: |
The Binks Trophy AA 1600 psi Spray Gun |
|
An AA10+ Air Cap |
|
|
(1) 1310 Tip |
|
|
And PEEK Seat Material |
____________________________________________________
|
Package #3 Includes: |
The Binks Trophy AA 1600 psi Spray Gun |
|
(1) AA10+ Air Cap |
|
|
(1) 1510 Tip |
|
|
And PEEK Seat Material |
____________________________________________________
|
Package #4 Includes: |
The Binks Trophy AA 1600 psi Spray Gun |
|
(1) AA10+ Air Cap |
|
|
(1) 1514 Tip |
|
|
And PEEK Seat Material |
____________________________________________________
|
Package #5 Includes: |
The Binks Trophy AA 1600 psi Spray Gun |
|
(1) HVLP Twist Tip Air Cap Kit |
|
|
No Tip |
|
|
And PEEK Seat Material |
____________________________________________________
|
Package #6 Includes: |
The Binks Trophy AA 1600 psi Spray Gun |
|
(1) HVLP Twist Tip Air Cap Kit |
|
|
(1) 613 Tip |
|
|
And PEEK Seat Material |
____________________________________________________
|
Package #7 Includes: |
The Binks Trophy AA 1600 psi Spray Gun |
|
(1) HVLP Twist Tip Air Cap Kit |
|
|
(1) 615 Tip |
|
|
And PEEK Seat Material |
|
1600 Package |
Part Number |
Air Cap |
Technology |
Tip |
Seat Material |
|
Package #1 |
1600-HF0000 |
AA10+ |
HVLP |
— |
PEEK |
|
Package #2 |
1600-HF1310 |
AA10+ |
HVLP |
1310 |
PEEK |
|
Package #3 |
1600-HF1510 |
AA10+ |
HVLP |
1510 |
PEEK |
|
Package #4 |
1600-HF1514 |
AA10+ |
HVLP |
1514 |
PEEK |
|
Package #5 |
1600HT0000 |
54-5924-K Twist Tip |
HVLP |
— |
PEEK |
|
Package #6 |
1600-HT0613 |
54-5924-K Twist Tip |
HVLP |
613 |
PEEK |
|
Package #7 |
1600HF0615 |
54-5924-K Twist Tip |
HVLP |
615 |
PEEK |
Pump-Gun Outfits
New, complete Air Assisted pump and gun outfits featuring Binks MX pumps, Binks Trophy AA guns and all hoses are available.
Spare Parts List
|
Part Number |
Description |
Item Number |
|
54-6007 |
Air Valve Housing |
1 |
|
54-5935-K5 |
Needle Return Spring Kit (Multi-Pack) |
2 |
|
54-6131-K |
Spindle Seal & Spring Kit |
3 |
|
Rear Seal |
3a |
|
|
Air Valve Spring |
3b |
|
|
Valve Seal |
3c |
|
|
Front Seal |
3d |
|
|
54-5815 |
Spreader Valve Assembly |
4 |
|
Valve Stem |
4a |
|
|
Valve Body |
4d |
|
|
SN-71X-K2 |
O-Ring (Multi-Pack) |
4c |
|
Pin |
4b |
|
|
Snap Ring |
4e |
|
|
54-5937 |
Air Valve & Fluid Needle Assembly |
5 |
|
54-6114 |
Trigger Nut |
6 |
|
54-6115 |
Trigger Screw |
7 |
|
SPA-71-K5 |
Baffle Plate (Multi-Pack) |
8 |
|
SPA-71-K10 |
||
|
54-5811-K |
Fluid Nozzle & Gasket (Flat Tip) |
9 |
|
54-5833-K |
Fluid Nozzle & Gasket (Twist Tip) |
|
|
54-5799-K |
Fluid Nozzle & Gasket (Flat Tip 4400) |
|
|
54-5832-K |
Fluid Nozzle & Gasket (Twist Tip 4400) |
|
|
SPA-98-K5 |
Gasket (Multi-Pack) |
9a |
|
SPA-98-K10 |
||
|
Reversible Twist Tip |
10 |
|
|
54-5924-K |
HVLP Twist Tip Air Cap Assembly |
11 |
|
54-5925-K |
LVMP Twist Tip Air Cap Assembly |
|
|
Flat Tip Assembly |
12 |
|
|
Fine Finish Flat Tip Assembly |
||
|
54-6030-K |
AA10+ Air Cap Assembly |
13 |
|
54-5878-K |
9X-H+ Air Cap Assembly (4400-HF0000) |
|
|
54-5890-K |
AA10 Air Cap Assembly (4400-H20000) |
|
|
54-5797-K |
9X-L Air Cap Assembly (4400-LF0000) |
|
|
SN-9-K3 |
Air Inlet (Multi-Pack) |
14 |
|
Slotted Round Head Screw, 1/4”—20 x 1/2” |
15 |
|
|
54-6019 |
Trigger |
16 |
|
54-6015 |
Fluid Tube Assembly |
17 |
|
Fluid Tube Adapter |
17a |
|
|
54-5896-K5 |
Fluid Tube Retainer (Multi-Pack) |
17b |
|
54-5899 |
Ferrule Nut |
17c |
|
54-6017 |
Filter Bracket |
17d |
|
54-1835 |
Fluid Filter, 100 Mesh |
17e |
|
Disc Filter Body ¼” NPS 9M0 |
17f |
|
|
54-4726-K |
Disc Filter Retainer |
17g |
|
54-5897 |
JIC #5 Fluid Inlet Fitting (Sold Separately) |
18 |
|
72-2360 |
Swivel Adapter, ¼” NPS M X F (Sold Separately) |
19 |
|
SPN-7 |
Tool |
20 |
1600 Flat Tip Air Cap Assemblies
|
HVLP |
HVLP |
HVLP |
HVLP |
LVMP |
|||
|
54-6030-K |
54-5890-K |
54-5878-K |
54-5795-K |
54-5797-K |
|||
|
Item # |
Part # |
Description |
AA10+ |
AA10 |
9X-H+ |
9X-H |
9X-L |
|
1 |
— |
Seal Removal Tool |
— |
— |
— |
— |
— |
|
2 |
Replaceable Tip Seal |
— |
— |
— |
— |
— |
|
|
3 |
RS Spray Tip |
— |
— |
— |
— |
— |
|
|
4 |
— |
Air Cap Color |
Blue |
Brown |
Black |
Silver |
Silver |
|
5 |
54-6029 |
Retaining Ring With Seals |
1 |
1 |
1 |
1 |
1 |
|
6 |
54-5794 |
Flat Tip Guard |
1 |
1 |
1 |
1 |
1 |

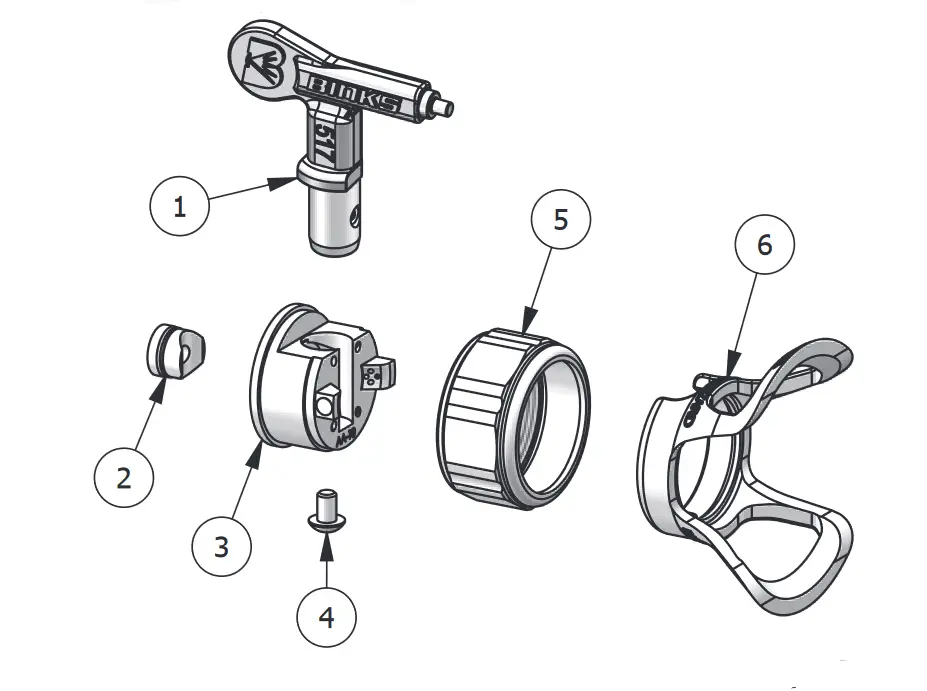

1600 Reversible Twist Caps
|
HVLP |
LVMP |
|||
|
54-5924-K |
54-5925-K |
|||
|
Item # |
Part # |
Description |
AA10 |
9X-L |
|
1 |
Twist Tip |
— |
— |
|
|
2 |
54-7539-K2 |
Twist Tip Brace |
1 |
1 |
|
3 |
— |
Twist Tip Air Cap Color |
Black |
Silver |
|
4 |
54-5930 |
Retaining Screw |
1 |
1 |
|
5 |
— |
Twist Tip Retaining Ring |
1 |
1 |
|
6 |
— |
Twist Tip Guard |
1 |
1 |
