Binks MX1212 Air-Assisted Airless Spray Pump

Description

Air Assisted Airless 12:1 Piston Pump Systems

Manufacturer: Binks

Part #: MX1212XX-XXXXXXX

Description: MX1212: 1.2 gal/m output and 12:1 ratio

Binks MX Pumps are a completely new design in air-operated pump technology utilizing patented magnetic detents to provide fast changeover with virtually no pulsation. The result is paint delivery with less pulsation for a more consistent finish. The MX pistons are ceramic coated – the most durable surface available – for resisting wear from abrasive materials.

The MX Pumps are ideal for air assisted airless spray finishing, supporting 1 to 2 spray guns, with thin to medium viscosity coatings.

• Wood Stains, Varnishes, Lacquers
• Primers & Sealers
• Solvent & Waterborne Coatings
• Enamel & Polyurethane

MX1212 Pump Specifications:

Ratio:	12:1
Maximum air inlet pressure:	8 bar [116 psi]
Maximum fluid pressure:	96 bar [1390 psi]
Displacement per cycle:	72 cc [2.4 oz]
Output @ 60 cycles / min:	4.3 l/m [1.2 US gal/m]
Air consumption @ 20 cycles/min and 8 bar [116 psi] air inlet pressure:	147 LPM [5.2 SCFM]
Maximum recommended continuous cycle rate [cycles/min]:	20 cycles/min
Air inlet connection:	3/8″ BSP(f) and 1/4″ NPS(m)
Air piston diameter:	85 mm [3.3 in]
Stroke length:	75 mm [3.0 in]
Fluid inlet connection:	3/4″ NPS(m)
Fluid outlet connection:	3/8″ BSP(m) / 3/8″ NPS(m)
Wetted parts materials of construction:	Stainless Steel, Tungsten Carbide, Hard Chrome, PTFE, Polyethylene, Leather
Sound level:	96.2 dB

When selecting a model, the following options are available:

Seals: PTFE/UHMWPE (PU) or UHMWPE/U-Cup Seals (UC).

Spray Gun: None (0) or TROPHY AA 1600 Flat Tip (Q).

Air Control: None (0) or Air Control (D).

Mount: Cart (C) or Wall (W) Mount.

Filter: None (0) or 100 Mesh (1).

Siphon: None (0), 5 Gallon (S) or 55 Gallon (T).

Hose: None (00) or 25ft/whip (25).

• Part # MX1212PU-0DC0000
• Part # MX1212PU-0DC0S00
• Part # MX1212PU-0DC1S00
• Part # MX1212UC-00C1S00
• Part # MX1212UC-QDC1S25

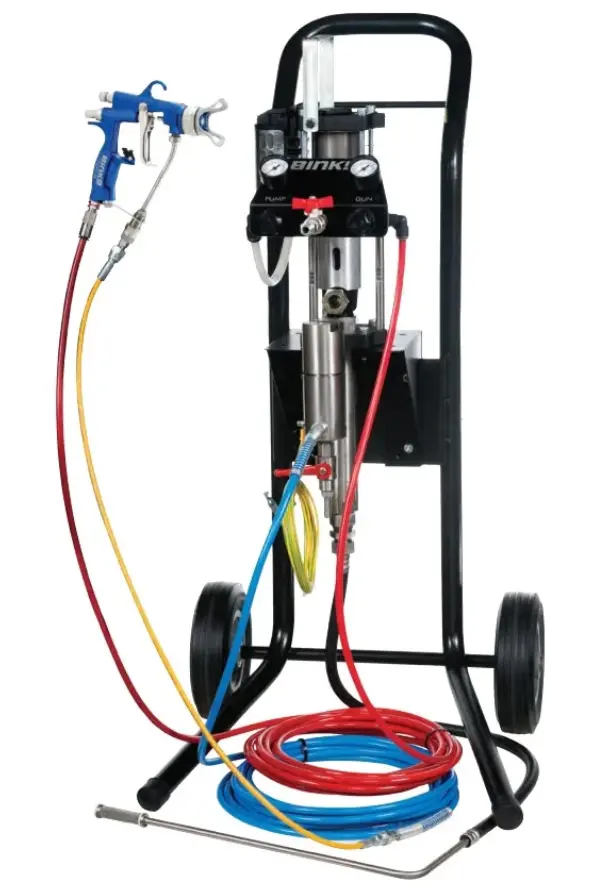

Cart Mounted Spare Parts

Ref. No.	Part No.	Description	Qty
1	MX1212PL MX1212PP MX1212PU MX1212UC	BARE PUMP ASSEMBLY (PTFE/LEATHER) BARE PUMP ASSEMBLY (PTFE) BARE PUMP ASSEMBLY (PTFE/UHMW) BARE PUMP ASSEMBLY (U-CUPS)	1
2	0909-1600-HF1310 0909-1600-HT0613 1600-HF1310 1600-HT0613 0811-7500-1	AA1600 GUN ASSEMBLY (1310 FLAT TIP) AA1600 GUN ASSEMBLY (613 TWIST TIP) TROPHY AA1600 GUN ASSEMBLY (1310 FLAT TIP) TROPHY AA1600 GUN ASSEMBLY (613 TWIST TIP) AIRLESS 75 GUN ASSEMBLY	1
3	71-4995	MATERIAL HOSE (3/16″ ID X 25′, 1900 PSI)	25’=1 50’=2
4	72-791	DM NIPPLE (1/4″ NPS, SS) [NOT SHOWN]	IF 50′ HOSE = 1
5	71-4803 71-4804	AIR HOSE (3/8″ OD TUBE X 28FT) AIR HOSE (3/8″ OD TUBE X 53FT)	IF 25′ OR 50′ HOSE = 1
6	71-6844	MATERIAL HOSE (1/8″ ID X 3′, 5000 PSI)	IF 25′ OR 50′ HOSE = 1
7	72-2332	SWIVEL ADAPTER (1/4″ NPS M X F) [NOT SHOWN]	1 IF GUN TYPE = P
8	54-4976	ADAPTER FITTING (3/8″ OD TUBE X 1/4″ NPS F)	1 IF GUN TYPE = E / F
9	0115-010180	AIR CONTROL ASSEMBLY	1 IF AIR CONTROL = D
10	83-4233	DM NIPPLE (1/4″ NPS/NPT X 3/8″ NPS/NPT)	1 IF AIR CONTROL = D
11	0115-010186	TROLLEY ASSEMBLY	1
12	0115-010179	PUMP BRACKET	1
13	0115-010001	SOCKET HEAD CAP SCREW (M8 X 35mm)	4
14	0115-010030	HEX NUT (M8)	8
15	0115-010031	LOCK WASHER (M8)	4
16	0115-010035	FLAT WASHER (M8)	8
17	0115-010326 0115-010630	S.S. FILTER ASSEMBLY (100 MESH) S.S. FILTER ASSEMBLY (200 MESH)	1 IF FILTER TYPE = 1 1 IF FILTER TYPE = 2
18	103-1238	SWIVEL ADAPTER (3/8″ NPS F X 1/4″ NPT/NPS M)	1 IF NO FILTER
19	41-17262 0115-010381	SIPHON TUBE ASSEMBLY (5 GALLON) SIPHON TUBE ASSEMBLY (55 GALLON)	1 IF SIPHON SIZE = S 1 IF SIPHON SIZE = T
20	0115-010227	SOCKET HEAD CAP SCREW (M8 X 25)	4
21	85-521	SWIVEL ELBOW (3/8″ OD TUBE X 1/4″ NPT)	1 IF AIR CONTROL = D

• Part # MX1212PU-0DW0000
• Part # MX1212PU-0DW0S00
• Part # MX1212PU-0DW1S00
• Part # MX1212PU-0DW1T00
• Part # MX1212PU-QDW1S25
• Part # MX1212UC-0DW0000
• Part # MX1212UC-QDW1S25

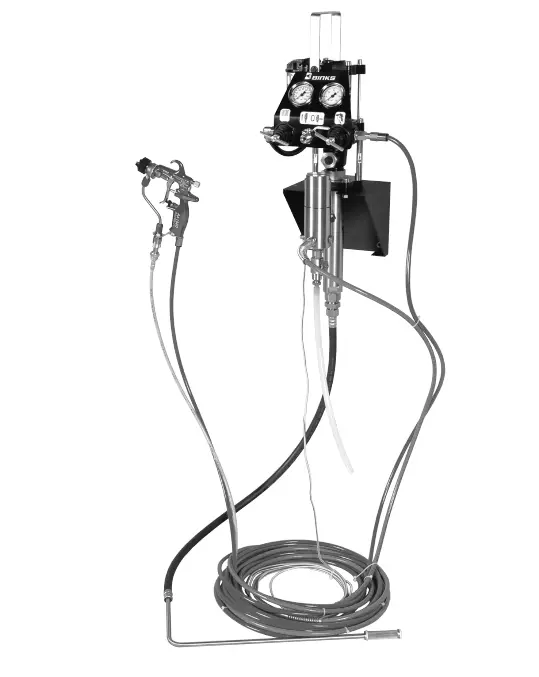

Wall Mounted Spare Parts

Ref. No.	Part No.	Description	Qty
1	MX1212PL MX1212PP MX1212PU MX1212UC	BARE PUMP ASSEMBLY (PTFE/LEATHER) BARE PUMP ASSEMBLY (PTFE) BARE PUMP ASSEMBLY (PTFE/UHMW) BARE PUMP ASSEMBLY (U-CUPS)	1
2	0909-1600-HF1310 0909-1600-HT0613 1600-HF1310 1600-HT0613 0811-7500-1	AA1600 GUN ASSEMBLY (1310 FLAT TIP) AA1600 GUN ASSEMBLY (613 TWIST TIP) TROPHY AA1600 GUN ASSEMBLY (1310 FLAT TIP) TROPHY AA1600 GUN ASSEMBLY (613 TWIST TIP) AIRLESS 75 GUN ASSEMBLY	1
3	71-4995	MATERIAL HOSE (3/16″ ID X 25′, 1900 PSI)	25’=1 50’=2
4	72-791	DM NIPPLE (1/4″ NPS, SS) [NOT SHOWN]	IF 50′ HOSE = 1
5	71-4803 71-4804	AIR HOSE (3/8″ OD TUBE X 28FT) AIR HOSE (3/8″ OD TUBE X 53FT)	IF 25′ OR 50′ HOSE = 1
6	71-6844	MATERIAL HOSE (1/8″ ID X 3′, 5000 PSI)	IF 25′ OR 50′ HOSE = 1
7	72-2332	SWIVEL ADAPTER (1/4″ NPS M X F) [NOT SHOWN]	1 IF GUN TYPE = P
8	54-4976	ADAPTER FITTING (3/8″ OD TUBE X 1/4″ NPS F)	1 IF GUN TYPE = E / F
9	0115-010180	AIR CONTROL ASSEMBLY	1 IF AIR CONTROL = D
10	83-4233	DM NIPPLE (1/4″ NPS/NPT X 3/8″ NPS/NPT)	1 IF AIR CONTROL = D
11	0115-010179	PUMP BRACKET	1
12	0115-010001	SOCKET HEAD CAP SCREW (M8 X 35mm)	4
13	0115-010030	HEX NUT (M8)	4
14	0115-010031	LOCK WASHER (M8)	4
15	0115-010035	FLAT WASHER (M8)	4
16	0115-010326 0115-010630	S.S. FILTER ASSEMBLY (100 MESH) S.S. FILTER ASSEMBLY (200 MESH)	1 IF FILTER TYPE = 1 1 IF FILTER TYPE = 2
17	103-1238	SWIVEL ADAPTER (3/8″ NPS F X 1/4″ NPT/NPS M)	1 IF NO FILTER
18	41-17262 0115-010381	SIPHON TUBE ASSEMBLY (5 GALLON) SIPHON TUBE ASSEMBLY (55 GALLON)	1 IF SIPHON SIZE = S 1 IF SIPHON SIZE = T
19	85-521	SWIVEL ELBOW (3/8″ OD TUBE X 1/4″ NPT)	1 IF AIR CONTROL = D

Literature:

• Service Manual
• Installation Manual

Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.

Contact: 503-545-3176
