Description

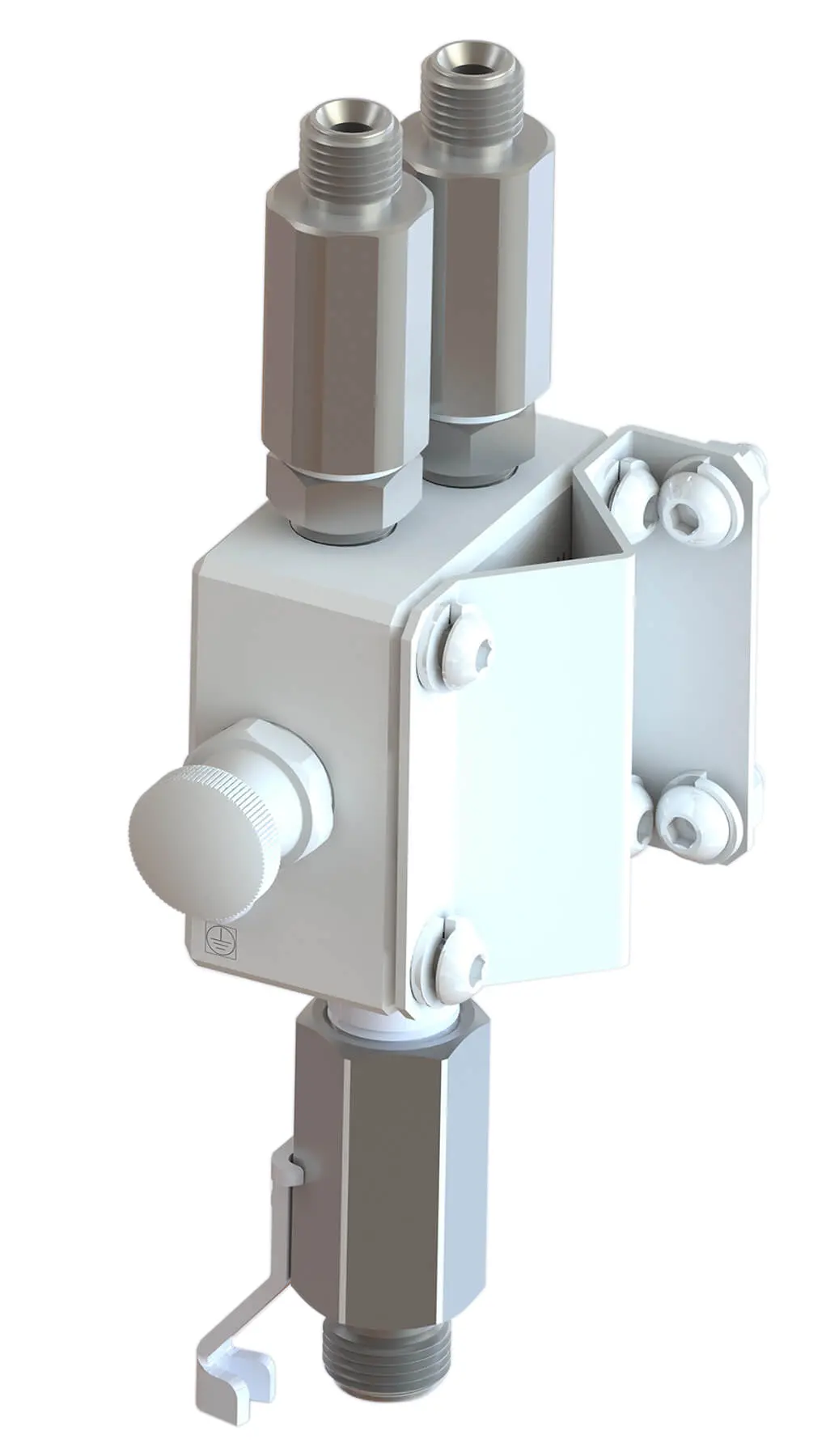

Binks Quick Cleaner
Manufacturer: Binks
Part Number: HD-QCH-500
Description: The Quick Cleaner will help you to reduce your waste disposal costs and lower your VOC output. Flush times are lowered, decreasing color change times and improving overall process efficiency. Low pressure (less than 100psi) applications only
Reduces solvent consumption during flush sequences by 30% – 50%
Reduce equipment flush times by 20%-60%
The Quick Cleaner simultaneously mixes solvent and compressed air to scrub paint lines and fluid passages quickly and thoroughly, eliminating color contamination. Easily fitted into automatic installations for immediate solvent savings. Both manual and automatic applications can benefit from quicker color change times with adjustments to the flush sequence.
Features:
- Simultaneously mixes solvents and compressed air to scrub paint lines and passages reducing solvent usage and cleaning time
- Eliminates potential color contamination
- Infinite adjustability allows for the proper solvent-air ratio to ensure clean fluid passages
- All wetted parts are stainless steel, PTFE and plated brass to work with all materials and solvents
- Check valves on both air and fluid inlets prevent possible backflow contamination
- Fit and forget; no wear parts requiring regular maintenance
- Easily installed with multiple mounting methods
- Connectable to either NPSM or BSP threads
Specifications:
| Max Inlet Working Pressure (Air/Fluid): | 6.9 Bar (100 psi, 10.69 MPa) |
| Fluid Passage Materials: | Stainless Steel, PTFE, Nickel Plated Brass |
| Inlet Threads Compatible With: | 1/4 BSP, 1/4 NPSM |
| Outlet Threads Compatible With: | 3/8 BSP, 3/8 NPSM |
Literature:
- Manual
Parts and Accessories:
| Ref. No. | Part No. | Description |
| 1 | HD-QCH-001 | Quick Cleaner Replacement Body |
| 2 | SSBV-6S-316 | Ball Valve |
| 3 | 6T-6T | 3/8” Nipple |
| 4 | HD-QCH-012K4 | Kit of Four Busing Seals |
| 5 | HD-QCH-011 | Air Adjustment Valve |
| 6 | HD-QCH-013 | Fluid Adjustment Valve |
| 7 | 6T-4T | 3/8” to ¼” Nipple |
| 8 | SSCV-4-6T | Check Valve |
| 9 | QSK-006 | Earth Lead Kit |
| 10 | HD-QCH-002 | Mounting Bracket Kit |
Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
