FX4 Fluid Section (U-Cup seals)
Manufacturer: Binks
Part #: FX4UC
Description: FX4 Fluid Section (U-Cup seals)
Specifications:
| Maximum fluid pressure: | 248 bar |
| Displacement per cycle: | 72 cc |
| Output @ 60 cycles / min: | 4.3 l/m [1.1 gal/m] |
| Fluid inlet size: | 3/4″ NPS(m) |
| Fluid outlet size: | 3/8″ BSP(m) & 3/8″ NPS(m) |
| Weight: | 6.4 kg [14.1 lbs] |
| Wetted parts materials of construction: | Stainless Steel, Tungsten Carbide, PTFE, Polyethylene, Leather, Ceramic |

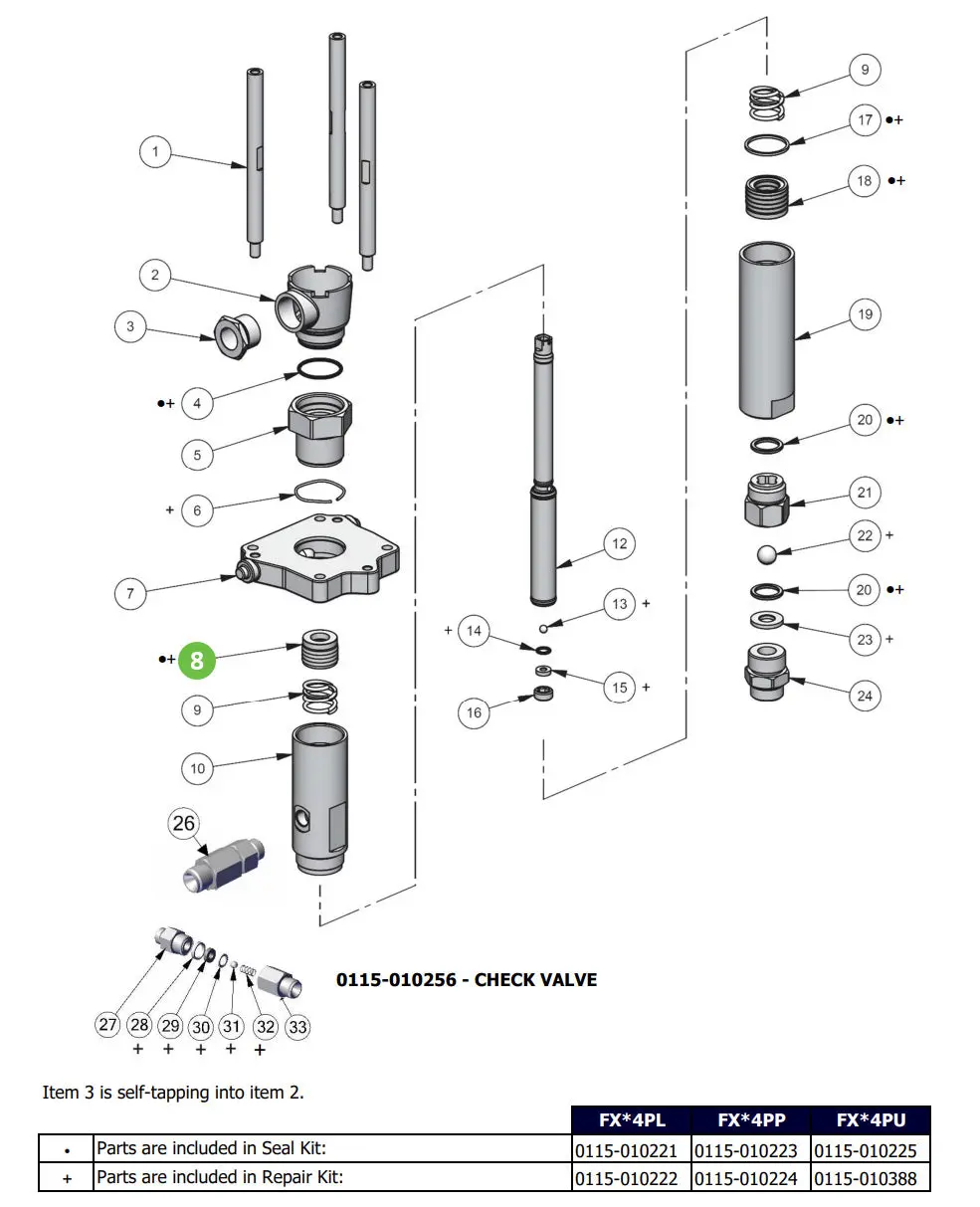

| Ref. No. | Part No. | Description | Qty |
| 1 | 0115-010646 | PUMP TIE ROD | 3 |
| 2 | 0115-010059 | SOLVENT CUP | 1 |
| 3 | 0115-010060 | SIGHT GLASS | 1 |
| 4•+ | 0115-010061 | SOLVENT CUP SEAL | 1 |
| 5 | 0115-010062 | PACKING ADAPTER | 1 |
| 6+ | 0115-010058 | WAVE SPRING | 1 |
| 7 | 0115-010204 | ADAPTER PLATE MACHINING | 1 |
| 8•+ | 0115-010166 | UPPER SEAL CARTRIDGE ASSEMBLY | 1 |
| 9 | 0115-010055 | UPPER PUMP TUBE | 1 |
| 11 | 0115-010063 | PUMP ROD | 1 |
| 12+ | 0114-014745 | UPPER BALL 6mm | 1 |
| 13+ | 0115-010065 | ROD SEAT SEAL | 1 |
| 14+ | 0115-010066 | ROD SEAT | 1 |
| 15 | 0115-010067 | ROD SEAT NUT | 1 |
| 16•+ | 0115-010169 | LOWER SEAL CARTRIDGE ASSEMBLY | 1 |
| 17 | 0115-010056 | LOWER PUMP TUBE | 1 |
| 18•+ | 0115-010068 | LOWER SEAT SEAL | 2 |
| 19 | 0115-010057 | LOWER BALL CAGE | 1 |
| 20+ | 0114-014237 | LOWER BALL 15mm | 1 |
| 21+ | 0115-010069 | LOWER SEAT | 1 |
| 22 |
0115-010149 0115-010070 |
INLET 3/4″ NPS(m) FX4 ONLY INLET 1/2″ NPS(m) FXL4 ONLY |
1 |
| 24 | 0115-010256 | FX4 CHECK VALVE ASSEMBLY – FXL4 ONLY | 1 |
| 25 | 0115-010258 | FLUID OUTLET FITTING | 1 |
| 26+ | 0115-010259 | SEAL | 1 |
| 27+ | 0115-010066 | ROD SEAT | 1 |
| 28+ | 0115-010065 | ROD SEAT SEAL | 1 |
| 29+ | 0114-014745 | UPPER BALL 6mm | 1 |
| 30+ | 0115-010087 | CHECK VALVE SPRING | 1 |
| 31 | 0115-010257 | CHECK VALVE HOUSING | 1 |
| • | Parts are included in Seal Kit (U-CUPS). | 0115-010219 |
| + | Parts are included in Repair Kit (U-CUPS). | 0115-010220 |
