Binks FX12UC U-Cup Fluid Section Assembly

Description

Fluid Section (U-Cup seals)

Manufacturer: Binks

Part #: FX12UC

Description: Fluid Section (U-Cup seals)

Specifications:

Maximum fluid pressure:	248 bar
Displacement per cycle:	72 cc
Output @ 60 cycles / min:	4.3 l/m [1.1 gal/m]
Fluid inlet size:	3/4″ NPS(m)
Fluid outlet size:	3/8″ BSP(m) & 3/8″ NPS(m)
Weight:	6.4 kg [14.1 lbs]
Wetted parts materials of construction:	Stainless Steel, Tungsten Carbide, PTFE, Polyethylene, Leather, Ceramic

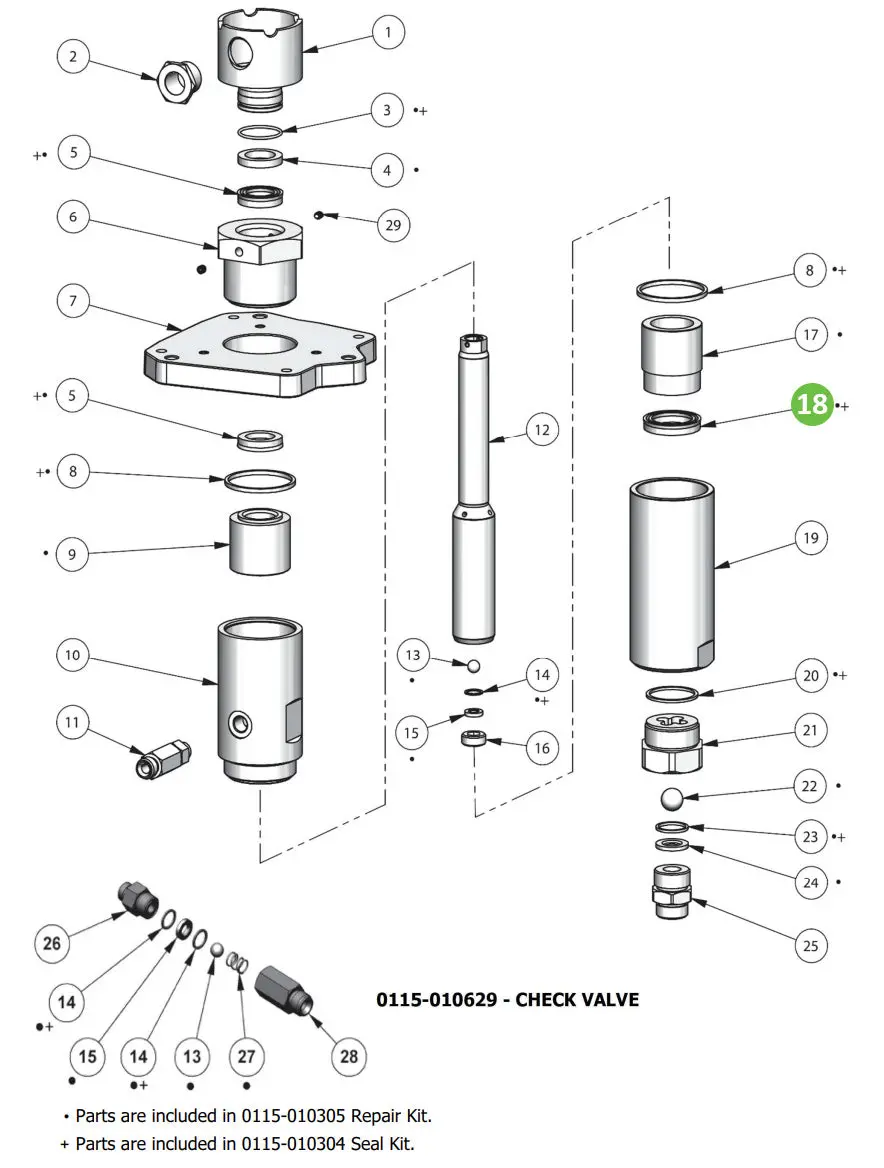

Ref. No.	Part No.	Description	Qty
1	0115-010232	SOLVENT CUP	1
2	0115-010294	SIGHT GLASS	1
3•+	0115-010231	O-RING	1
4•	0115-010230	SPACER	1
5 •+	0115-010161	UPPER U-CUP SEAL	2
6	0115-010229	UPPER U-CUP RETAINER	1
7	0115-010205	PUMP ADAPTER PLATE	1
8•+	0115-010143	PUMP TUBE SEAL	2
9•	0115-010162	UPPER U-CUP SPACER	1
10	0115-010137	UPPER PUMP TUBE	1
11	0115-010269	CHECK VALVE ASSEMBLY	1
12	0115-010142	PUMP ROD	1
13•	0114-014022	UPPER BALL 10mm	2
14•+	0115-010144	UPPER SEAT SEAL	3
15•	0115-010145	UPPER SEAT	2
16	0115-010146	UPPER SEAT RETAINER	1
17•	0115-010164	LOWER U-CUP SPACER	1
18•+	0115-010163	LOWER U-CUP SEAL	1
19	0115-010138	LOWER PUMP TUBE	1
20•+	0115-010140	LOWER BALL CAGE SEAL	1
21	0115-010139	LOWER BALL CAGE	1
22•	0114-014025	LOWER BALL 18mm	1
23•+	0115-010147	LOWER SEAT SEAL	1
24•	0115-010148	LOWER SEAT	1
25	0115-010149	INLET 3/4″ NPS(m) FX12/FXL12	1
26	0115-010258	FLUID OUTLET FITTING	1
27•	0115-010270	CHECK VALVE SPRING	1
28	0115-010271	CHECK VALVE HOUSING	1
29	0114-018251	SCREW SET	2

•	Parts are included in Repair Kit	0115-010305
+	Parts are included in Seal Kit	0115-010304
