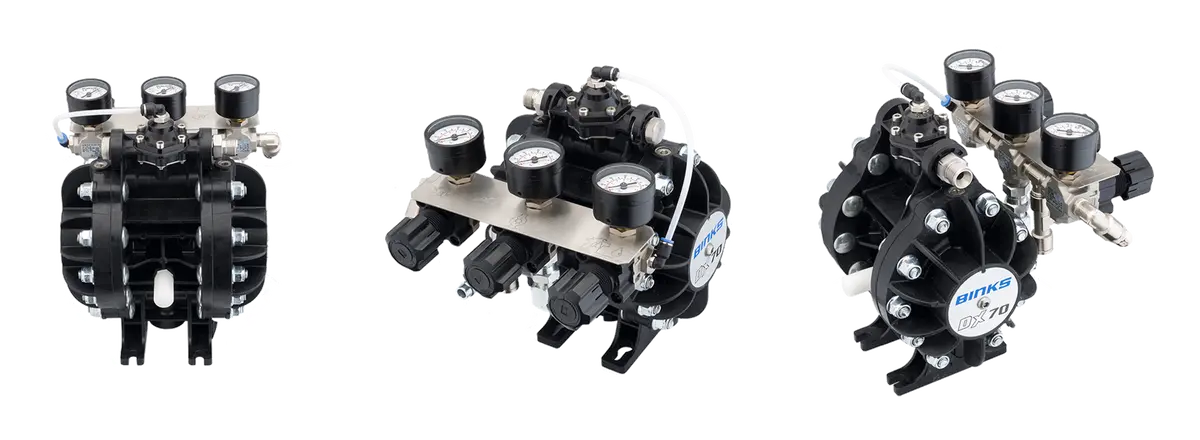

Binks DX70N Pump with No-Fluid Regulator

Description

 DX70N Pump No Fluid Regulator

Manufacturer: Binks

Part Numbers:

• DX70N = Without Fluid Regulator, No Fittings
• DX70N-FF = Without Fluid Regulator, Female Inlet/Female Outlet
• DX70N-MM = Without Fluid Regulator, Male Inlet/Male Outlet

Description:

The DX70 is a high specification, air-powered 1:1 ratio double diaphragm pump specifically developed for the direct supply of paints and materials to spray guns. The pump features a unique diaphragm no-crease shape for a long and durable working life DX70 also includes a “built-in” fluid regulator which ensures a constant and virtually pulse-free fluid delivery, for direct feed to spray guns without the expense and complications of an additional fluid regulator or surge chamber.

The Binks DX70 range features bare pumps are assembled pump packages, complete and  “ready to spray” matched with our World-renowned DeVilbiss spray guns. The pump is perfect for use with ALL types of spray gun technologies including, Conventional, Compliant Trans-Tech©, HVLP, LVLP, and low-pressure Electrostatic spray guns.

• Acetal pump body with stainless steel balls and soft seats for universal paint compatibility including ceramic glaze coatings
• The unique diaphragm design and “built-in” fluid regulator provide consistent pressure and readily adjustable paint flow
• The Non-stall air valve provides smooth, quiet, and surges free paint delivery of up to 1000 cc/ minute
• Clearly labeled Air regulators provide independent control of pump and spray gun fluid and air pressures
• Quick-release air, a fluid inlet, and outlet connections for faster maintenance
• Re-circulation/dump valve accessory for faster color changes reducing downtime, saving time and money
• Pump outfit mountings include Cart, Wall, 25L Pail & Tripod outfits with or without spray guns & hoses
• Outfits with Fluid filters are available for finer paint finishes

APPLICATIONS

• Woodworking and Joinery
• Aerospace Industry
• Agricultural and Off-Road
• Potteries and Ceramic Glaze*
• Trade Coaters and Jobbers
• Marine Industry
• Truck and Bus
• Rail and Transport
• Plus Many Others

*The standard pump without fluid regulator can also be used on ceramic glaze applications.

TYPICAL MATERIAL/COATING TYPES

• Solvent and Water Based Paints and Materials
• Lacquers, Stains, and Varnishes
• Adhesives and Fillers
• Ceramics and Glaze*
• Sealers and Undercoats

Literature:

• Brochure
• Manual

Spare Parts

DXK-1 – Check Valve Seal Kit

DXK-2 – Check Valve Kit

DXK-3 – Diaphragm Kit

DXK-4 – Seal and Shaft Kit

DXK-15 – Fluid Regulator Kit

41-3312-S – Agitator Assembly Stainless Steel, 5 Gallon, Short Shaft

VS-58-60 – 60 Mesh Filter

DXA-F10ME100 – Filter Assembly

DXA-AC3 – Air Control (3 Regs)

Accessories

DXA-P25ME15 Pail suction tube

• DVX-89 – Strainer 1300µm/15 mesh

DXA-DVG – Dump valve kit for gravity feed

DXA-DVT – Dump valve kit for tripod & pail

DXA-DVW – Dump valve kit for wall/cart

DXA-AF – Agitator air supply

DXA-RP – Fluid regulator maximum pressure supply

Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.

Contact: 503-545-3176
