Air Motor Drive With 15:1 Gear Reduction
Manufacturer: Binks
Part Number: 31-452
Description: Air motor drive with 15:1 gear reduction. Includes air adjusting valve for speed control with hose and fittings for tank regulator connection.
| Specifications: |
| Type of Agitation | Used with: | Max rpm | Typical rpm |
| Indirect Geared Drive Agitator & Motor | QMG-417, 418, 419, & 420 & QMS-431, 432, 433, & 434 |
100 | 60-80 |

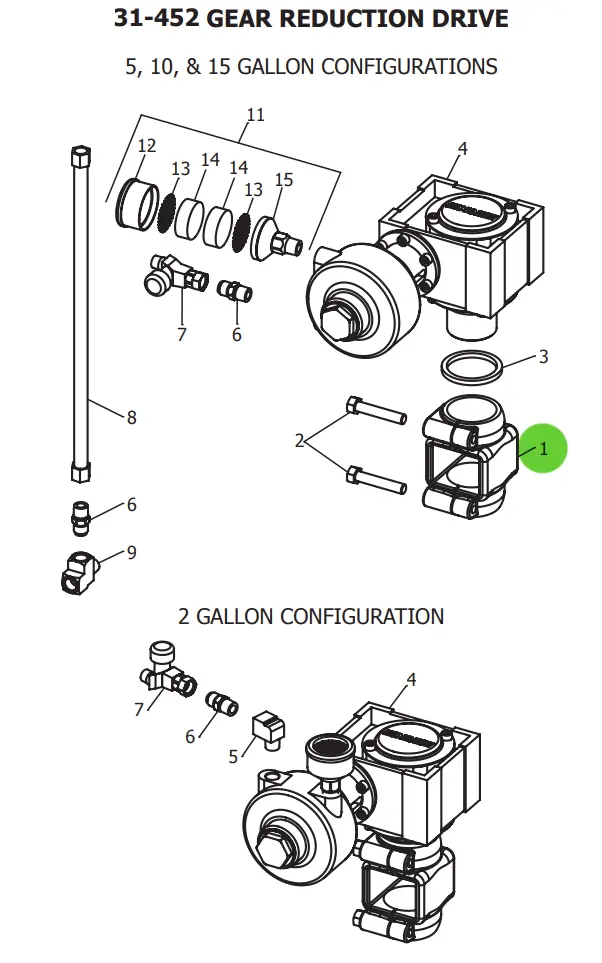

| 31-452 Gear Reduction Drive Spare Parts |
| Ref. No. | Part No. | Description |
| 1 | QMS-35 | AIR MOTOR SUPPORT |
| 2 | – | HEX HEAD CAP SCREW, 3/8-16 X 2″ |
| 3 | 32243-133 | WASHER |
| 4 | 31-434 | AGITATOR DRIVE |
| 4A | 31-437-K | AIR MOTOR WITH COUPLING (INCL W/ 31-434) |
| 4B | 31-435-K | 15:1 REDUCER WITH COUPLING (INCL W/ 31-434) |
| 4C | 31-422 | COVER PLATE (INCL W/ 31-435-K) |
| 4D | – | CAP HEAD SCREW, M6 X 10mm |
| 4E | – | SET SCREW, 1/4-20 X 5/16″ |
| 4F | 20-6990 | COUPLING ASSEMBLY |
| 4G | 20-1068 | COUPLING SPIDER |
| 5 | SSP-1917-NI | STREET ELBOW, 1/4″ NPT M X F |
| 6 | H-2008 | ADAPTER, 1/4 NPSM X NPT PLATED BRASS |
| 7 | HAV-500 | ADJUSTING VALVE |
| 8 | HA-57011 | AIR HOSE |
| 9 | 23425-282 | STREET TEE, 1/4″ NPT F X F X M |
| 11 | QSK-071 | MUFFLER & AIR STRAINER ASSEMBLY (DUAL FELT) |
| 12 | – | STRAINER CAP |
| 13 | ▲ | SCREEN |
| 14 | ▲* | FELT |
| 15 | – | STRAINER BODY |
▲ KK-5006 STRAINER SCREEN AND FILTER KIT
* KK-5001-1A AIR MOTOR REPAIR KIT
