Description
Model 30 Automatic Glass Bead Dispensing Gun
Manufacturer: Binks
Part #:
- 6277-3522-5 Model 30A (Tungsten Carbide Air Nozzle)
- 6277-3525-7 Model 30A (Stainless Steel Air Nozzle)
Description: The Binks Model 30A Spray Gun is designed specifically for the application of viscous materials such as mastics and traffic marking paints. The spray gun is a “bleeder” type and can be supplied with front or rear seating fluid nozzles.
“On-off” of the spray gun is provided by the air cylinder. It is located at the rear of the gun body. The minimum recommended air pressure to the air cylinder is 50 PSIG.
Specifications:
- Air Inlet: 1/4″ NPSM
- Material Inlet: 3/4″ NPSM
- 46SS Fluid Nozzle (0.312″ Orifice)
- Stainless Steel or Tungston Carbide Air Nozzle
- Air required: 11.5 CFM @ 50 PSI

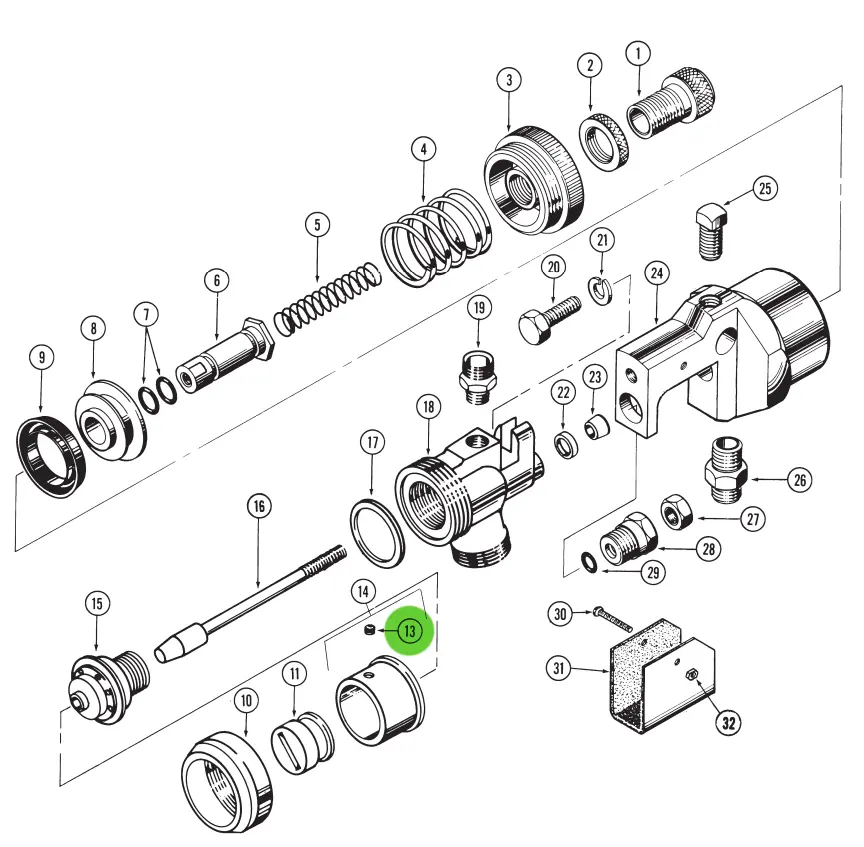

Parts and Accessories:
| Ref. No. | Part No. | Description |
| – | 54-380 | SPRAY GUN MOUNTING BRACKET |
| 1 | 54-1195 | CONTROL SCREW |
| 2 | 54-323 | CONTROL SCREW LOCKNUT |
| 3 | 54-1196 | CAP |
| 4 | 54-236 | SPRING |
| 5▲ | 54-1648 | SPRING |
| 6 | 54-1197 | PISTON ROD |
| 7▲ | 20-2369 | O-RING |
| 8 | 102-2059 | PISTON |
| 9▲ | 20-3723 | U-CUP |
| 10 | 54-864 | RETAINER RING |
| 11 | As Specified | Air Nozzle |
| 13 | 20-2456 | SCREW |
| 14 | 54-1924 | BASE ASSEMBLY |
| 15 | As Specified | FLUID NOZZLE |
| 16 | 47-482 | NEEDLE, Front Seating, Stainless Steel |
| 17▲ | 54-1246 | GASKET |
| 18 | 54-3232 | GUN HEAD |
| 19 | 54-308 | AIR CONNECTION |
| 20 | 20-702-1 | SCREW, 1/4-20 x 7/8 in. long |
| 21 | 20-1041 | LOCKWASHER |
| 22▲* | 54-3113 | RETAINER |
| 23▲* | 54-3114 | WIPER |
| 24 | – | GUN BODY |
| 25 | 54-335 | SCREW |
| 26 | 57-13 | D.M. NIPPLE, 1/4 NPS x 1/4 NPT |
| 27 | 20-301 | HEX NUT, 1/4-20 |
| 28 | 54-1198 | SCREW |
| 29 | 20-3620 | O-RING |
| 30 | 20-4827 | SCREW Rd. Hd., 6-32 x 1-1/4 in. long |
| 31 | 54-1199 | GUARD |
| 32 | 20-412 | HEX NUT, 6-32 |
* Also available in 54-3116 Wiper Kit
▲ Also available in 6-271 Repair Kit
Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
