Description
Rod and Piston Assembly for 600cc
Manufacturer: Binks
Part Number: 240-3224-600
Description: Rod and Piston Assembly for 600cc

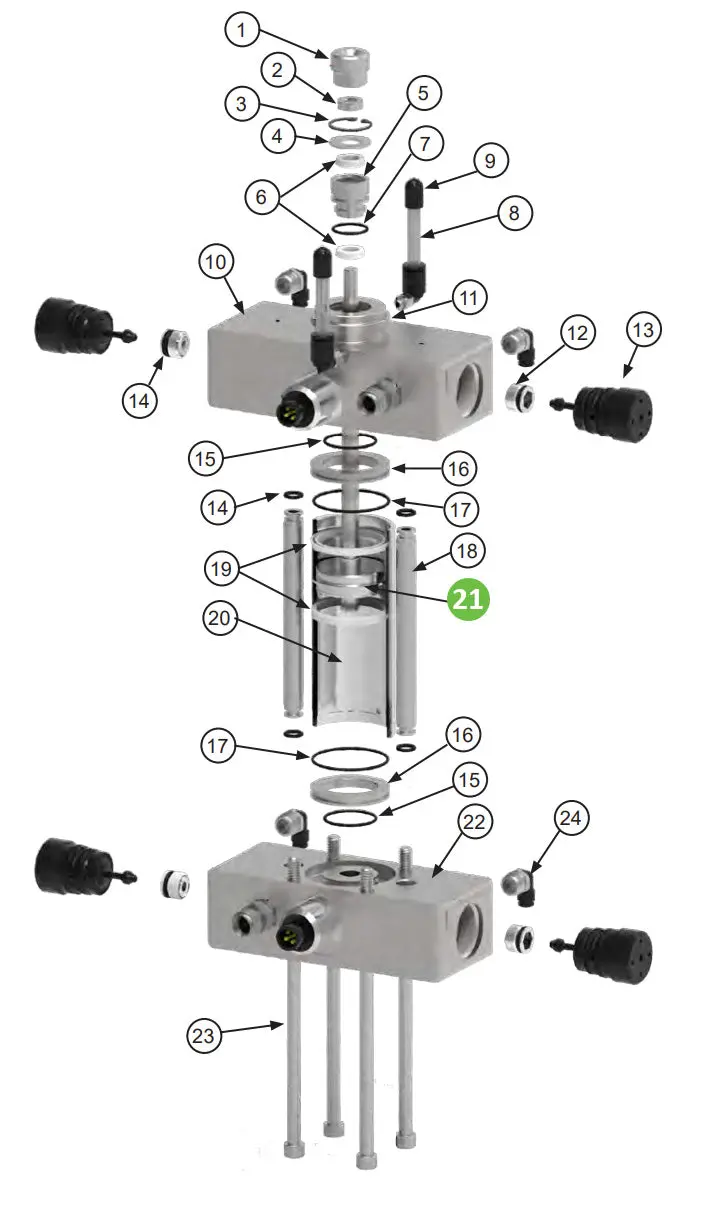

| Item No. | Part No. | Description | Qty |
| 1 | 240-3020 | Pump Rod Adapter | 1 |
| 2 | 20-6953 | Hex (Jam) Nut | 1 |
| 3 | 237-729 | Retaining Ring (Snap Ring) | 1 |
| 4 | 237-727 | Flat Washer | 1 |
| 5 | 240-3221 | Seal Holder | 1 |
| 5 | 240-3222 | Rod Guide (within Seal Holder) | 1 |
| 6 | 240-3211 | Rod Seal | 2 |
| 7 | 79001-09 | O-Ring, 2-015, solvent proof | 1 |
| 8 | FEP-0403 | Teflon Paint Hose, 1/4″ OD x 3/16″ ID, 210 psi wp | 2 |
| 9 | 240-3102 | 1/4″ ODT Cap | 2 |
| 10 | 240-5133 | Top Block | 1 |
| 11 | 20-4844 | Dowel Pin, 3/16 DIA x ½ LONG, SS | 2 |
| 12 | 77367-00 | Microvalve (MCV) Seat Assembly | 4 |
| 13 | 78949-00 | Microvalve (MCV) Assembly | 4 |
| 14 | 79001-05 | O-Ring, 2-010, KALREZ | 4 |
| 15 | 79001-21 | O-Ring, 2-020, Perfluoroelastomer | 2 |
| 16 | 240-3022 | Cylinder Adapter** | 2 |
| 17 | 79001-18 | O-Ring, 2-027, Perfluoroelastomer** | 2 |
| 18 | 240-5135 | Fluid Tube | 2 |
| 19 | 240-3212-300 240-3212-600 |
300 cc Piston Seal 600 cc Piston Seal |
2 |
| 20 | 240-3018-300 240-3018-600 |
300 cc Cylinder 600 cc Cylinder |
2 |
| 21 | 240-3224-300 240-3224-600 |
300 cc Rod and Piston Assembly 600 cc Rod and Piston Assembly |
1 |
| 22 | 240-5132 | Bottom Block | 1 |
| 23 | 7959-176C | Socket Head Cap Screw, ¼-20 x 5.5” LG, 18-8 | 4 |
| 24 | 35-5735 | Fitting, 90 swivel 5/32t x 1/8 NPTM Coated Thread | 4 |
| – | 0114-016099 | Pump Packing Lube, 250 mL | 1 |
**600 cc dispense pump only
