Description
Relief Valve
Manufacturer: Binks
Part Numbers: 101-9477-75, 101-9477-800 & 101-9477-2050
Description: Relief Valve
- 101-9477-75 = 75 PSI
- 101-9477-800 = 800 PSI
- 101-9477-2050 = 2050 PSI
Parts:

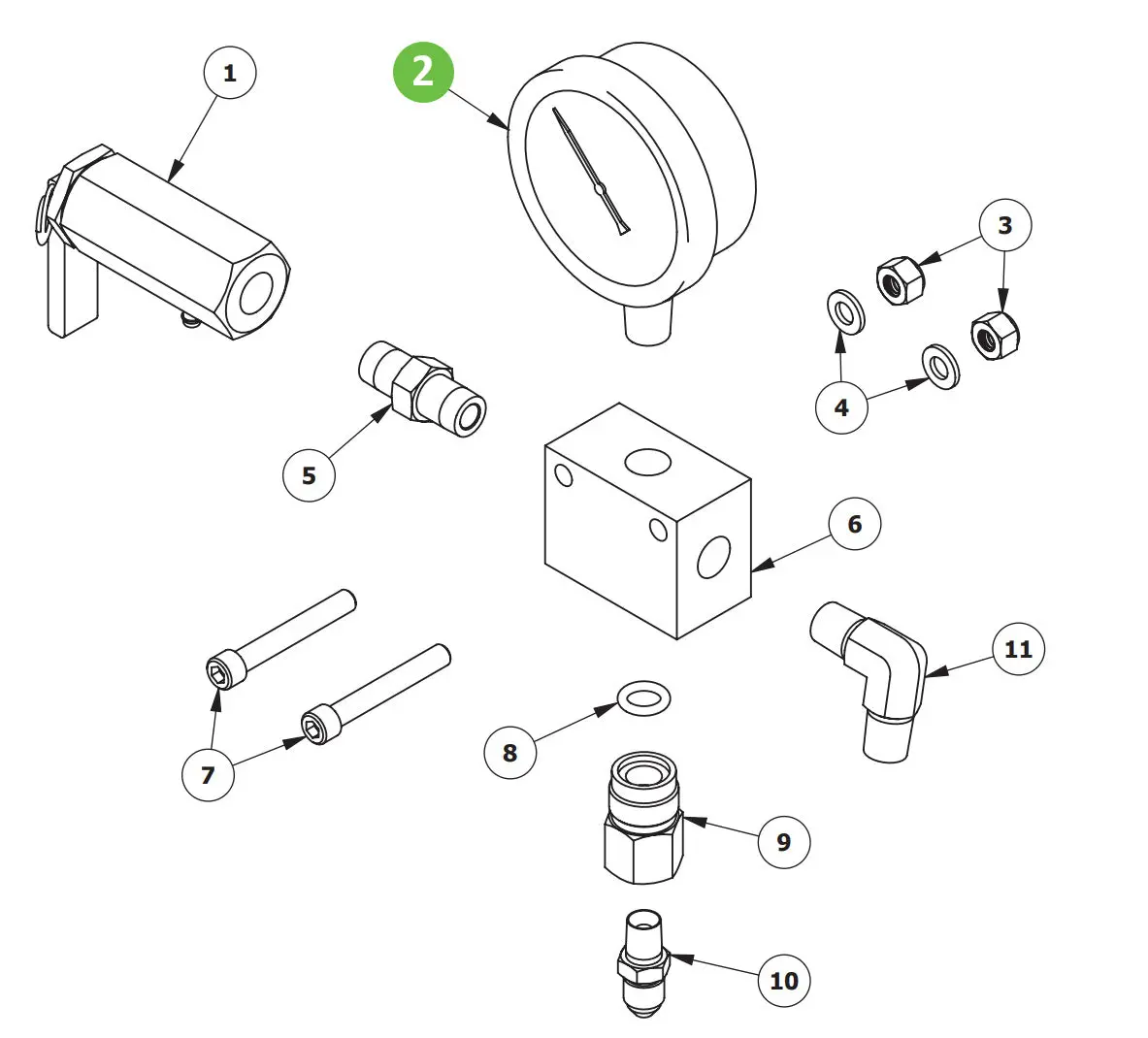

CATALYST MANIFOLD ASSEMBLIES
| Item No. | Part No. | Description | Qty |
| 1 |
101-9477-75 101-9477-800 101-9477-2050 |
RELIEF VALVE – 75 PSI (Spring Part # 101-9480-75) RELIEF VALVE – 800 PSI (Spring Part # 101-9480-800) RELIEF VALVE – 2050 PSI (Spring Part # 101-9480-2050) |
1 1 1 |
| 2 |
83-2571 107-1637 107-1433 |
GAUGE, 100 LB GAUGE, 1000 LB GAUGE, 2000 LB |
1 1 1 |
| 3 | 20-6042 | NYLOK HEX NUT | 2 |
| 4 | 20-263-1 | FLAT WASHER | 2 |
| 5 | 20-4854 | DM NIPPLE, 1/4″ NPT | 1 |
| 6 | 101-9466 | MANIFOLD | 1 |
| 7 | 20-5299 | SOCKET HEAD CAP SCREW | 2 |
| 8 | 237-101 | O-RING | 1 |
| 9 | 101-9467 | CATALYST INLET | 1 |
| 10 | 107-1449 | DM NIPPLE, 1/8″ NPT X JIC #4 | 1 |
| 11 |
20-2828 107-1640 |
MALE ELBOW, 1/4″ NPT/NPS (75 PSI Pump) MALE ELBOW, 1/4″ NPT X JIC #4 (800 & 2050 PSI Pump) |
1 |
CATALYST FLOW METER ASSEMBLY
| Item No. | Part No. | Description | Qty |
| 1 | 101-9477-75 | RELIEF VALVE – 75 PSI | 1 |
| 2 | 83-2571 | GAUGE, 100 LB | 1 |
| 3 | 101-9471 | FLOWMETER BACK PLATE | 1 |
| 4 | 20-4854 | DM NIPPLE, 1/4″ NPT | 1 |
| 5 | 101-9466 | MANIFOLD | 1 |
| 6 | 237-172 | HEX HEAD CAP SCREW | 2 |
| 7 | 20-263-1 | FLAT WASHER | 2 |
| 8 | 20-6042 | NYLOK HEX NUT | 2 |
| 9 | 20-6086 | SOCKET HEAD CAP SCREW | 4 |
| 10 | 20-2828 | ELBOW, MALE 1/4″ NPT/NPS | 1 |
| 11 | 101-9468 | UPPER TUBE ADAPTER | 1 |
| 12 | 101-5262 | SCREEN | 2 |
| 13 | 237-101 | O-RING | 3 |
| 14 | 101-9472 | FLOWMETER ROD | 2 |
| 15 | 101-5288 | TUBE ASSEMBLY | 1 |
| 16 | 101-9465 | LOWER FLOWMETER BLOCK | 1 |
| 17 | 20-2183 | BALL, 3/16″ DIA | 1 |
| 18 | 101-9467 | CATALYST INLET | 1 |
| 19 | 107-1646 | MALE ELBOW, 1/8″ NPT X JIC #4 | 1 |
CATALYST RELIEF VALVE ASSEMBLIES
| Item No. | Part No. | Description | Qty |
| 1 | 20-6901 ◊ | COTTER RING | 1 |
| 2 | 101-9482 | LEVER | 1 |
| 3 | 101-9483 | PIN | 1 |
| 4 | 101-9479 | CAP | 1 |
| 5 |
101-9480-75 101-9480-800 101-9480-2050 |
SPRING – 75 PSI SPRING – 800 PSI SPRING – 2050 PSI |
1 |
| 6 | 101-9481 | VALVE | 1 |
| 7 | 20-6864 ◊ | O-RING | 1 |
| 8 | 20-6900 ◊ | O-RING | 1 |
| 9 | 101-9484 ◊ | SCREW | 1 |
| 10 | 101-9478 | RELIEF VALVE BODY | 1 |
| 11 | 20-6902 ◊ | TUBE ADAPTER | 1 |
◊ Items are included within the 106-1280 Repair Kit.
ALL FITTINGS, VALVES, & ADAPTERS ARE NOT RETURNABLE. ALL SALES ARE FINAL
Literature:
- Pump Flow Meter Manual
Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
