This Is The Newest Spray Gun

The Anest Iwata WIDER2

Manufacturer: Anest Iwata

Part Number: 200XX

Description: The key points in industrial coating products are quality and repeatability.

We have always created the ideal spray guns and adapted to diverse applications and evolving paints. Now, we have developed the new WIDER1 and WIDER2 models, which go further than ever in out pursuit of these key points. Our spray guns have penetrated markets around the world since the W-200 made its debut in 2000, and the W-101 in 2008. We have distilled this experience and expertise that we have accumulated over those years into this new WIDER model.

Feature 1—Design

Ergonomic Design with a Focus On Functionality

In the course of applying an ergonomic design throughout, we also achieved a 5g weight reduction. Every adjustment knob is tapered, with deeper grooves, providing a surer grip for easier fine adjustments. We also built a bushing into the back of the needle valve spring to make paint output adjustment smoother. The tip of the trigger has a smoother shape for easier operation when applying lower paint volumes.

Feature 2—Maintenance

New Models Make Maintenance Easier

The new WIDER is designed for easier maintenance. We changed the thread pitch of the cap from 1.0 mm to 1.5 mm so that it can be screwed on with 1.5 turns, which is half as many as before. Also, the back end of the needle valve is reshaped to make it easier to remove and attach. By adding straight, threadless sections to the air and fluid nipples, we made it easier to attach the connectors.

Feature 3—Feel

Linear Response Pattern Adjustment Set

The previous pattern adjustment set reached around 45% of the full pattern width with 1 turn, around 80% with 1.5 turns, and almost 100%, or nearly fully open, with 2 turns. Our newly-developed pattern adjustment set now provides around 35% with 1 turn, around 50% with 1.5 turns, and around 70% with 2 turns. This linear response to adjustment is intuitively easier to operate.

Feature 4—Repeatability

Revised Air Valve Seat Sets For A More Consistent Installation

Previous air valve seat sets consisted of a combination of large and small orifices in the air channel, so installing it into place could produce differences in air volume due to its position. This difference could potentially influence paint output and pattern width. We revised the design for the new WIDER, making the orifices much larger and more uniform so that installing the air valve seat set produces more repeatable results. This enables even more consistent application.

Air Cap Specifications:

Air Cap	Atomization	Application
K1	General	Wood and furniture, metals
K2	High	Automotive refinishing, Wood and furniture, plastics
R1	General	Metals, Wood and furniture, medium-viscosity paints
R2	High	Metals, Wood and furniture, medium-viscosity paints
W1	General	Metals, Wood and furniture, anti-corrosion treatment for steel frames, high-viscosity paints
G2P	High	Large parts and vehicles, line painting



Technical Data

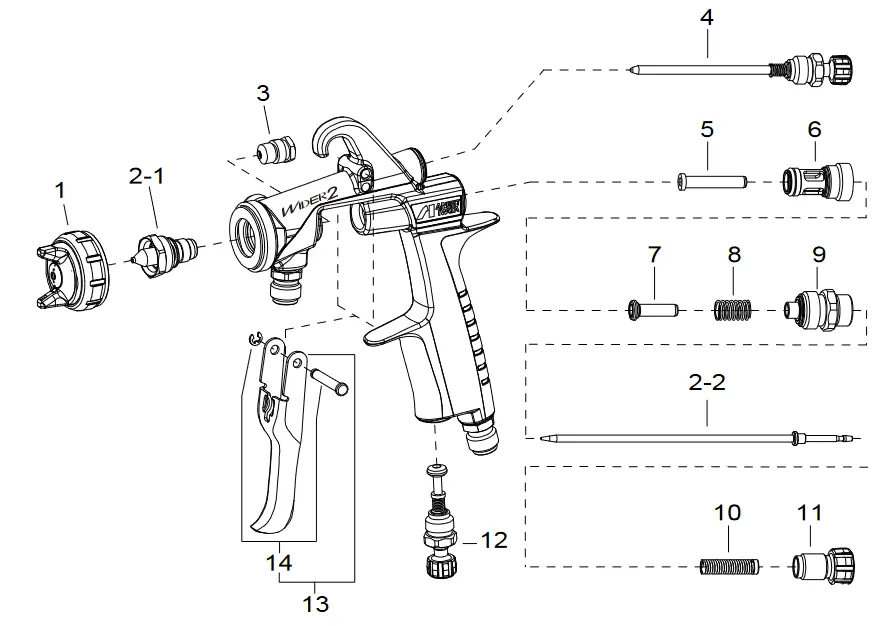

Spare Parts

• Air Cap Set

• Nozzle + Needle Set

• 93810620 Needle Packing Cartridge—Pressure

• 93765610 Needle Packing Cartridge—Siphon/Gravity

• 93011630 Pattern Adjustment Set

• 93001790 Air Valve Shaft—WS-200

• 93001640 Air Valve Seat Set—WS-200

• 93001690 Air Valve—WS-200

• 93001700 Air Valve Spring—WS-200

• 93012630 Fluid Adjustment Guide

• 93002820 Fluid Needle Spring—WS-200

• 93012650 Fluid Adjustment Knob

• 93012660 Air Adjustment Set

• 93014500 Trigger Assembly



WIDER2 Pressure Gun Parts & Accessories

• 93011570 Nozzle + Needle Set

• 93011670 Air Cap Set—G2P

WIDER2 Siphon Gun Parts & Accessories

• 93011680 ø 1.5 (K1, K2) Nozzle +Needle Set

• 93011730 ø 1.8 Nozzle + Needle Set

• 93011740 ø 2.0 (R1, R2) Nozzle + Needle Set

• 93011810 ø 2.5 Nozzle + Needle Set

• 93011690 K1 Air Cap Set

• 93011710 ø 1.5 K2 & ø 1.8 Air Cap Set

• 93011750 R1 Air Cap Set

• 93011790 R2 Air Cap Set

• 93011820 W1 Air Cap Set

WIDER2 Gravity Gun Parts & Accessories

• 93011680 ø 1.5 (K1) Nozzle + Needle Set

• 93011730 ø 1.8 Nozzle + Needle Set

• 93011740 ø 2.0 (R1, R2) Nozzle + Needle Set

• 93011810 ø 2.5 Nozzle + Needle Set

• 93011690 K1 Air Cap Set

• 93011710 ø 1.5 (K2), ø 1.8 Air Cap Set

• 93011750 ø 2.0 (R1) Air Cap Set

• 93011790 ø 2.0(R2) Air Cap Set

• 93022820 ø 2.5 (W1) Air Cap Set
