Anest Iwata WA-M220 Spare Parts

Manufacturer: Anest Iwata

Part #: See Below

Description: See list below for reference number, part number, and description. Manifold Units (Ref.#12) are purchased separately and are linked in the description.

*Note: The WA-M220 and WA-M220L share all of the same components besides air cap, nozzle, and needle. These components for the WA-M220L are located at the bottom*

Manual

 Ref.# Part No. Description
1 93006500 Air Cap Set (fluid nozzle sizes 0.4 – 1.0mm)
93006460 Air Cap Set (fluid nozzle sizes 1.5 – 1.6mm)
2 93006850 Fluid Nozzle-Needle Set (0.4mm)
93006860 Fluid Nozzle-Needle Set (0.6mm)
93006660 Fluid Nozzle-Needle Set (0.8mm)
93006670 Fluid Nozzle-Needle Set (1.0mm)
93006680 Fluid Nozzle-Needle Set (1.5mm)
93006870 Fluid Nozzle-Needle Set (1.6mm)
2-1 Fluid Nozzle
2-2 Fluid Needle
3-1 96639506 O-Ring
3-2 93570630 Plug
3-3 93570640 O-Ring
3-4 93765610 Needle Packing Cartridge
3-5 93008640 Spray Gun Unit Seal
3-6 96365043 Hex Socket Head Bolt
4 93008650 Piston Set
4-1 93903441 Piston Packing Set
4-2 96631005 O-Ring
4-3 Air Valve (Included with Ref.#4)
5 93514580 Needle Spring
6 93513580 Piston Spring
7 93840581 Fluid Adjustment Set
7-1 Ball (Included with Ref.#7)
7-2 93104420 Fluid Adjustment Spring
8 93010400 Filler Nut Block
9 93009680 Wing Bolt Set
10 93009690 Washer
11 93009620 Pattern Adj. Set
12 5488 Manifold Unit
13 93009580 Turn Shaft Washer
14 W3COM2051 Retaining Ring
15 93009640 Manifold Seal

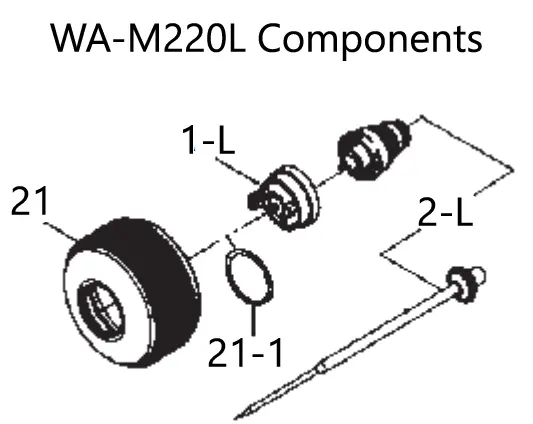

WA-M220L Components:

 1-L Air Cap (included in Ref.# 21)
21 93984880 Air Cap Cover Set
21-1 93512600 Packing
2-L 93984890 Small Nozzle-Needle Set (0.4mm)
93984900 Small Nozzle-Needle Set (0.6mm)
93984910 Small Nozzle-Needle Set (0.8mm)
93984920 Small Nozzle-Needle Set (1.0mm)
93984930 Small Nozzle-Needle Set (1.2mm)
