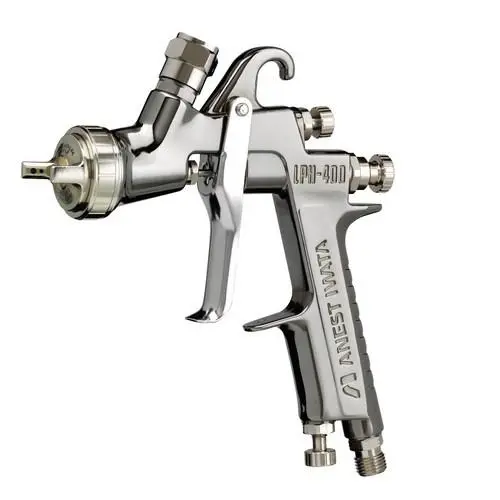

Anest Iwata LPH-400-LV Low-Pressure Gravity-Fed Spray Gun

Description

Anest Iwata LPH400-LV Gravity Spray Gun

Manufacturer: Anest Iwata

Part #: 93874602

Description: High-performance center post gravity feed HVLP spray gun with low air consumption and superior atomization utilizing our LV technology and our tulip inspired spray pattern. The gravity-feed design provides for easy cleanup and reduces material waste.

Features:

• Patented LV Technology with split nozzle for increased material savings
• Ideal for general purpose use
• HVLP with low operating air pressure
• Quality surface for easy cleaning
• Minimal wear parts for easy maintenance
• Compatible with the 3M PPS cup system (Adapter #2)

Gun Break Down

Spare Parts

• 3-1 93660300 AIR NIPPLE 1/4″
• 3-2 93650531 FLUID NIPPLE M16X1.5
• 4 93842601 PATTERN ADJ. SET
• 5 93843530 AIR VALVE SEAT SET
• 5-1 96638008 O RING
• 6 93591530 AIR VALVE
• 7 93719530 AIR VALVE SPRING
• 8 93844532 FLUID ADJUST GUIDE SET
• 9 93593530 FLUID NEEDLE SPRING
• 10 93594532 FLUID ADJUST KNOB
• 11 93935430 AIR VALVE SHAFT
• 12 93845531 AIR ADJUST SET
• 13 93667360 TRIGGER STUD
• 14 93517600 TRIGGER
• 15 93912030 STOPPER (2 PCS./1PK.)
• 16 93765610 CARTRIDGE PACKING
• 17 93515500 FILTER

Accessories

• 93708240 AIR CAP PACKING (WHITE)
• 93512600 AIR CAP PACKING (BLACK)
• 2950 MK5 MAINTENANCE KIT
• 5650 REPAIR SERVICE KIT (includes: 5-1, 7, 9, 13, 15, 16)
• 2995 TEST CAP GAUGE SET “LPH100-LV4”
• 2996 TEST CAP GAUGE SET “LPH100-LVB”
• 2998 TEST CAP GAUGE SET “LPH100-LV4X”

 3M PPS 2.0 Cup System – Brochure

 Anest Iwata Spray Gun Reference Chart:

Model:	Fluid Nozzle Size (mm):	Atomizing Pressure (psi):	Air Volume (CFM):	Pattern Width (in):
LPH-100	0.8 – 1.8	14.3 to 50	7 – 18.7	6.7 – 10.6
LPH-200	0.8 – 1.4	28	13.5 – 17.7	11.8 – 13.8
LPH-2003	1 – 1.4	28	17.7	10.7 – 12.5
LPH-300	1.2 – 2.0	15 to 19	7.1 – 8.5	8 – 9
LPH-400	1.2 – 1.8	14 to 16	8.3 – 9.5	10.2 – 13.2
LPH-440	1.4 – 2.5	20	8.9	9.8 – 11.4

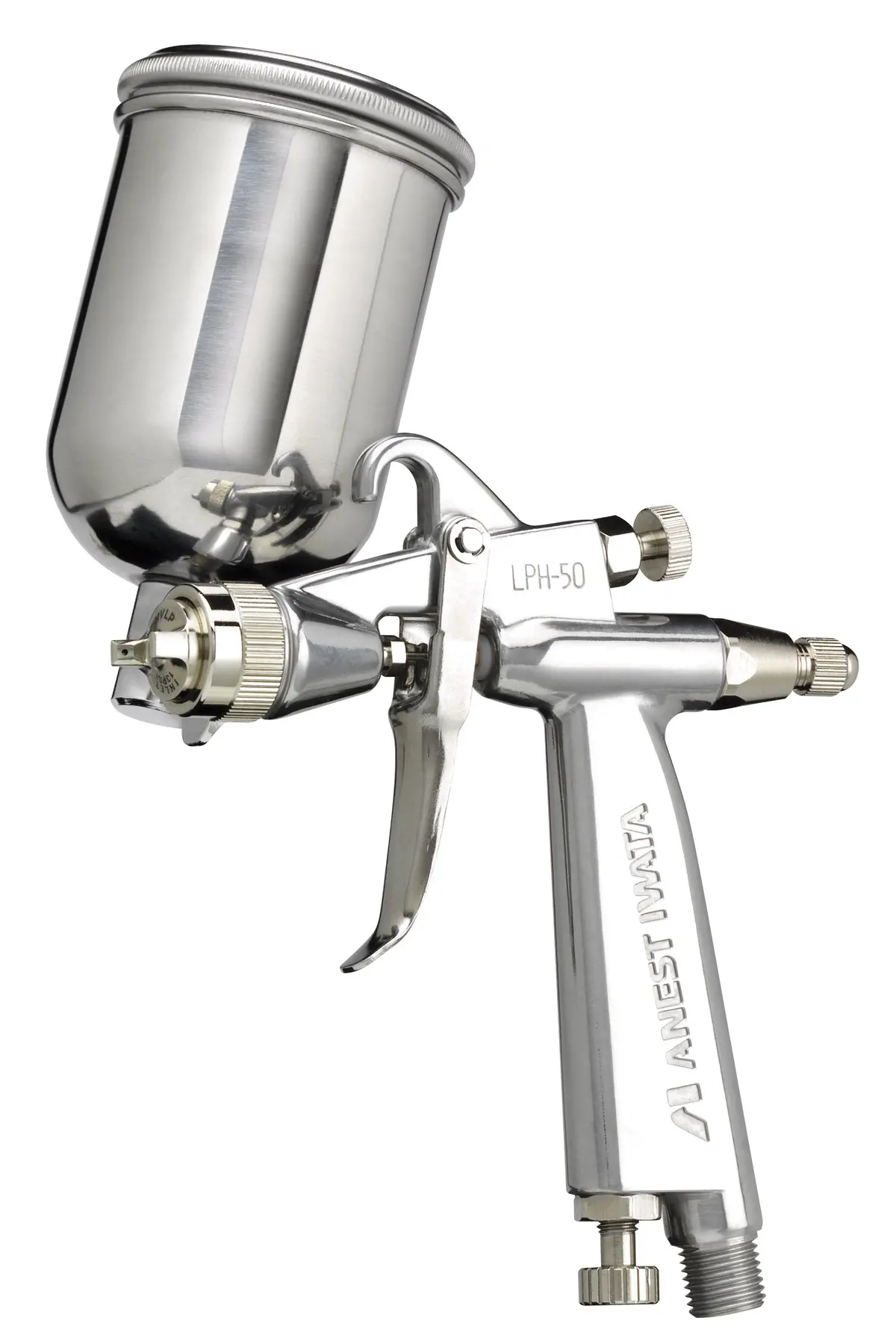

LPH-50	0.4 – 1.0	13	1.8	1.6 – 3.9
LPH-80	0.4 – 1.2	13 – 14	1.8 – 2.1	1.6 – 6
RG-3	0.4 – 1.0	36	1.1 – 1.8	1 – 1.4
W-101	0.8 – 1.8	28 – 35	2.6 – 9.5	4.7 – 9.4
W-200	1.2 – 2.5	42 – 50	9.2 – 19.8	11 – 15.7
W-2003	1.2	42	19.8	15.7
W-300	0.8 – 1.6	28 – 35	5.1 – 7.9	3.9 – 8.1
W-400	1.2 – 2.5	29 – 42	9.9 – 12.7	9.8 – 13.4
W-400LV	1.2- 1.8	20	10.5	9.8 – 12.8
