Description

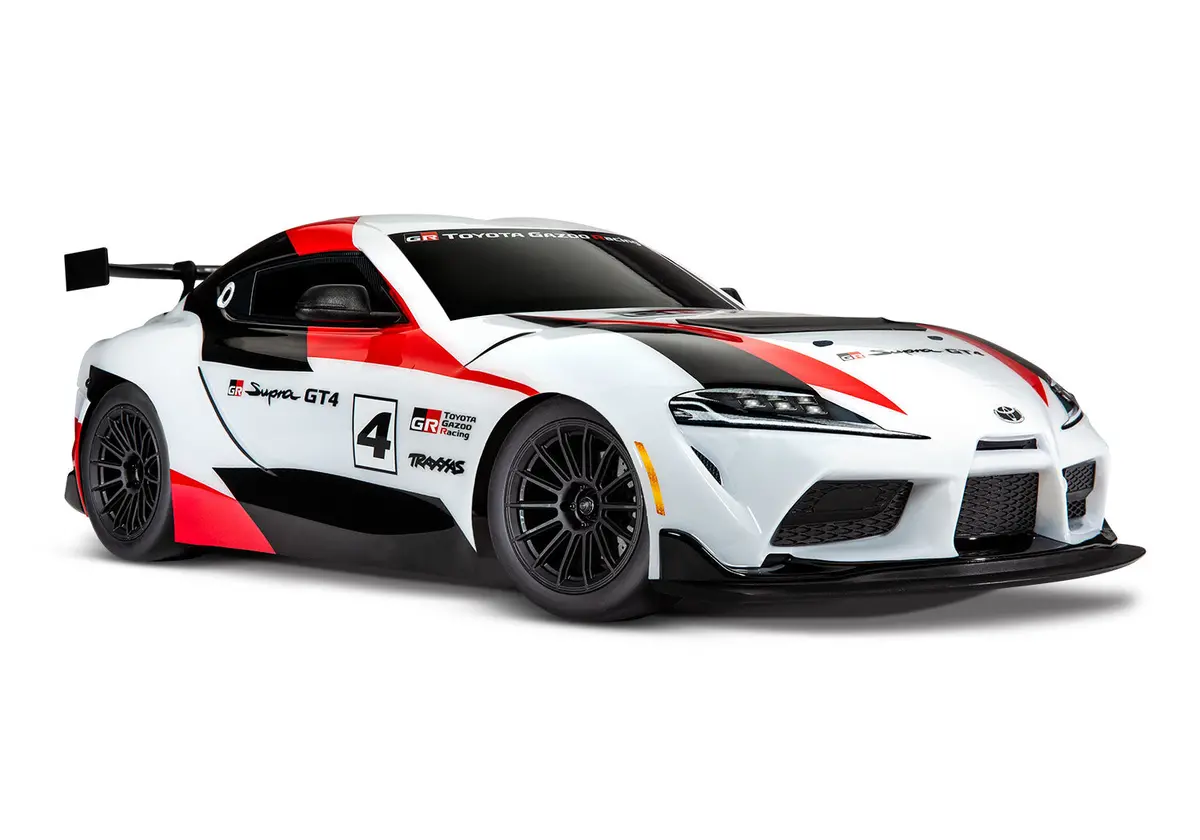

4-Tec Toyota GR Supra GT4 BL-2s

MODEL SPECS

Model Name:	Toyota GR Supra GT4
Model Type:	On-Road Cars
Top Speed:	35+ mph
Skill Level:	1
Scale:	1/10
Length:	19.3 inches (490 mm)
Width:	8.6 inches (219 mm)
Height:	5.6 inches (141 mm)
Weight:	3.92 lbs (1.78 kg)
Front Track:	8.0 inches (204 mm)
Rear Track:	8.0 inches (204 mm)

Wheelbase:	10.7 inches (272 mm)
Ground Clearance:	0.5 inches (14 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Single speed direct drive
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Pitch:	48
Servo:	2075 digital high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel transmitter
Battery Compartment Specs:	174 mm X 48 mm X 23 mm or 26 mm

MOTOR SPECS

Motor Name:	BL-2s 3300 kV
Motor Type:	Sensorless brushless
Motor Weight:	7.51 ounces (213 g)
Motor Length:	3.15 inches (80 mm)
Motor Diameter:	1.42 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Traxxas Quick Connect Motor Plug

ESC SPECS

ESC Name:	BL-2s Electronic Speed Control
ESC Type:	Brushless
ESC Case Size:	1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
ESC Weight:	3.07 ounces (87 g)
Motor Connectors:	Traxxas Quick Connect Motor Plug
Battery Connectors:	Traxxas High Current Connector

Includes:

• 4-Tec Toyota GR Supra GT4
• TQ 2.4 GHz Radio System
• Quick Start Guide
• Maintenance Tools

Needed To Complete:

• (1) 2S (7.4V) LiPo Battery w/Traxxas iD
• (1) Compatibe Charger
• (4) AA Batteries for Transmitter

Specifications:

Scale	1:10
Drive	4WD
Power Source	2S LiPo
Length	19.29in (490mm)
Wheelbase	10.71in (272mm)
Width	8.62in (219mm)
Height	5.55in (141mm)
Weight	62.79oz (1780g)
Electronics
Motor:	Brushless – Sensorless
ESC	Brushless – Sensorless
Connector	Traxxas iD
Servo	Standard
Wheels
Front	2.0 in
Rear	2.0 in
Hex	12mm
Tires
Front	Racing Slicks
Rear	Racing Slicks
Assembly Level	RTR
